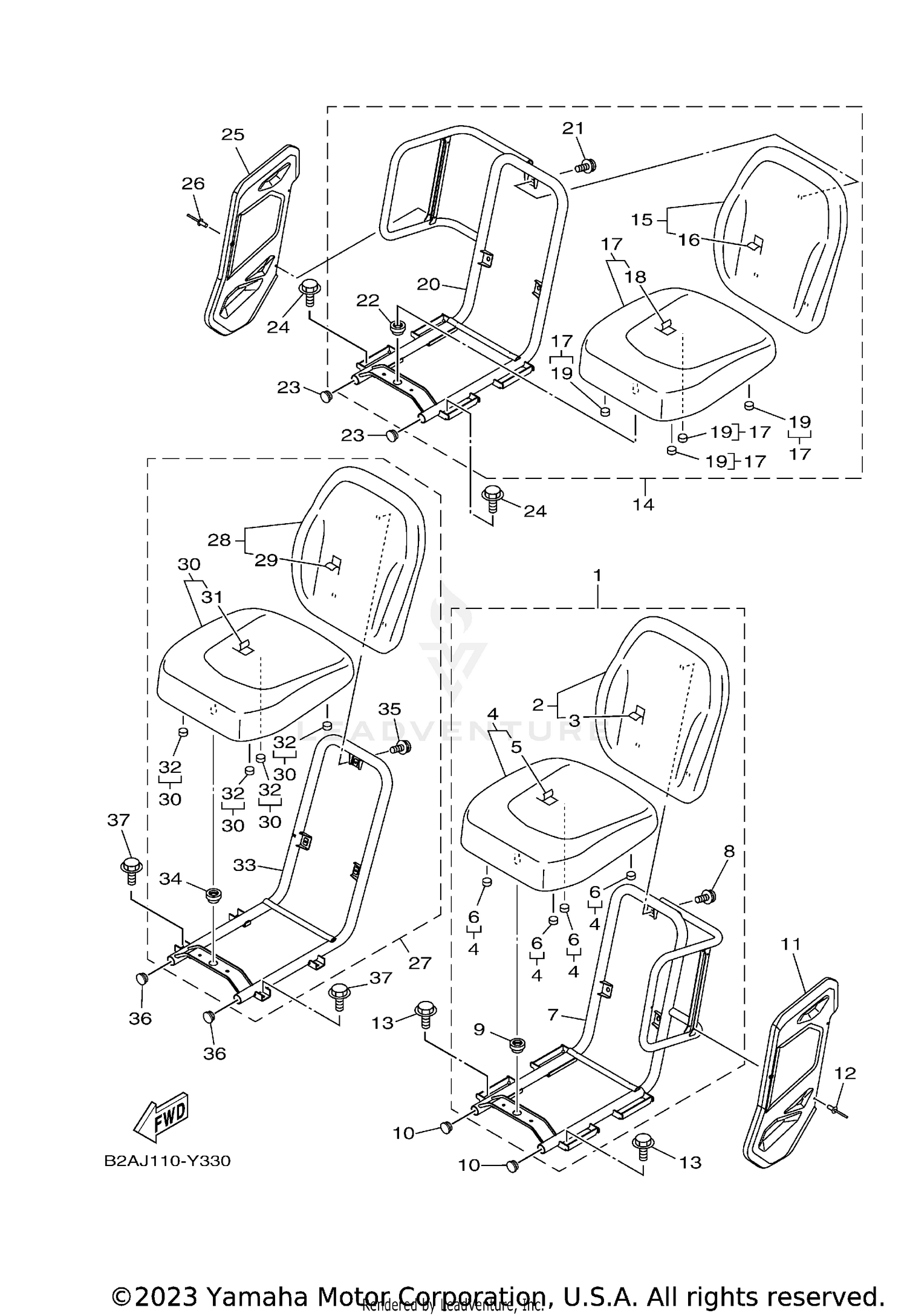

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT 1
2PG-F7498-02-00
|
$280.99 | ||
|
Unavailable |
|||
|
#2
SEAT BACK ASY
1XD-F4790-01-00
|
$485.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER,SINGLE SEAT
1XD-F4711-01-00
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT ASSY
1XD-F4700-01-00
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER,DOUBLE SEAT
1XD-F4731-01-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, SEAT
1XD-F4723-00-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
. .FRAME, SEAT 1
1XD-F473C-01-00
|
$299.99 | ||
|
Unavailable |
|||
|
#8
BOLT, SEAT FITTING
2PG-F4739-00-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
1XD-F4742-00-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG
2HC-F2417-00-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER,2
1XD-F475X-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RIVET, BLIND
90267-489U9-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE
95812-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT 2
2PG-F7499-02-00
|
$341.99 | ||
|
Unavailable |
|||
|
#15
SEAT BACK ASY
1XD-F4790-01-00
|
$485.99 | ||
|
Unavailable |
|||
|
#16
COVER,SINGLE SEAT
1XD-F4711-01-00
|
$185.99 | ||
|
Unavailable |
|||
|
#17
SEAT ASSY
1XD-F4700-01-00
|
$274.99 | ||
|
Unavailable |
|||
|
#18
COVER,DOUBLE SEAT
1XD-F4731-01-00
|
$161.99 | ||
|
Unavailable |
|||
|
#19
DAMPER, SEAT
1XD-F4723-00-00
|
$2.10 | ||
|
Unavailable |
|||
|
#20
. .FRAME, SEAT 2
1XD-F473D-01-00
|
$274.99 | ||
|
Unavailable |
|||
|
#21
BOLT, SEAT FITTING
2PG-F4739-00-00
|
$1.70 | ||
|
Unavailable |
|||
|
#22
GROMMET
1XD-F4742-00-00
|
$4.00 | ||
|
Unavailable |
|||
|
#23
PLUG
2HC-F2417-00-00
|
$2.35 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
95812-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
COVER,2
1XD-F475X-01-00
|
$42.99 | ||
|
Unavailable |
|||
|
#26
RIVET, BLIND
90267-489U9-00
|
$4.30 | ||
|
Unavailable |
|||
|
#27
SEAT 3
2PG-F749A-02-00
|
$389.99 | ||
|
Unavailable |
|||
|
#28
SEAT BACK ASY
1XD-F4790-01-00
|
$485.99 | ||
|
Unavailable |
|||
|
#29
COVER,SINGLE SEAT
1XD-F4711-01-00
|
$185.99 | ||
|
Unavailable |
|||
|
#30
SEAT ASSY
1XD-F4700-01-00
|
$274.99 | ||
|
Unavailable |
|||
|
#31
COVER,DOUBLE SEAT
1XD-F4731-01-00
|
$161.99 | ||
|
Unavailable |
|||
|
#32
DAMPER, SEAT
1XD-F4723-00-00
|
$2.10 | ||
|
Unavailable |
|||
|
#33
. .DAMPER
1XD-F473Y-01-00
|
$232.99 | ||
|
Unavailable |
|||
|
#34
GROMMET
1XD-F4742-00-00
|
$4.00 | ||
|
Unavailable |
|||
|
#35
BOLT, SEAT FITTING
2PG-F4739-00-00
|
$1.70 | ||
|
Unavailable |
|||
|
#36
PLUG
2HC-F2417-00-00
|
$2.35 | ||
|
Unavailable |
|||
|
#37
BOLT, FLANGE
95812-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Unavailable |
|||
