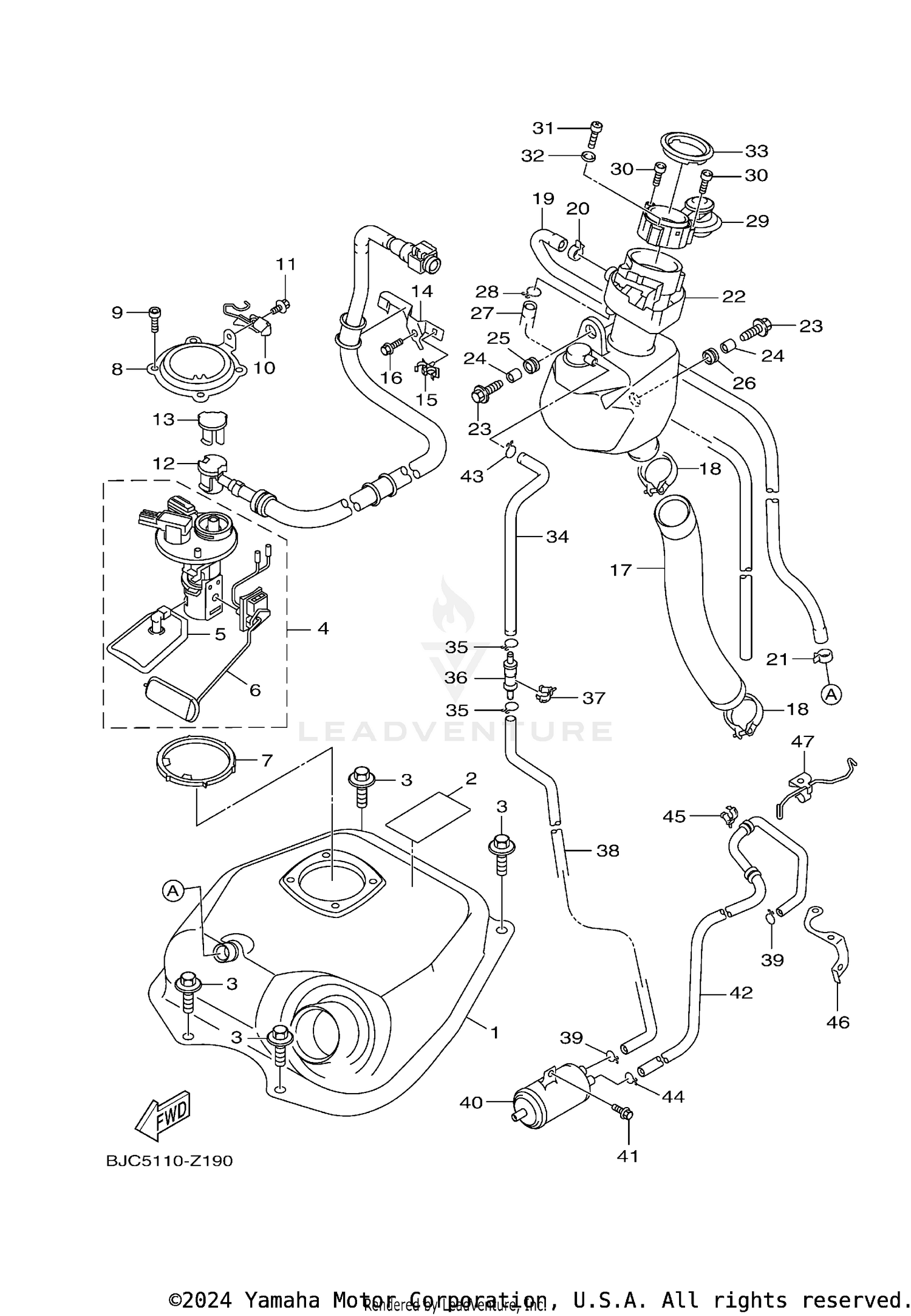

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
B8R-F4110-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#2
PROTECTOR
5ML-F117G-00-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-068B4-00
|
$1.65 | ||
|
Unavailable |
|||
|
#4
FUEL PUMP COMP.
B8R-E3907-01-00
|
$198.99 | ||
|
Unavailable |
|||
|
#5
. .FILTER
1SH-E3915-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#6
. .SENDER
B8R-H5752-01-00
|
|||
|
Unavailable |
|||
|
#7
SEAL
1DB-F414G-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, FUEL PUMP
B8R-F4491-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
91312-05010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, FUEL PUMP
B8R-F4491-10-00
|
$7.49 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
95802-06010-00
Superseded by 95812-06010-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, FUEL 1
B8R-E3971-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#13
CLAMP 1
B8R-F4135-00-00
|
$0.85 | ||
|
Unavailable |
|||
|
#14
HOLDER
B8R-F419A-00-00
|
$4.25 | ||
|
Unavailable |
|||
|
#15
CLAMP
90464-16803-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE DEEP RECESS
95E32-06012-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE 6
BJC-F4316-00-00
|
$92.99 | ||
|
Unavailable |
|||
|
#18
HOSE CLAMP ASSY
90450-55803-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE 7
BJC-F4317-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#20
CLIP
90467-18185-00
|
$3.40 | ||
|
Unavailable |
|||
|
#21
CLIP
90467-14806-00
|
$1.00 | ||
|
Unavailable |
|||
|
#22
SUB FUEL TANK
BJC-F4280-00-00
|
$162.99 | ||
|
Unavailable |
|||
|
#23
BOLT, WITH WASHER
90119-06864-00
|
$1.75 | ||
|
Unavailable |
|||
|
#24
COLLAR
90387-07598-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
GROMMET
90480-18290-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
GROMMET
90480-01326-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIPE, OVERFLOW
B8R-F4318-00-00
|
$4.25 | ||
|
Unavailable |
|||
|
#28
CLIP
90467-12052-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CAP ASSY
BJC-F4602-00-00
|
$80.99 | ||
|
Unavailable |
|||
|
#30
SCREW, FLAT FILLISTER
90155-04800-00
|
$1.40 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN HEAD
98507-04010-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
WASHER
92907-04600-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
CAP
B8R-F467E-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#34
PIPE 3
BJC-F4313-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#35
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
ROLL OVER VALVE ASSY
5ML-F4180-20-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP 2
BF9-F4136-00-00
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE 4
BJC-F4314-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#39
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#40
CANISTER ASSY
B2T-F4170-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#41
BOLT
90109-06202-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIPE 11
BJC-F4322-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#43
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#44
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP
90464-10800-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#46
HOLDER, WIRE 2
BJC-F637H-00-00
|
$3.00 | ||
|
Unavailable |
|||
|
#47
HOLDER, FUEL PIPE
BJC-F1374-00-00
|
$8.49 | ||
|
Unavailable |
|||
