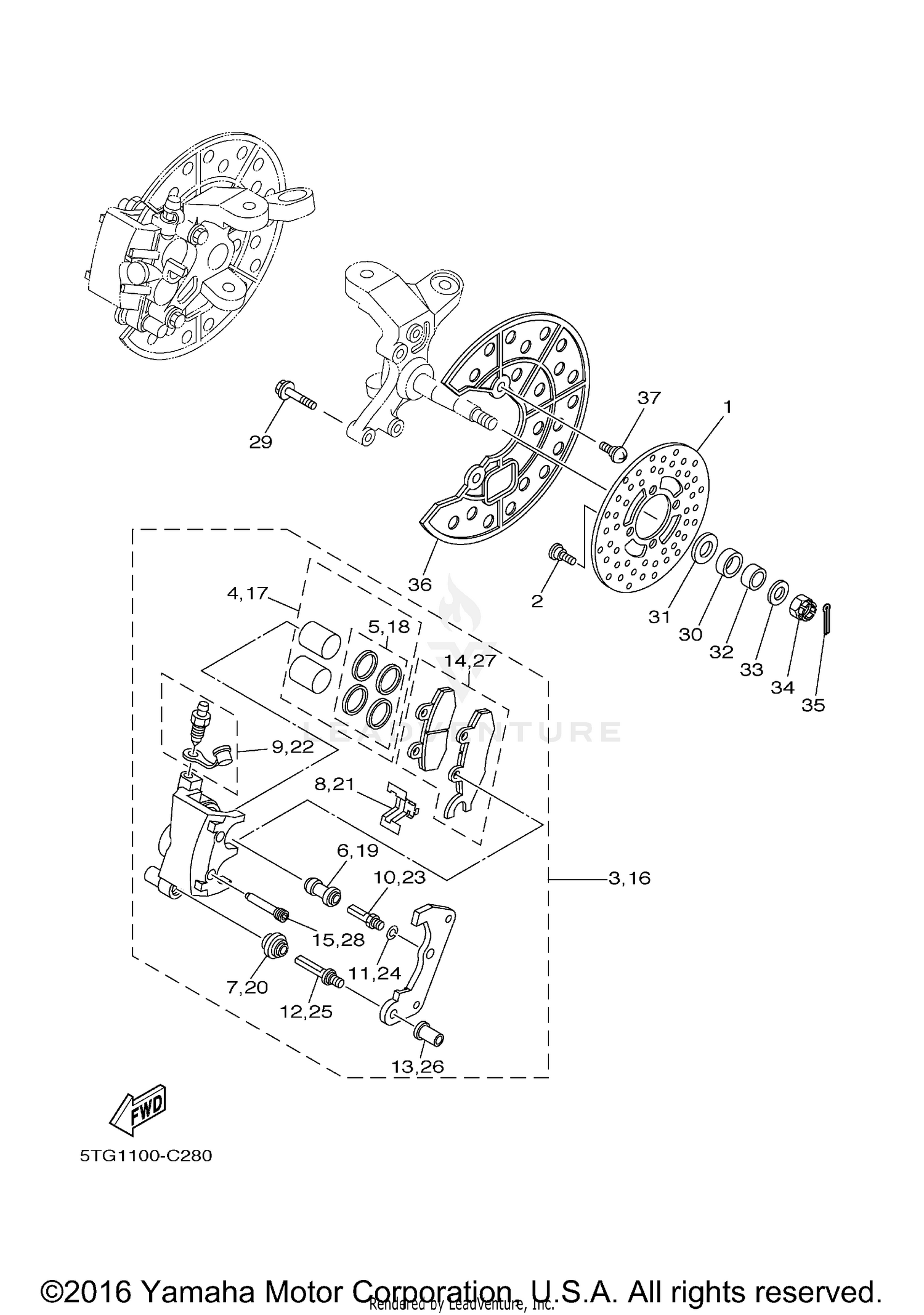

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE (LEFT)
3GD-2582T-00-00
Superseded by 3GD-2582T-10-00
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90149-08268-00
Superseded by 90109-08087-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY (LEFT)
5TG-2580T-00-00
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
5TG-W0057-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
3LC-W0047-50-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT 2
1UY-25937-51-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOOT, CALIPER
3JD-25917-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SUPPORT, PAD
3JD-25919-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
1UY-25926-51-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
1UY-25938-51-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT
3JD-25926-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
3JD-25961-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRAKE PAD KIT
5TG-W0045-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, PAD
5TG-25924-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CALIPER ASSY (RIGHT)
5TG-2580U-00-00
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PISTON ASSY, CALIPER
5TG-W0057-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#18
CALIPER SEAL KIT
3LC-W0047-50-00
|
$63.99 | ||
|
Unavailable |
|||
|
#19
BOOT 2
1UY-25937-51-00
|
$15.49 | ||
|
Unavailable |
|||
|
#20
BOOT, CALIPER
3JD-25917-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#21
SUPPORT, PAD
3JD-25919-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#22
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#23
BOLT
1UY-25926-51-00
|
$4.85 | ||
|
Unavailable |
|||
|
#24
WASHER, SPRING
1UY-25938-51-00
|
$9.49 | ||
|
Unavailable |
|||
|
#25
BOLT
3JD-25926-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#26
NUT
3JD-25961-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
BRAKE PAD KIT
5TG-W0045-10-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, PAD
5TG-25924-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE
90105-08520-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-20005-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
90201-204R5-00
Superseded by 90201-20279-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-150R1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90201-14586-00
Superseded by 90201-14220-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, COTTER
91401-30025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
RING, WHEEL 1
5TG-2514A-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, BINDING
90154-06014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
