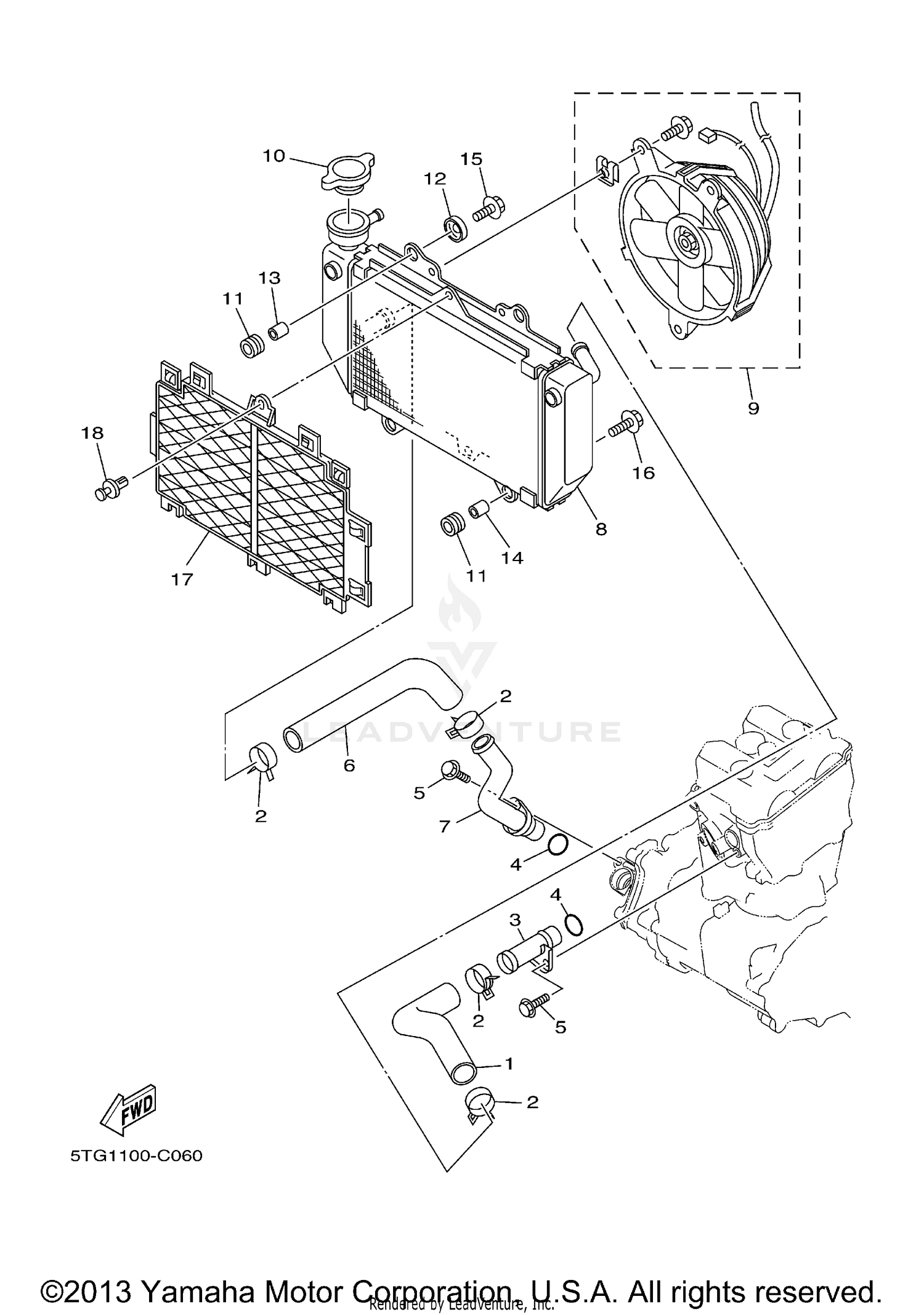

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE 1
5TG-12576-00-00
|
$18.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
CLIP
90467-23109-00
Superseded by 90467-23067-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE 1
5TG-12481-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-16500-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
HOSE 2
5TG-12577-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE 2
5TG-12482-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RADIATOR ASSY
5TG-12461-00-00
|
$433.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BLOWER ASSY
5TG-12405-00-00
|
$388.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, RADIATOR
5SL-12462-00-00
Superseded by 5SL-12462-01-00
|
$35.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GROMMET
90480-15235-00
Superseded by 90480-12475-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
90209-06174-00
Superseded by 90209-06012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-0714B-00
Superseded by 90387-07020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE
95807-06025-00
Superseded by 95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, RADIATOR
5TG-12467-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#18
RIVET
90269-07076-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
