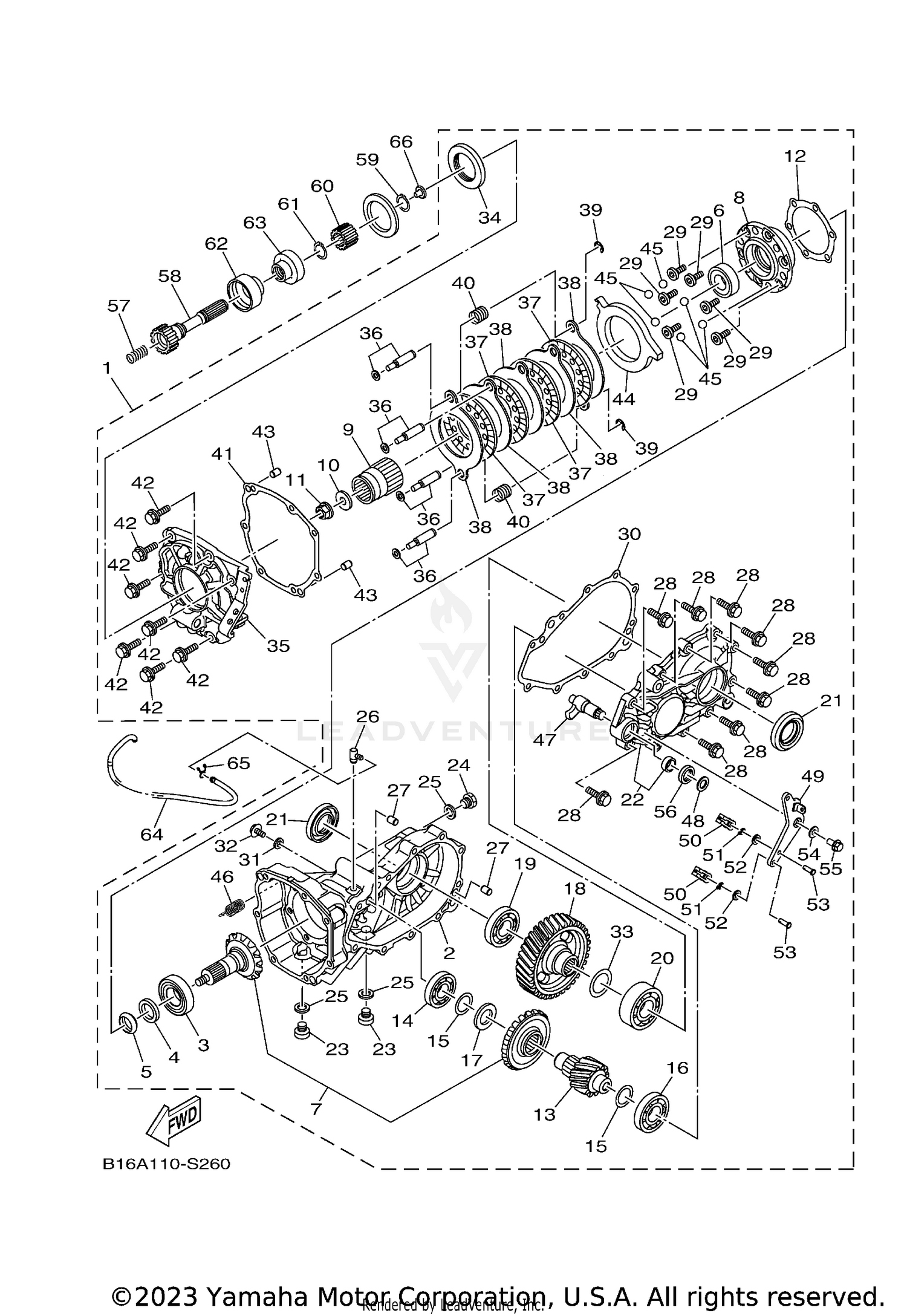

Drive Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR AXLE GEAR CASE ASSY
B16-46101-10-00
|
$2,382.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REAR AXLE HOUSING COMP.
B16-46540-00-00
|
$212.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93332-00046-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-25634-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, EXPANSION
3B4-46129-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93332-00053-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING GEAR SET
3B4-461A0-00-00
|
$473.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOUSING, PINION BEARING
B16-46144-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COUPLING
B16-46126-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-12029-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-12005-00
Superseded by 90179-12325-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM, DRIVE PINION (0.30T)
B16-46127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM, DRIVE PINION (0.35T)
B16-46127-10-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM, DRIVE PINION (0.40T)
B16-46127-20-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM, DRIVE PINION (0.45T)
B16-46127-30-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM, DRIVE PINION (0.50T)
B16-46127-40-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM, DRIVE PINION (0.25T)
B16-46127-50-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, PINION 1
3B4-46316-00-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-205U0-00
Superseded by 93306-205U1-00
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SHIM, THRUST (0.25T)
3B4-46119-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM, THRUST (0.30T)
3B4-46119-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM, THRUST (0.35T)
3B4-46119-20-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM, THRUST (0.40T)
3B4-46119-30-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM, THRUST (0.45T)
3B4-46119-40-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM, THRUST (0.50T)
3B4-46119-50-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93306-30534-00
Superseded by 93306-30560-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM,THRUST (4.5T)
3B4-4621F-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM,THRUST (4.8T)
3B4-4621F-10-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM,THRUST (5.1T)
3B4-4621F-20-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM,THRUST (5.4T)
3B4-4621F-30-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, WHEEL 1
3B4-46326-01-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93306-00704-00
Superseded by 93306-00702-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING
93306-207U0-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93102-35031-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
REAR AXLE HOUSING COMP. 2
B16-46550-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLUG, STRAIGHT SCREW
90340-14002-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG, STRAIGHT SCREW
90340-14029-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
214-11198-01-00
|
$3.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BREATHER
5UG-15371-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, DOWEL
93610-14002-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95822-08035-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90109-08237-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
GSKT., CASE
B16-4631A-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
90201-08087-00
|
$3.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE
95022-08012-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SHIM (0.25T)
3B4-46344-00-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#33
SHIM (0.30T)
3B4-46344-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SHIM (0.35T)
3B4-46344-20-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#33
SHIM (0.40T)
3B4-46344-30-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#33
SHIM (0.45T)
3B4-46344-40-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#33
SHIM (0.50T)
3B4-46344-50-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
OIL SEAL
93105-45007-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER 1
B16-4613F-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT 1
B16-46155-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
PLATE, FRICTION
B16-42525-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
PLATE 1
B16-46336-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CIRCLIP (E) (99001-09600-00)
99002-09600-00
Superseded by 99080-09600-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPRING, COMPRESSION
90501-180A2-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#41
GASKET, COVER
B16-4631E-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
95822-08035-00
|
$4.50 | ||
|
Unavailable |
|||
|
#43
PIN, DOWEL
93610-14002-00
|
$4.55 | ||
|
Unavailable |
|||
|
#44
CAM, PLATE
B16-4582E-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BALL
93515-32029-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
SPRING, RETURN
B16-46375-00-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#47
SHAFT
B16-46265-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER, PLATE
90201-13015-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#49
LEVER, CAMSHAFT
B16-25355-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
END, CABLE 3
B16-26374-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
PIN. COTTER
91402-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#52
WASHER, PLATE
92902-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
PIN
91702-06018-00
Superseded by 91701-06018-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
WASHER
92902-08200-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT, FLANGE
95822-08016-00
Superseded by 95814-08016-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
OIL SEAL
93102-17008-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
SPRING, COMPRESSION
90501-20361-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
SHAFT, DRIVE
1HP-G6172-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
CIRCLIP
99009-19400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
COUPLING
5KM-46126-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
CIRCLIP
93410-22039-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#62
SEAL 2
5KM-46137-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
SEAL 1
5KM-46136-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#64
HOSE (L1700)
90445-074F6-00
Superseded by 90445-070G6-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
CLIP
90467-07029-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#66
DAMPER
5KM-46559-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
