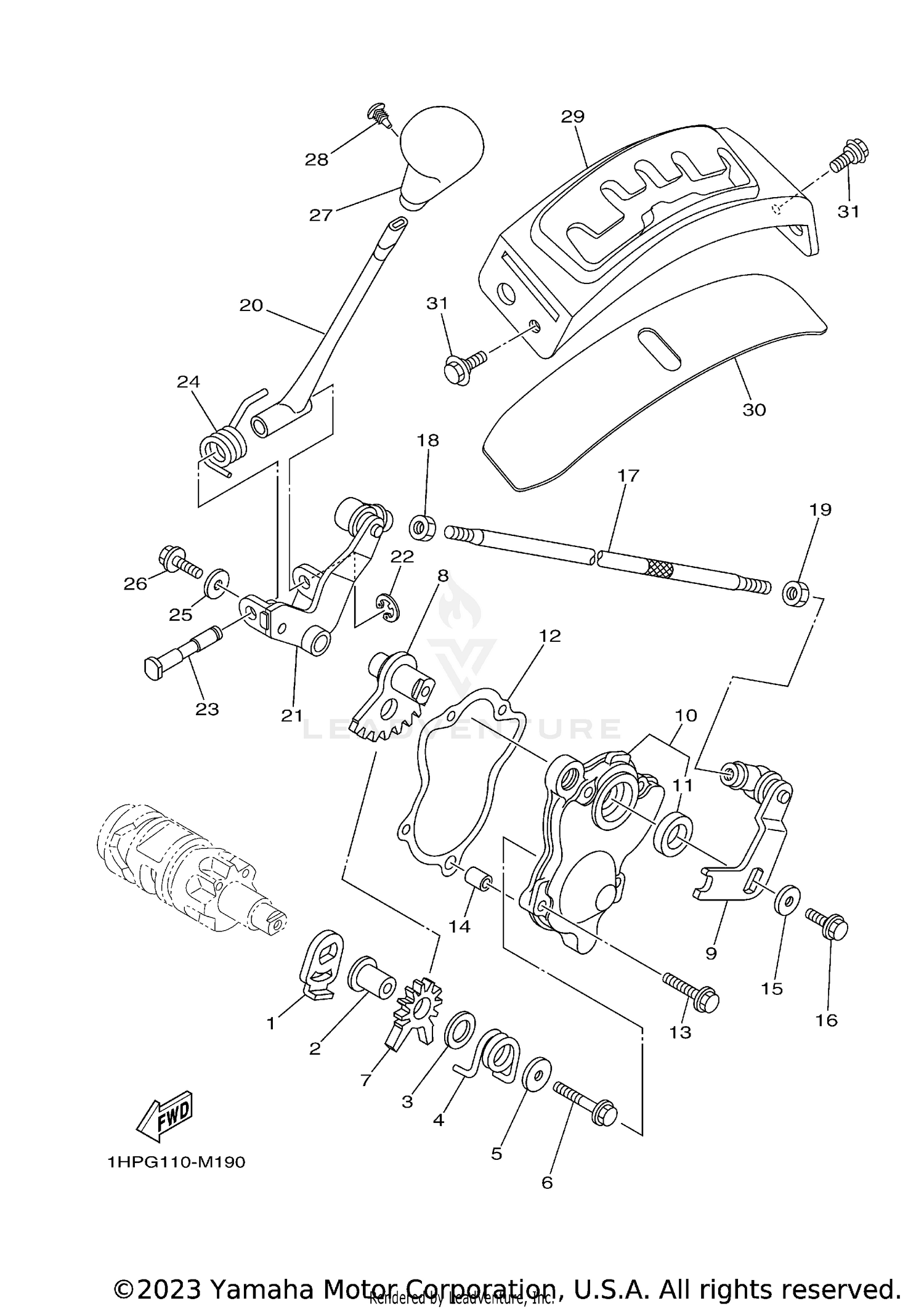

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER
4SH-18198-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-0613B-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-132G5-00
Superseded by 90201-13013-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TORSION
90508-32117-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-06036-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95812-06035-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER
5KM-18191-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIFT SHAFT COMP.
1HP-18103-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIFT GUIDE COMP.
28P-18104-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIFTER BRKT. ASSY
1HP-18380-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93102-17263-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
3B4-18146-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95027-06020-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-06036-00
|
$9.49 | ||
|
Unavailable |
|||
|
#16
BOLT,WASHER BASED
90105-06176-00
Superseded by 90105-06175-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, SHIFT
28P-18115-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT (COUNTER CLOCKWISE)
90170-06228-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95312-06700-00
Superseded by 95317-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
LEVER COMP. 1
1HP-E8190-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
ARM, SHIFT 2
1HP-E8169-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
99002-06600-00
Superseded by 99001-06600-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SHAFT, SHIFT
1HP-E8125-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, RETURN
1HP-E8196-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-06036-00
|
$9.49 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
KNOB, SHIFT LEVER
28P-18174-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
RIVET
90269-05055-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
GUIDE, SHIFT
1HP-E8172-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, DUST
1HP-E8154-00-00
Superseded by 1HP-E8154-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#31
BOLT
90109-06043-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
