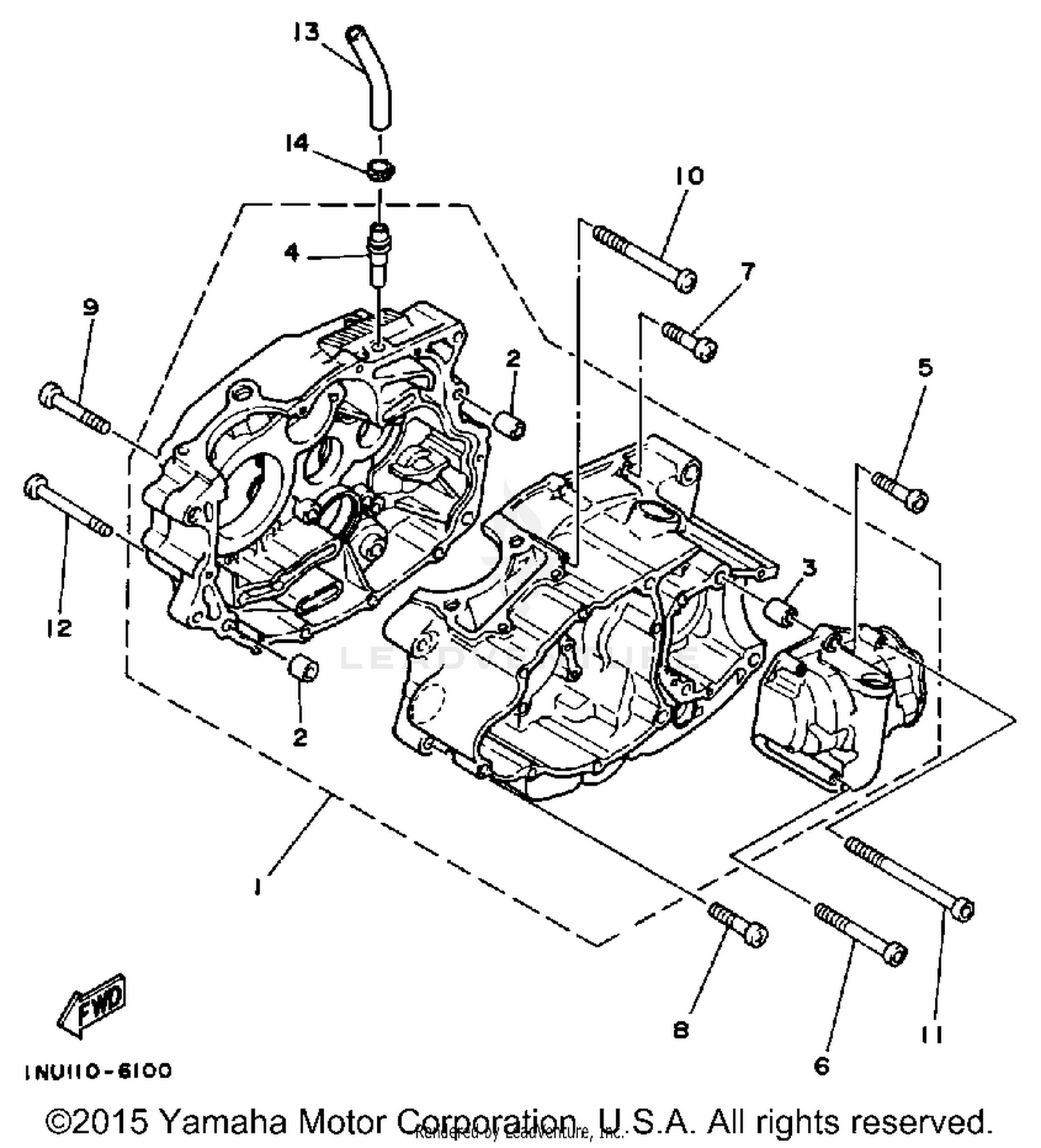

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSEMBLY
1NU-15100-00-00
|
$404.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, BREATHER 2
59V-11167-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
91316-06035-00
Superseded by 91317-06035-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
91316-06085-00
Superseded by 91317-06085-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98580-06040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD (92580-06560-00
92580-06560-00
Superseded by 98580-06560-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98511-06085-00
Superseded by 98507-06085-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91316-06160-00
Superseded by 91317-06160-00
|
$20.99 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98501-06075-00
Superseded by 98580-06575-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE
90445-121E3-00
|
$15.49 | ||
|
Unavailable |
|||
|
#14
CLIP
90467-13064-00
Superseded by 90467-13133-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
