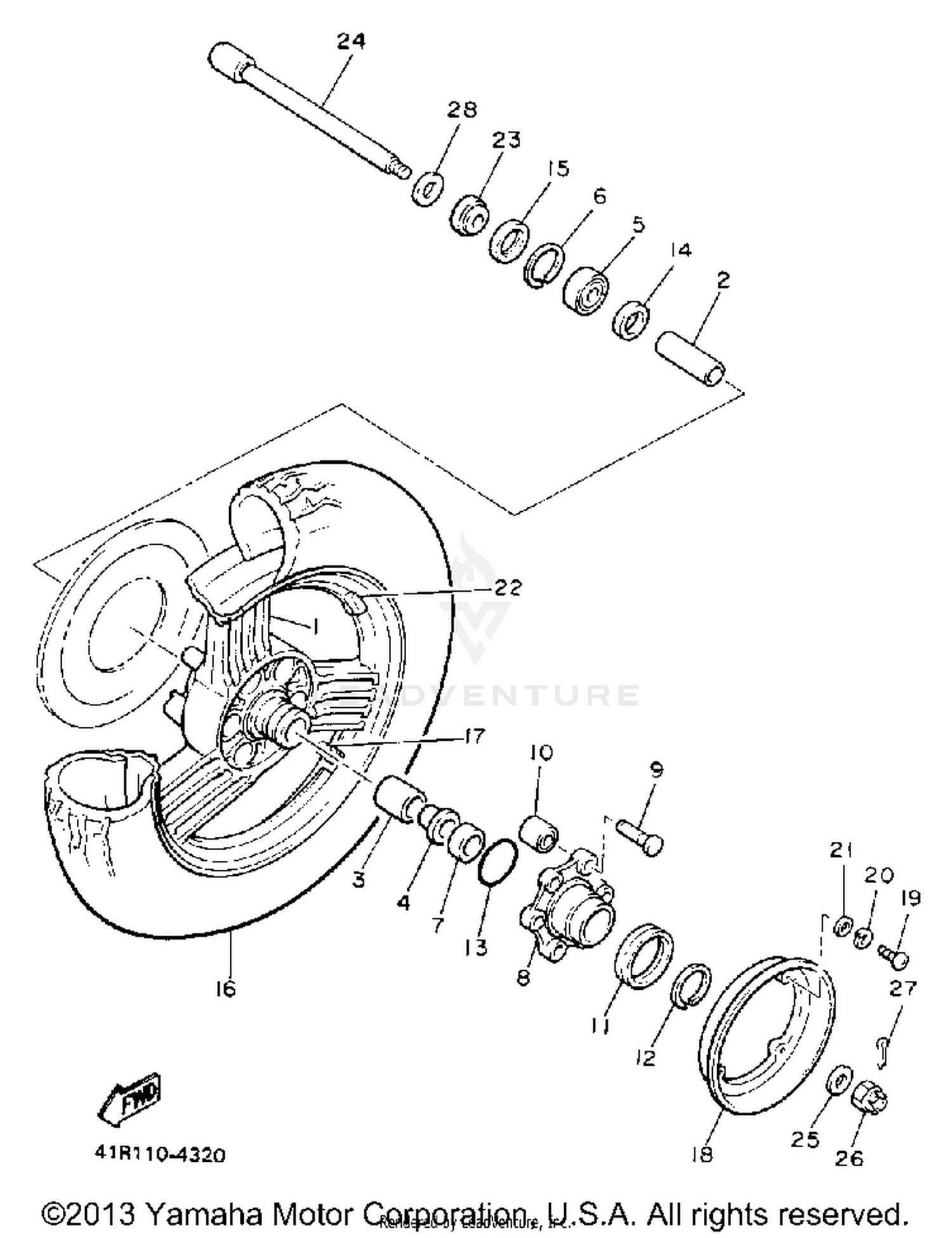

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, rear
26H-25338-20-35
|
$757.99 | ||
|
Unavailable |
|||
|
#
WHEEL, CAST REAR
26H-25338-20-P0
|
$703.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-20235-00
|
$20.99 | ||
|
Unavailable |
|||
|
#3
BEARING
93317-32635-00
Superseded by 93311-32698-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-203H7-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BEARING
93306-30417-00
Superseded by 93306-30437-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
99009-52500-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
OIL SEAL
93102-25064-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLUTCH, HUB
26H-25366-00-00
Superseded by 26H-25366-01-00
|
$207.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
90249-12167-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER
26H-25364-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#11
SEAL, HUB DUST
1J7-25319-01-00
Superseded by 1J7-25319-03-00
|
$16.99 | ||
|
Unavailable |
|||
|
#12
CIRCLIP
93440-45022-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93210-68347-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FLANGE, SPACER
2H7-25315-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93106-40027-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
TIRE (MCS 140/90-16 71H)
94114-167G8-00
|
$186.99 | ||
|
Unavailable |
|||
|
#17
VALVE, RIM (PVR59A)
93900-00016-00
Superseded by 93900-00025-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, PLATE
1FK-25327-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98501-05018-00
Superseded by 98507-05018-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
BALANCER, WHEEL (10G)
2M0-25399-00-00
Superseded by 5MT-25398-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
1A1-25399-00-00
Superseded by 5MT-25398-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#
BALANCER, WHEEL (10G)
1A1-25398-01-00
Superseded by 5MT-25398-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#23
COLLAR
90387-200J2-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
AXLE, wheel
26H-25381-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-18620-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, CASTLE
90171-18043-00
|
$21.99 | ||
|
Unavailable |
|||
|
#27
PIN,COTTER
91401-40040-00
Superseded by 91490-40045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
92901-20600-00
Superseded by 92903-20600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
