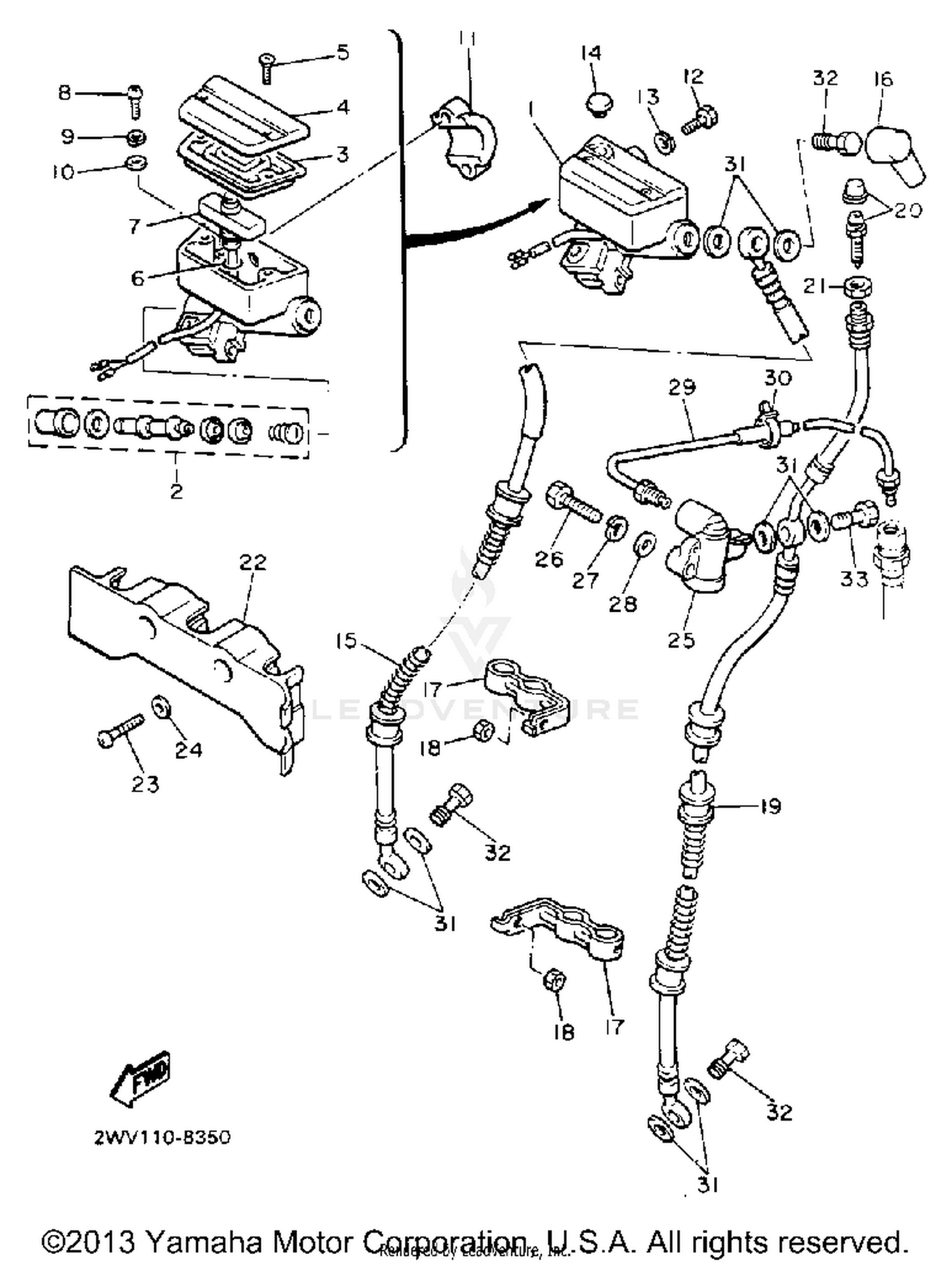

Front Master Cylinder 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASS''Y
1NL-25850-01-00
|
$264.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER
4H7-W0041-50-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, reservoir
26H-25854-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, reservoir
26H-25852-01-00
|
$44.99 | ||
|
Unavailable |
|||
|
#5
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
O-RING
93210-08493-00
|
$6.49 | ||
|
Unavailable |
|||
|
#7
LEAD SWITCH ASS''Y
26H-85702-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#8
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, MASTER
1J3-25867-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#12
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PLUG
90338-09012-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HOSE,BRAKE 1
2WR-25872-01-00
Superseded by 99999-02745-00
|
$101.99 | ||
|
Unavailable |
|||
|
#16
BOOT, MASTER CYLINDER
306-25862-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, brake hose 1
2WR-25875-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#18
NUT
95306-06800-00
Superseded by 95307-06800-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, BRAKE 2
2WR-25873-01-00
Superseded by 99999-02730-00
|
$238.99 | ||
|
Unavailable |
|||
|
#20
BLEED SCREW KIT
1NL-W0048-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
95306-12600-00
Superseded by 95337-12600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER, brake hose
26H-25886-01-00
|
$42.99 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
METERING VALVE ASS''Y
1NL-25940-00-00
|
$242.99 | ||
|
Unavailable |
|||
|
#26
BOLT,HEXAGON
97026-06030-00
Superseded by 97017-06030-00
|
$3.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
Unavailable |
|||
|
#28
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$1.00 | ||
|
Unavailable |
|||
|
#29
PIPE, brake
26H-25871-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#30
BAND, SWITCH CORD
437-83936-11-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, UNION
90401-10096-00
Superseded by 90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, union
90401-10114-00
|
$4.50 | ||
|
Unavailable |
|||
