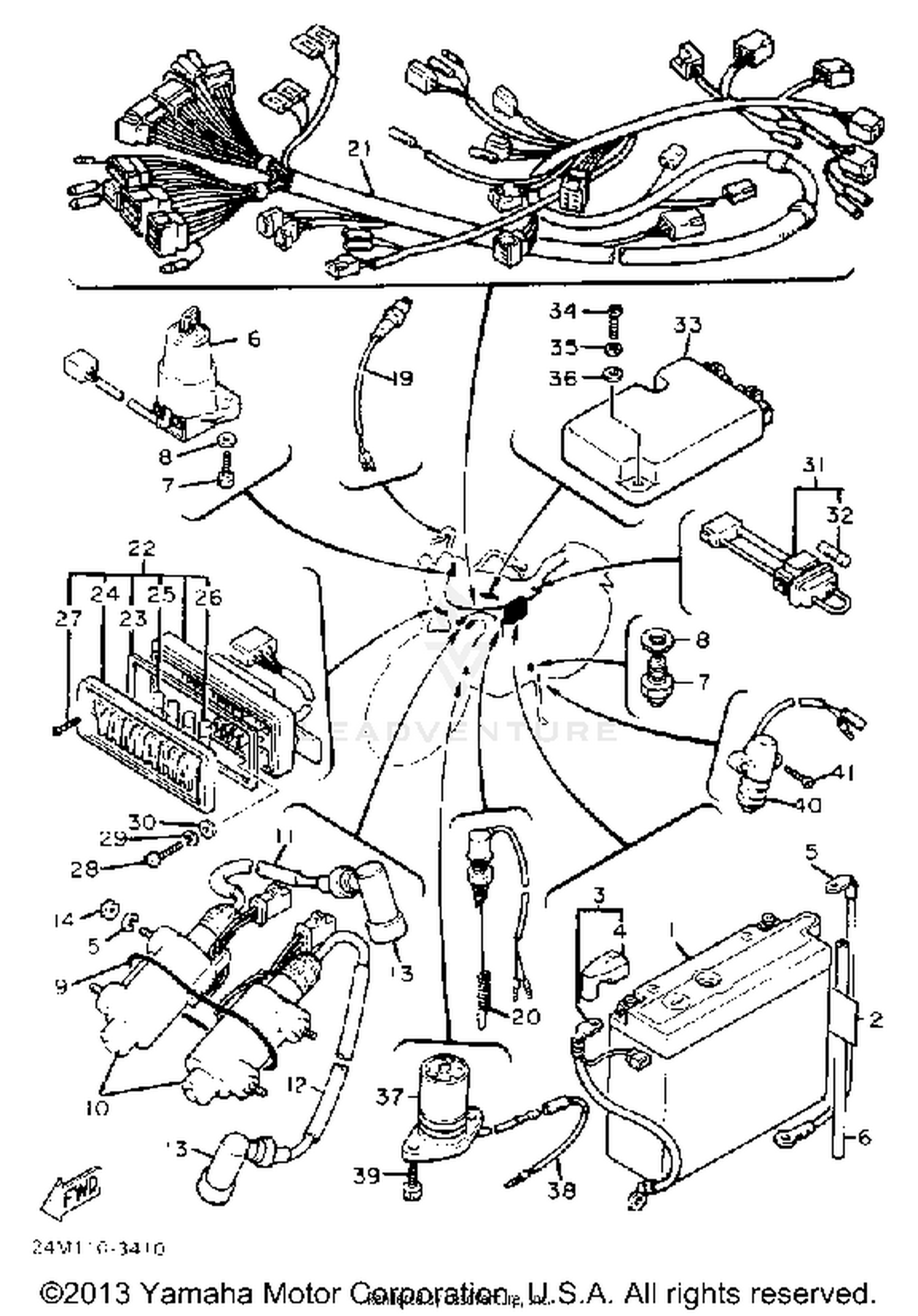

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
BTY-GM18Z-3A-S0
|
|||
|
Unavailable |
|||
|
#2
LABEL, BATTERY
118-82141-09-00
Superseded by 40A-82141-G0-00
|
$0.85 | ||
|
Unavailable |
|||
|
#3
WIRE, PLUS LEAD
4X7-82115-00-00
|
$17.78 | ||
|
Unavailable |
|||
|
#4
COVER, LEAD WIRE
4X7-82119-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#5
WIRE, MINUS LEAD
4X7-82116-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#6
PIPE
90445-08044-00
Superseded by 90445-084J0-00
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NEUTRAL SWITCH ASSY
2H7-82540-00-00
Superseded by 4GY-82540-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-10171-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O-RING
93210-64297-00
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
IGNITION COIL ASSEMBLY
4X7-82310-70-00
|
$91.99 | ||
|
Unavailable |
|||
|
#11
CORD, HIGH TENS 1
4X7-82341-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CORD, HIGH TENS 1
4X7-82341-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#13
PLUG CAP ASSEMBLY
1J7-82370-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
MAIN SWITCH ASSEMBLY (24M-82501
4R0-82508-50-00
|
$90.99 | ||
|
Unavailable |
|||
|
#17
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
FRONT STOP SWITCH ASSY
1A0-83980-30-00
Superseded by 26H-83980-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
STOP SWITCH ASSEMBLY
4X7-82530-02-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRE HARNESS ASSEMBLY
24M-82590-50-00
|
$203.99 | ||
|
Unavailable |
|||
|
#22
FUSE BOX ASSEMBLY
4X7-82170-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#23
GASKET
4X7-82175-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#24
COVER, FUSE BOX
4X7-82172-00-00
|
$18.12 | ||
|
Unavailable |
|||
|
#25
FUSE (15A)
4X7-82151-00-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
FUSE (12V-10A)
116-82151-00-00
Superseded by 1A0-82151-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, FLAT HEAD
98706-04010-00
Superseded by 98707-04010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90201-06048-00
|
$4.70 | ||
|
Unavailable |
|||
|
#31
FUSE HOLDER ASSEMBLY
3H5-82150-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
FUSE (12V-30A)
2H7-82151-00-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#33
IGNITOR UNIT ASSEMBLY 1
42X-82305-20-00
|
$736.99 | ||
|
Unavailable |
|||
|
#34
SCREW, PAN HEAD
98580-06020-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#36
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Unavailable |
|||
|
#37
OIL LEVEL GAUGE ASSEMBLY
3JK-85720-00-00
|
$258.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
WIRE, LEAD
4X7-85721-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#39
BOLT, HEXAGON SOCKET HEAD
91311-06016-00
Superseded by 91314-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
SWITCH, SIDE STAND
33E-82566-00-00
|
$150.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
SCREW, FLAT HEAD
98706-05016-00
Superseded by 98707-05016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
