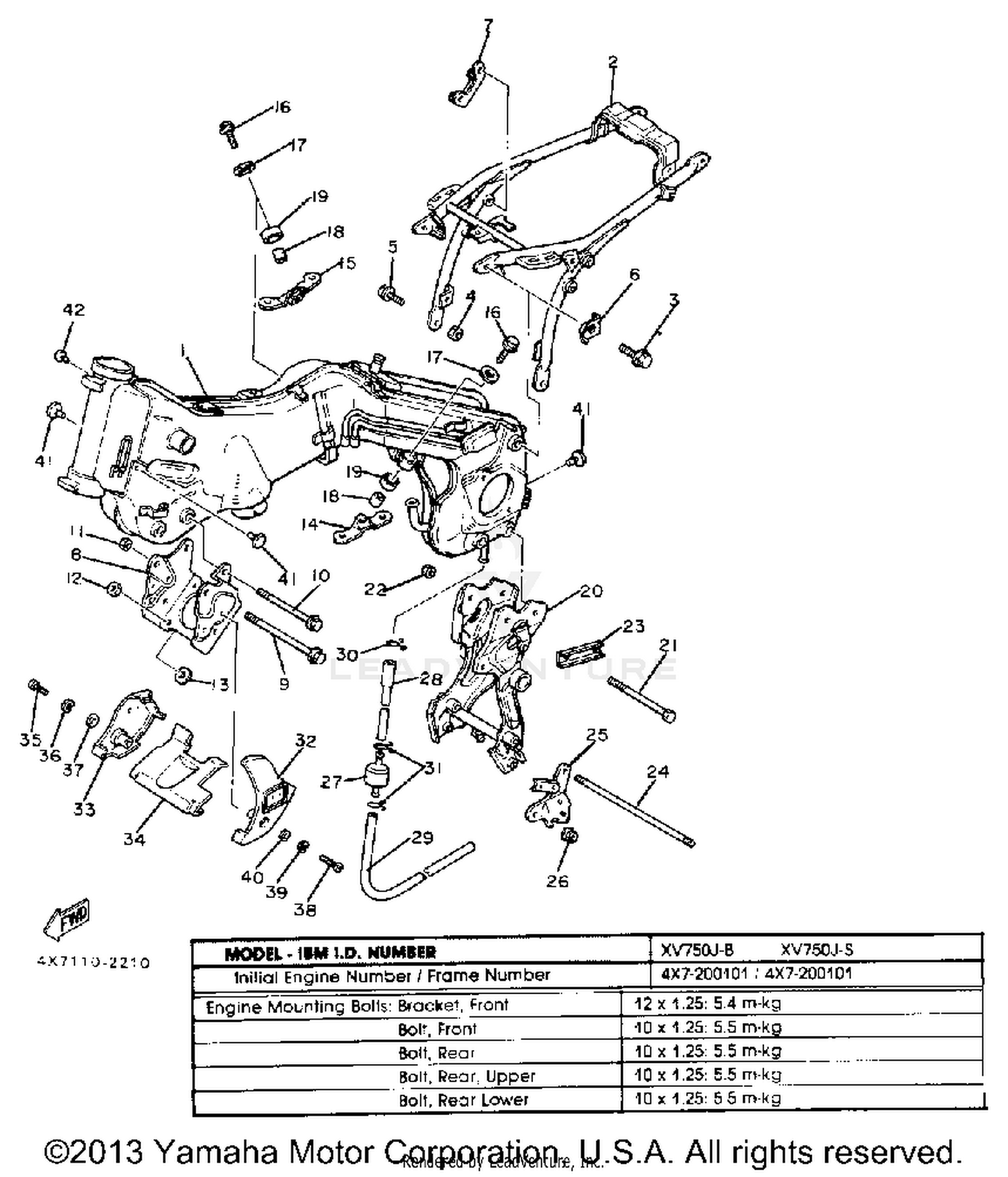

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
4X7-21110-00-33
|
$403.99 | ||
|
Unavailable |
|||
|
#2
FRAME, REAR
4X7-21190-00-33
|
$327.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
95811-10035-00
Superseded by 95817-10035-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
90185-10060-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90101-10524-00
Superseded by 90101-10303-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WASHER, LOCK
90215-10192-00
|
$6.99 | ||
|
Unavailable |
|||
|
#7
BRACKET 2
4X7-2138L-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#8
STAY, ENGINE 4
4X7-21317-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
90105-10183-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-10105-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT
90179-12421-00
Superseded by 90179-12657-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-125A3-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, ENGINE 2
4X7-21315-00-00
|
$8.68 | ||
|
Unavailable |
|||
|
#15
STAY, ENGINE 3
4X7-21316-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#16
BOLT, WASHER BASED
90105-10186-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-105H3-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-100E2-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, RUBBER 1
4X7-21485-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#20
BRACKET, REAR ARM
4X7-21430-00-00
|
$225.99 | ||
|
Unavailable |
|||
|
#21
BOLT
90101-10074-00
|
$7.99 | ||
|
Unavailable |
|||
|
#22
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$10.49 | ||
|
Unavailable |
|||
|
#23
WASHER, LOCK
4X7-21491-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#24
BOLT, STUD
90116-10343-00
|
$12.49 | ||
|
Unavailable |
|||
|
#25
BRACKET, SIDE STAND
4X7-21458-01-00
|
$51.88 | ||
|
Unavailable |
|||
|
#26
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$10.49 | ||
|
Unavailable |
|||
|
#27
FILTER ASSY
4X7-2149Y-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE
90445-11545-00
|
$1.98 | ||
|
Unavailable |
|||
|
#29
HOSE (L100)
90445-11452-00
Superseded by 90445-11293-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-13042-00
Superseded by 90467-13M13-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP
90467-11102-00
Superseded by 90467-11106-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCOOP, AIR 1
4X7-2137W-00-98
|
$25.99 | ||
|
Unavailable |
|||
|
#33
SCOOP, AIR 2
4X7-2137X-00-98
|
$25.99 | ||
|
Unavailable |
|||
|
#34
GUIDE, AIR
4X7-2137Y-00-98
|
$26.99 | ||
|
Unavailable |
|||
|
#35
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
SCREW, PAN HEAD
98506-06040-00
Superseded by 98507-06040-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
Unavailable |
|||
|
#40
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$1.00 | ||
|
Unavailable |
|||
|
#41
PLUG
90338-07043-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLUG, SPEC''L SHAPE
90338-03116-00
|
$0.94 | ||
|
Unavailable |
|||
