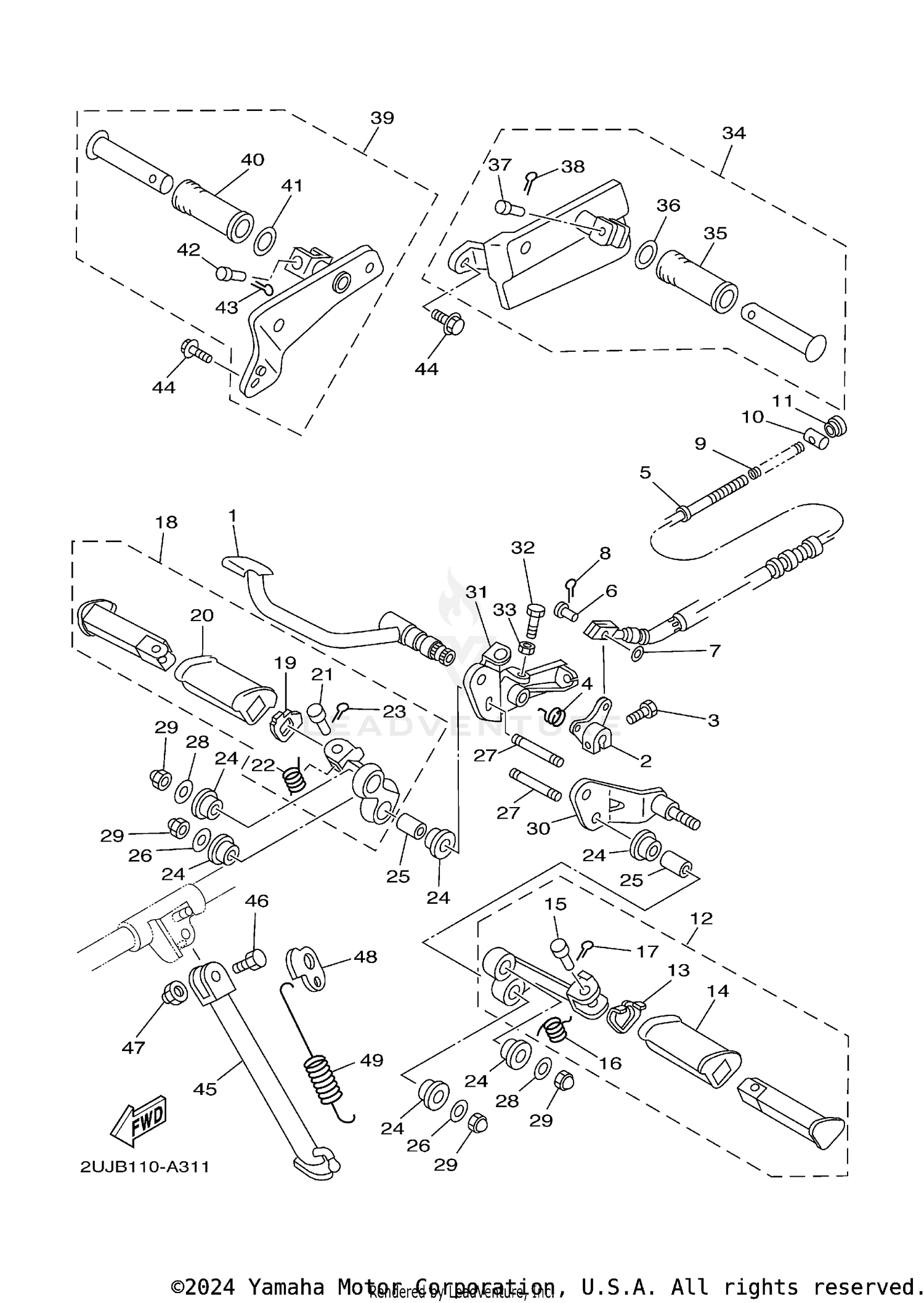

Stand & Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
2UJ-27211-01-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER
2UJ-27262-02-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
97024-06020-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SPRING, RETURN
2UJ-27216-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE, BRAKE
2UJ-26351-00-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CLEVIS
91701-06018-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
92907-06200-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-10245-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PIN, SPECIAL SHAPE
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SPECIAL SHAPE
90179-06411-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRONT FOOTREST ASSY (LEFT)
2UJ-27410-00-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, FOOTREST
4X7-27417-00-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
COVER, FOOTREST
4X7-27413-00-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIN
90240-08084-00
Superseded by 91701-08038-00
|
$4.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SPRING, TORSION
90508-20023-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
FRONT FOOTREST ASSY (RIGHT)
2UJ-27420-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, FOOTREST
4X7-27417-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#20
COVER, FOOTREST
4X7-27413-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#21
PIN
90240-08084-00
Superseded by 91701-08038-00
|
$4.45 | ||
|
Unavailable |
|||
|
#22
SPRING, TORSION
90508-20023-00
|
$4.25 | ||
|
Unavailable |
|||
|
#23
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#24
DAMPER, FOOTREST
2UJ-27414-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-100V6-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-100A1-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, STUD
90116-10519-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-100A1-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
NUT
95304-10800-00
Superseded by 95380-10800-00
|
$16.10 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRACKET 4
2UJ-2741L-00-33
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET 5
2UJ-2742L-00-33
|
$223.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, HEXAGON
90153-06008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
95307-06700-00
Superseded by 95317-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
REAR FOOTREST ASSY 1
2UJ-27430-00-35
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER, REAR FOOTREST
120-27433-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-20279-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, CLEVIS
91701-06032-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
Unavailable |
|||
|
#39
REAR FOOTREST ASSY 2
2UJ-27440-00-35
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
COVER, REAR FOOTREST
120-27433-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#41
WASHER, PLATE
90201-20279-00
|
$9.49 | ||
|
Unavailable |
|||
|
#42
PIN, CLEVIS
91701-06032-00
|
$10.49 | ||
|
Unavailable |
|||
|
#43
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
Unavailable |
|||
|
#44
BOLT, FLANGE (SMALL HEAD)
95024-08020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
STAND, SIDE
2UJ-27311-01-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT
90109-10474-00
Superseded by 90109-104E6-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
NUT, SELF-LOCKING
90185-10037-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
LINK, SIDE STAND
2KT-27315-00-00
Superseded by 3VD-27315-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
SPRING, SIDE STAND
2UJ-27316-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
