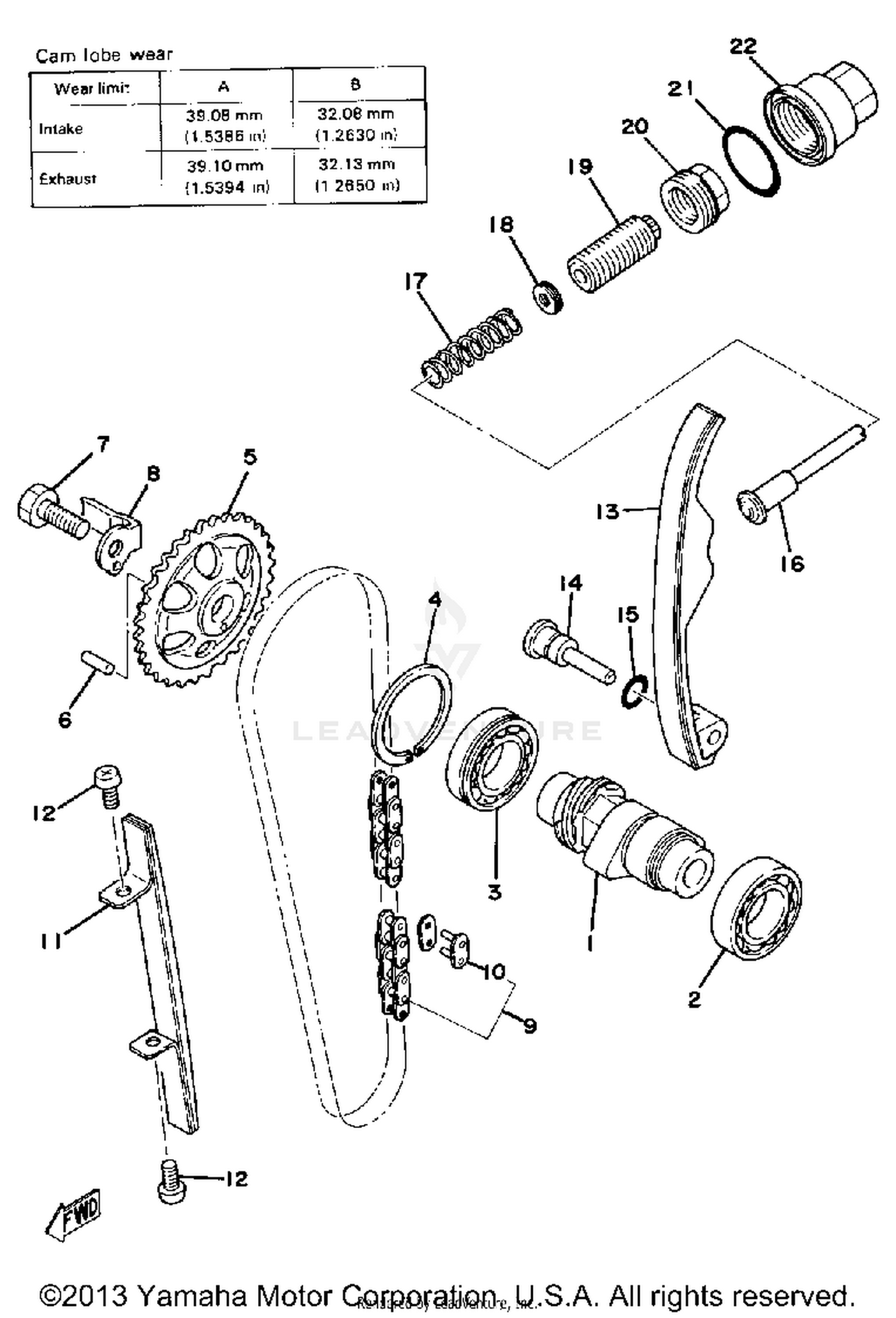

Camshaft - Chain Tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
583-12171-01-00
Superseded by 583-12171-02-00
|
$177.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-00501-00
Superseded by 93306-00519-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-00519-00
|
$39.99 | ||
|
Unavailable |
|||
|
#4
CIRCLIP, OUTER
93440-47044-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPROCKET, CAM CHAIN
583-12176-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
93604-16092-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT
90101-10303-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PLATE
1T1-12279-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#9
CHAIN
94500-02106-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT, CHAIN (BF05M)
94600-02001-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE, STOPPER 1
583-12231-00-00
Superseded by 583-12231-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
GUIDE, STOPPER 2
341-12241-03-00
Superseded by 341-12241-04-00
|
$92.99 | ||
|
Unavailable |
|||
|
#14
SHAFT, TENSIONER
583-12247-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-12152-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROD, CHN TENSIONER
583-12217-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, COMPRESSION
90501-14095-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER (583-12232-00)
583-12232-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#19
SCREW, SPEC''L SHAPE
90149-18191-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SPEC''L SHAPE
90179-18199-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-32172-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CASE, CHAIN TENSNR
583-12212-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
