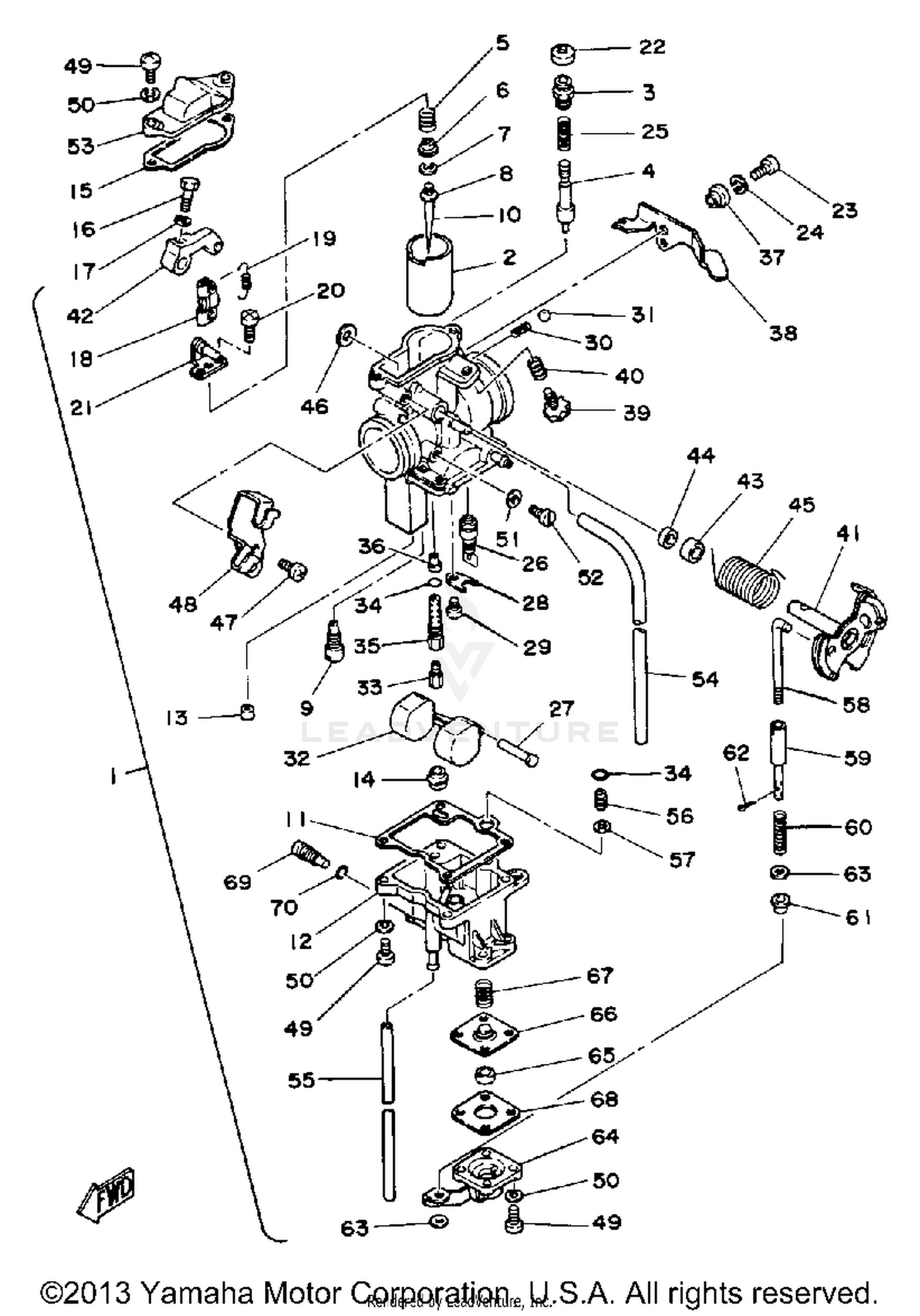

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
3Y1-14101-00-00
|
$391.99 | ||
|
Unavailable |
|||
|
#2
UNAVAILABLE IN PRICE BOOK
3Y-11411-22-50
|
|||
|
Unavailable |
|||
|
#3
CAP, PLUNGER
3Y1-14174-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#4
PLUNGER, STARTER
3Y1-14171-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#5
SPRING
3H1-14589-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#6
WASHER
2N6-14227-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING
2N6-14918-01-00
|
$16.99 | ||
|
Unavailable |
|||
|
#9
JET, PILOT #17.5 (3Y1-14142-
3Y1-14142-17-00
|
$31.99 | ||
|
Unavailable |
|||
|
#10
UNAVAILABLE IN PRICE BOOK
16-81411-66-50
|
|||
|
Unavailable |
|||
|
#11
GASKET, FLOAT CHMBR
3Y1-14184-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BODY, FLOAT CHAMBER
3Y1-14981-10-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP
3F9-14118-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
UNAVAILABLE IN PRICE BOOK
3Y-11415-30-00
|
|||
|
Unavailable |
|||
|
#15
GASKET
3Y1-14536-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
UNAVAILABLE IN PRICE BOOK
3Y-11459-20-00
|
|||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
UNAVAILABLE IN PRICE BOOK
3Y-11427-60-00
|
|||
|
Unavailable |
|||
|
#19
UNAVAILABLE IN PRICE BOOK
3Y-11427-50-00
|
|||
|
Unavailable |
|||
|
#20
UNAVAILABLE IN PRICE BOOK
3Y-12445-30-00
|
|||
|
Unavailable |
|||
|
#21
UNAVAILABLE IN PRICE BOOK
3Y-11429-10-00
|
|||
|
Unavailable |
|||
|
#22
COVER, PLUNGER CAP
3A3-14173-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, PLUNGER
156-14135-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NEEDLE VALVE ASSEMBLY
2H0-14190-20-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, FLOAT
537-14186-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE
2H0-14146-00-00
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SPRING
583-14589-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BALL
93501-08001-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
FLOAT
3H1-14185-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#33
JET, MAIN #165 (#165)
137-14143-33-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING
583-14561-00-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
PIPE
3H1-14148-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#36
UNAVAILABLE IN PRICE BOOK
3Y-11414-13-80
|
|||
|
Unavailable |
|||
|
#37
NUT
583-14594-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#38
LEVER, STARTER 1
3Y1-14175-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#39
THROTTLE SCREW SET
24U-14103-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#40
SPRING, THRTL STOP
3F7-14934-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#41
SHAFT, THRTL LEVER
3Y1-14215-00-00
|
$61.99 | ||
|
Unavailable |
|||
|
#42
UNAVAILABLE IN PRICE BOOK
3Y-11429-20-00
|
|||
|
Unavailable |
|||
|
#43
COLLAR
3F7-14265-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#44
SEAL
2A2-14997-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
SPRING, THRTL VALVE
3Y1-14131-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#46
WASHER
1A8-14953-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#47
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#48
BRACKET, THROTTLE
3Y1-14571-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#49
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#51
WASHER, PLUG SCREW
584-14956-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#52
PLUG, SCREW
2F5-14115-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#53
UNAVAILABLE IN PRICE BOOK
3Y-11415-80-00
|
|||
|
Unavailable |
|||
|
#54
PIPE
3Y1-14197-00-00
Superseded by 26H-14197-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
HOSE
3Y3-14196-00-00
Superseded by 88R-14987-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
VALVE, CHECK SEAT
2H0-14272-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
WASHER, NEEDLE VLV
2H0-14195-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#58
ROD
3Y1-14992-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#59
ROD
2H0-14992-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
SPRING, DIAPHRAGM
3Y1-14933-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#61
COLLAR
2H0-14534-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#62
PIN. COTTER
91490-12012-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#63
WASHER
2H0-14227-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#64
LEVER, STARTER
3Y1-14905-00-00
|
$16.10 | ||
|
Unavailable |
|||
|
#65
RING
3Y0-14918-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#66
DIAPHRAGM ASSEMBLY
3Y1-14940-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
SPRING
3Y1-14589-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#68
SEAT, SPRING
3Y1-14936-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#69
PLUG, DRAIN
12R-14191-00-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
O-RING
3Y1-14561-00-00
Superseded by 214-14147-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
