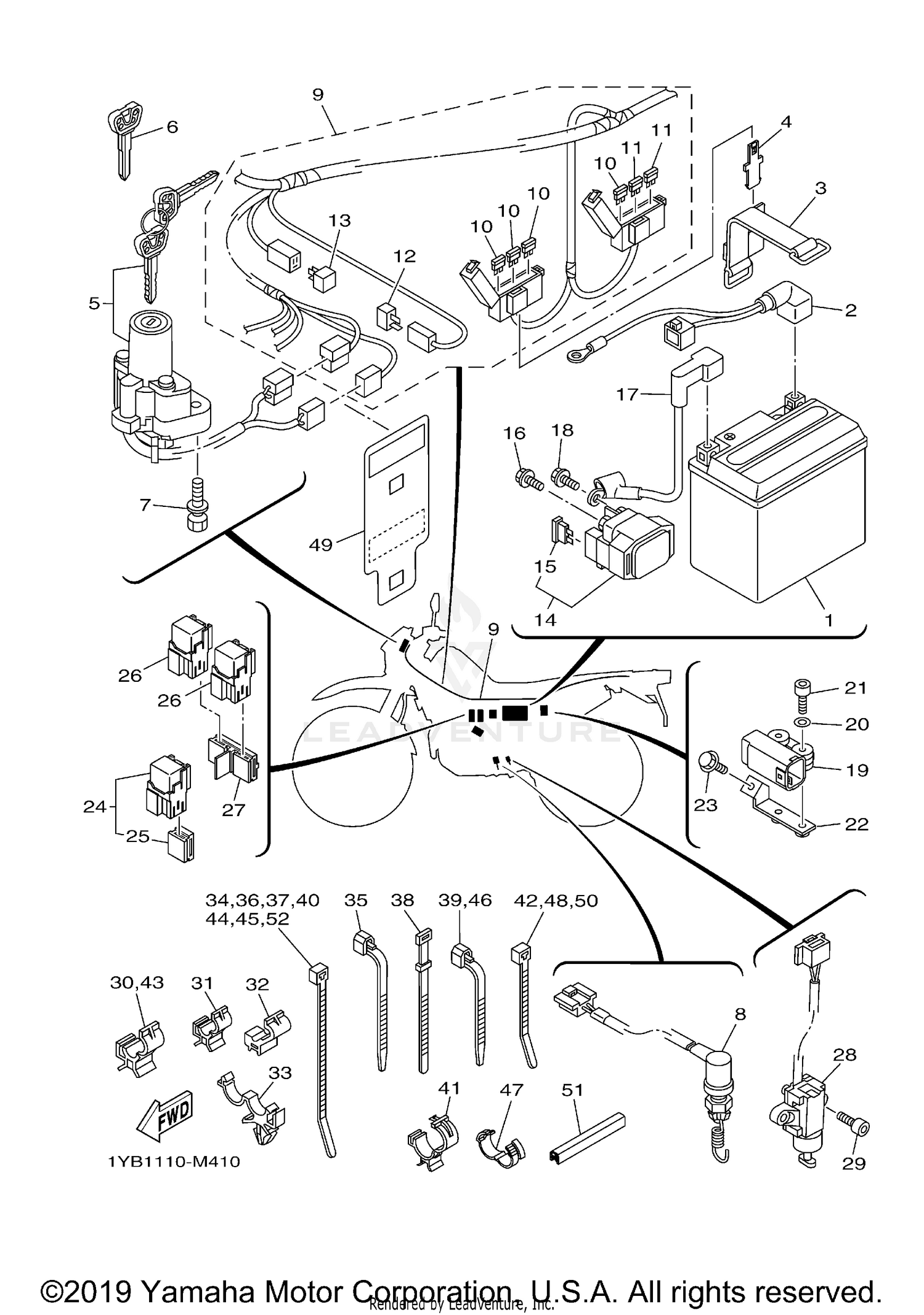

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
YTZ7S HE YUASA BATT
1S4-82100-10-00
Superseded by YTZ-7SHE0-00-00
|
$173.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
WIRE, MINUS LEAD
5XT-82116-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAND, BATTERY
5XT-82131-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, FUSE BOX
5XT-82171-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
MAIN SWITCH STEERI
3C5-82501-10-00
Superseded by 3C5-82501-11-00
|
$153.99 | ||
|
Unavailable |
|||
|
#6
BLANK KEY
4BH-82511-09-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT
90109-08195-00
Superseded by 90109-08196-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
STOP SWITCH ASSY
5C1-82530-00-00
Superseded by 5C1-82530-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#9
WIRE HARNESS ASSY
1YB-82590-00-00
|
$392.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIODE ASSY
4WA-81980-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIODE ASSY
3XV-81980-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
STARTER RELAY ASSY (RC19-018)
4YR-81940-02-00
|
$152.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUSE (30A-BL)
1AE-82151-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95027-06008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WIRE, PLUS LEAD
5XT-82115-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95027-06008-00
|
$7.99 | ||
|
Unavailable |
|||
|
#19
SENSOR, LEAN ANGLE
5VU-82576-01-00
Superseded by 5VU-82576-03-00
|
$105.99 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-047A2-00
|
$4.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
91312-04025-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET 1
5XT-2141A-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95022-06012-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
RELAY ASSY (1ST-00)
1ST-81950-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, RELAY
5JJ-81952-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RELAY ASSY (5UM-E0)
5UM-81950-E0-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, RELAY
5XT-81952-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SWITCH, SIDE STAND
5XT-82566-00-00
Superseded by 5XT-82566-01-00
|
$61.99 | ||
|
Unavailable |
|||
|
#29
BOLT, HEX. SOCKET HEAD
90110-05227-00
Superseded by 91317-05014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-10190-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLAMP
90464-08189-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP
90464-05188-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLAMP
90464-16006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#36
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#37
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#38
BAND, SWITCH CORD
3TB-83936-00-00
Superseded by 437-83936-11-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP
90464-13077-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#41
CLAMP
90464-20191-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLAMP
90465-10098-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP
90464-10190-00
|
$10.49 | ||
|
Unavailable |
|||
|
#44
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#45
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#46
CLAMP
90464-13077-00
|
$9.49 | ||
|
Unavailable |
|||
|
#47
CLAMP
90464-16001-00
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLAMP
90465-10098-00
|
$2.70 | ||
|
Unavailable |
|||
|
#49
PROTECTER, WIRE HARNESS
2D1-82589-00-00
Superseded by 2D1-82589-02-00
|
$11.99 | ||
|
Unavailable |
|||
|
#50
CLAMP
90465-10098-00
|
$2.70 | ||
|
Unavailable |
|||
|
#51
MOLD, FUEL TANK
5VN-24188-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
