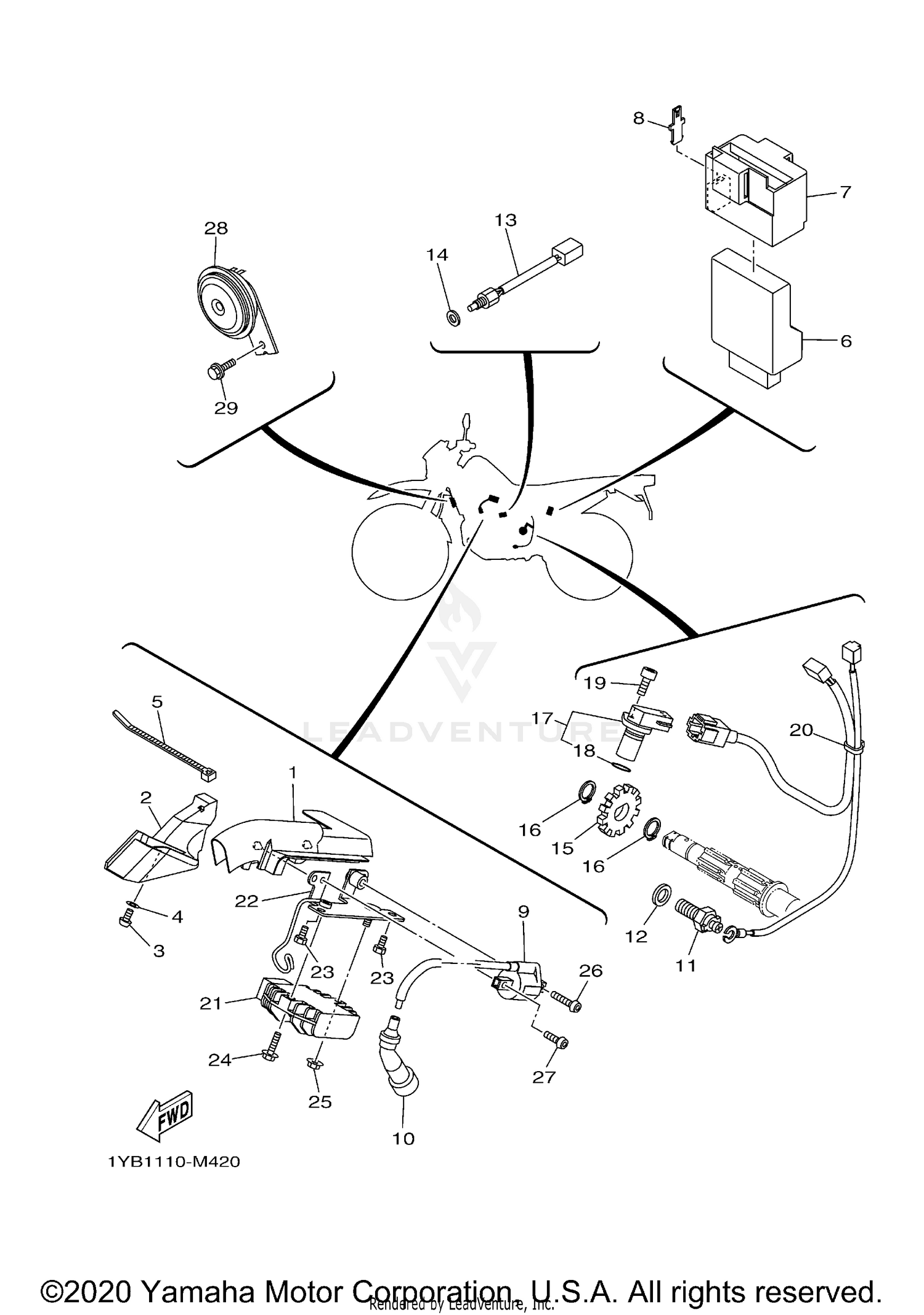

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER 3
5XT-2117N-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER 4
5XT-2117R-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
90149-06298-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-06058-00
Superseded by 90201-06020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
ENGINE CONTROL UNIT ASSY
1YB-8591A-00-00
|
$382.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND
5XT-85546-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, FUSE BOX
5XT-82171-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
IGNITION COIL ASSY
1S4-82310-01-00
Superseded by 1S4-82310-03-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG CAP ASSY
5VK-82370-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEUTRAL SWITCH ASSY
4KM-82540-00-00
Superseded by 4GY-82540-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
THERMO UNIT
5XT-83591-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
90430-08204-00
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
ROTOR
3C5-8354W-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#16
CIRCLIP
99009-17400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SENSOR, SPEED
1S4-83755-01-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
1S4-81168-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
91312-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WIRE, SUB LEAD
3C5-82309-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#21
RECTIFIER & REGULATOR ASSY
5GT-81960-00-00
|
$282.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, COIL
1YB-21359-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, COIL
5XT-21359-10-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
97012-06010-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95802-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, BUTTON HEAD
92012-06025-00
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, BUTTON HEAD
92012-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HORN
3C5-83371-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT,FLANGE
95827-06010-00
Superseded by 95817-06010-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
