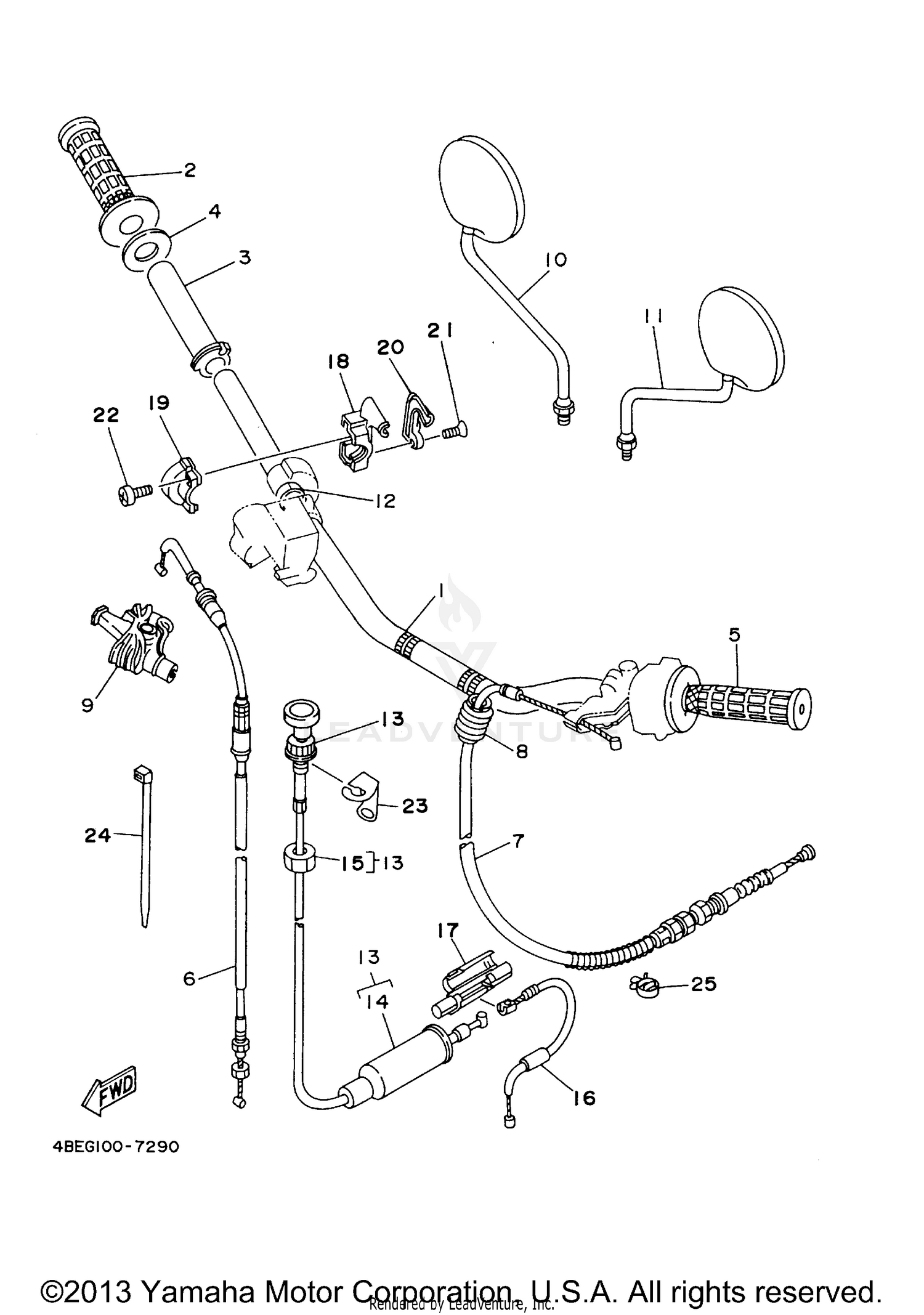

2000 Yamaha XT 225 STEERING HANDLE CABLE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
4BE-26111-01-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP (RIGHT)
1LX-26242-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, THROTTLE GUIDE
434-26243-12-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, LEAF
1M1-26249-01-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GRIP (LEFT)
1LX-26241-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, THROTTLE 1
3RW-26311-10-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, CLUTCH
4JG-26335-01-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, CABLE
1E6-26342-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, HANDLE LEVER 1
1T5-26372-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BACK MIRROR ASSY (R.H)
3Y1-26290-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
MIRROR ASSY., 2
3Y1-26290-10-00
Superseded by 5Y1-26290-11-00
|
$29.99 | ||
|
Unavailable |
|||
|
#12
COLLAR
90387-22660-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
STARTER CABLE ASSY
1VJ-26331-03-00
Superseded by 2TY-F6330-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, RUBBER
1YU-26329-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
1VJ-26333-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE, STARTER 2
3RW-26334-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CONNECTOR, CABLE
53L-26261-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, GRIP UPPER
38V-26281-00-98
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP, GRIP LOWER
493-26282-00-98
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP, WIRE
38V-2628H-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, FLAT HEAD
98707-04012-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98507-05016-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER, WIRE
4BE-2637G-00-00
Superseded by 4BE-2637G-10-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BAND
90465-13152-00
Superseded by 1UA-82591-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90464-10193-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
