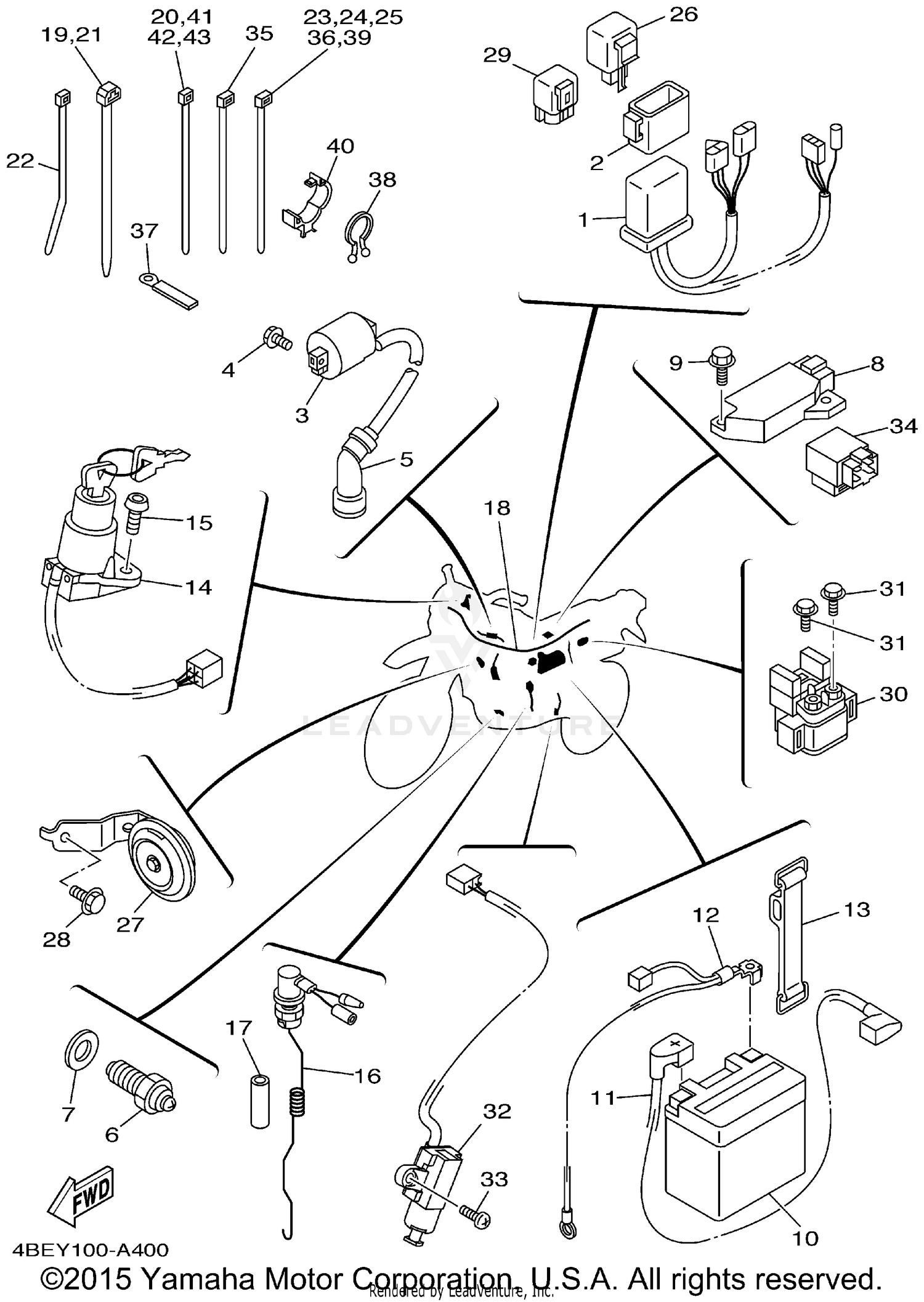

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
3GX-85540-00-00
|
$285.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND
3RW-85546-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
4BE-82310-10-00
Superseded by 3KJ-82310-14-00
|
$41.99 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG CAP ASSY
3NS-82370-00-00
|
$41.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NEUTRAL SWITCH ASSY
4KM-82540-00-00
Superseded by 4GY-82540-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
RECTIFIER & REGULATOR ASSY
3TJ-81960-02-00
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
YTZ7S HE YUASA BATT
4TP-82100-10-00
Superseded by YTZ-7SHE0-00-00
|
$173.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WIRE, PLUS LEAD
5BT-82115-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WIRE, MINUS LEAD
4JG-82116-10-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, BATTERY
3L8-82131-01-00
Superseded by 22F-82131-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
MAIN SWITCH STEERING LOCK
58E-82501-00-00
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
90149-06228-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
STOP SWITCH ASSY
5BT-82530-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE(4CS)
90446-15233-00
Superseded by 90446-15381-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
WIRE HARNESS ASSY
4BE-82590-10-00
|
$240.71 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, SWITCH CORD
90464-12045-00
Superseded by 25G-83936-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND
90465-13152-00
Superseded by 1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, SWITCH CORD
90464-12045-00
Superseded by 25G-83936-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
CLAMP
90465-10098-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP 1
5Y9-12491-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP 1
5Y9-12491-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#25
CLAMP 1
5Y9-12491-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
FLASHER RELAY ASSY
4VR-83350-00-00
Superseded by 4VR-83350-02-00
|
$60.99 | ||
|
Unavailable |
|||
|
#27
HORN
3RW-83371-00-00
Superseded by 3RW-83371-11-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
RELAY ASSY
3RW-81950-00-00
Superseded by 3RW-81950-01-00
|
$46.99 | ||
|
Unavailable |
|||
|
#30
STARTER RELAY ASSY (RC19-019)
4JG-81940-00-00
Superseded by 4JG-81940-12-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95027-06008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SWITCH, SIDE STAND
3LD-82566-60-00
Superseded by 3LD-82566-61-00
|
$56.99 | ||
|
Unavailable |
|||
|
#33
SCREW, PAN HEAD
90157-05008-00
Superseded by 98507-05016-00
|
$1.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
RELAY ASSY (ACA12115-1)
29U-81950-93-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90464-16061-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLAMP 1
5Y9-12491-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#37
CLAMP
90465-06332-00
Superseded by 90465-06376-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
CLAMP
90464-16039-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP 1
5Y9-12491-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#40
CLAMP
90464-10190-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BAND
90465-13152-00
Superseded by 1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#42
BAND
90465-13152-00
Superseded by 1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#43
CLAMP
90464-23041-00
Superseded by 90464-25267-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
