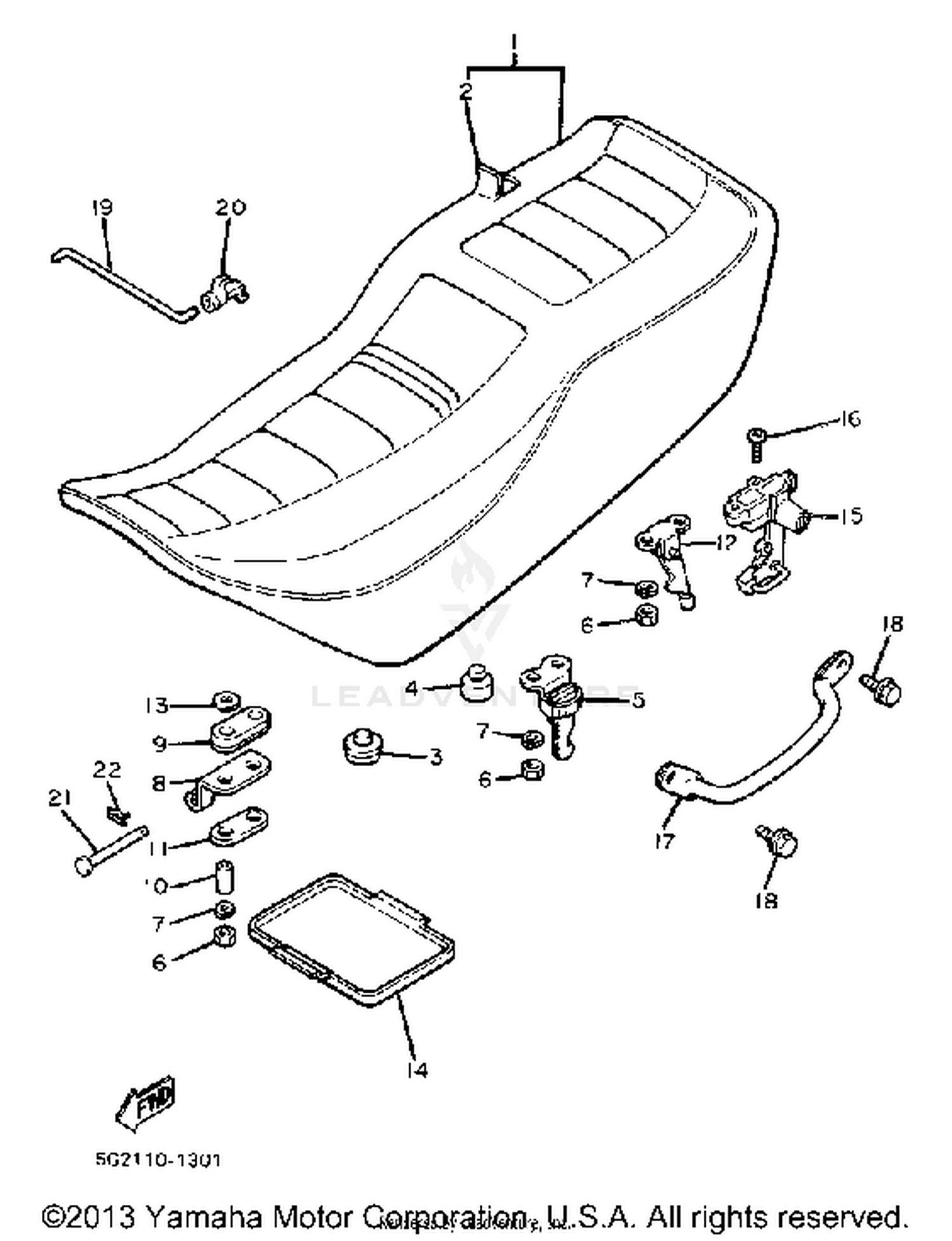

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSEMBLY.
5G8-W2472-00-00
|
$370.99 | ||
|
Unavailable |
|||
|
#2
COVER, DOUBLE SEAT
5G2-24731-00-00
|
$142.99 | ||
|
Unavailable |
|||
|
#3
PAD, SEAT
1L9-24741-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, MAIN STAND
371-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, SEAT
4K0-24728-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#6
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
HINGE, SEAT
1J7-24726-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#9
DAMPER, SEAT
1J7-24723-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#10
COLLAR
90387-07390-00
Superseded by 90387-07020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SEAT
1L9-24746-00-00
|
$3.30 | ||
|
Unavailable |
|||
|
#12
SEAT LEVER ASS''Y
4K0-24760-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#13
WASHER, PLAIN
92990-06200-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
LID
395-28185-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#15
SEAT LOCK ASSEMBLY
5G2-24705-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#16
SCREW, BIND
98906-06016-00
Superseded by 98907-06016-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HANDLE, STANDING
5G2-21165-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE
95816-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER
4K0-24768-01-00
|
$14.49 | ||
|
Unavailable |
|||
|
#20
BRACKET, SEAT
1J7-24718-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#21
PIN, CLEVIS
91701-05055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90468-10050-00
|
$3.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
