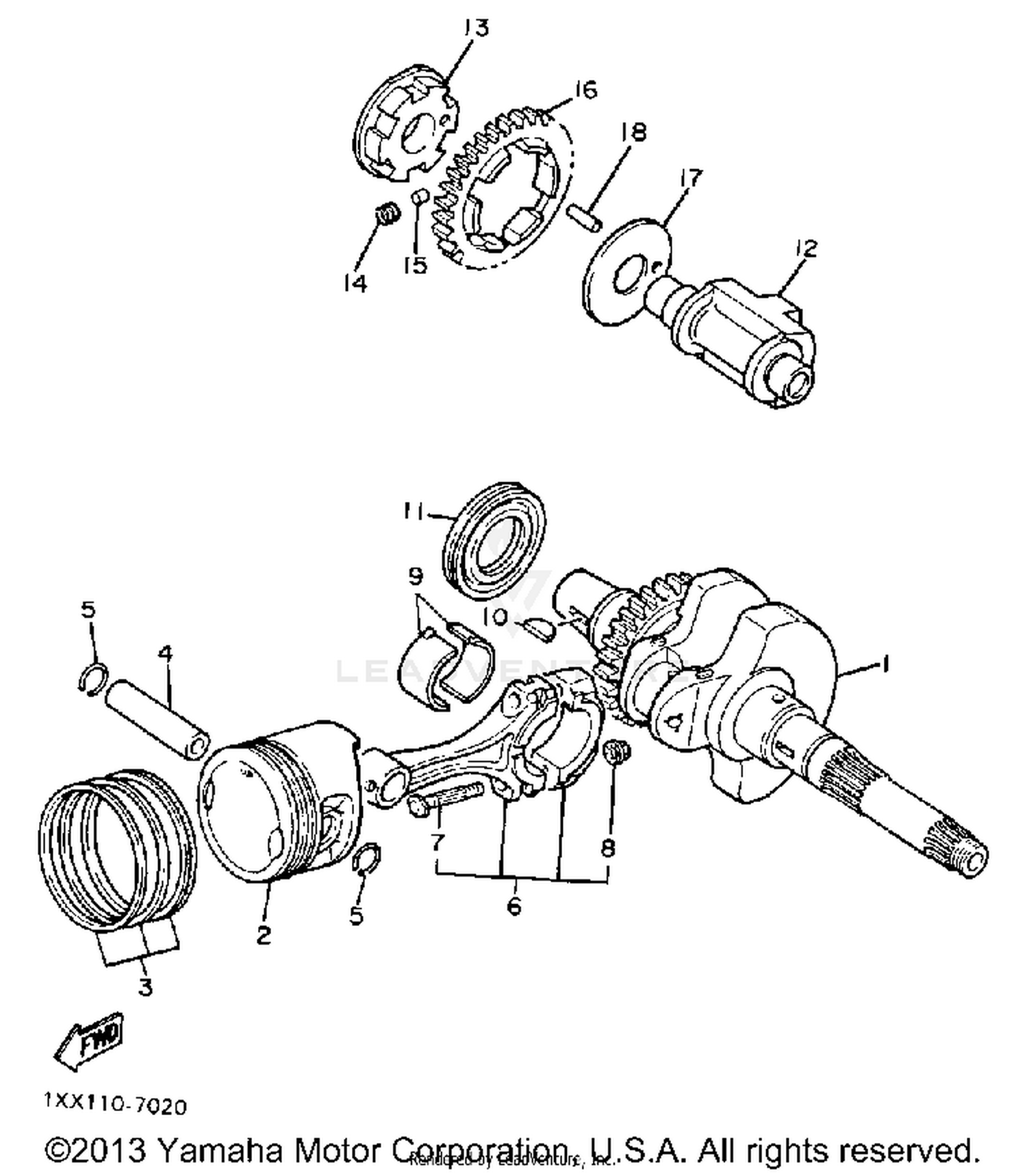

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
1XX-11400-00-00
|
$617.99 | ||
|
Unavailable |
|||
|
#2
PISTON STD (STD)
1XX-11631-00-A0
|
$93.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00 (1.00MM O/S)
1XX-11638-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50 (0.50MM O/S)
1XX-11636-00-00
|
$91.99 | ||
|
Unavailable |
|||
|
#3
PISTON RING SET (STD)
1AA-11610-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (2ND O/S)
1AA-11610-20-00
|
$44.99 | ||
|
Unavailable |
|||
|
#
PISTON RING SET (4TH O/S)
1AA-11610-40-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, PISTON
25G-11633-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#5
CIRCLIP
93450-16068-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CONNECTING ROD ASSEMBLY (25G-11
25G-11650-00-00
|
$97.99 | ||
|
Unavailable |
|||
|
#7
BOLT, CON ROD
25G-11654-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#8
NUT, SPECL SHAPE
90179-06407-00
|
$3.20 | ||
|
Unavailable |
|||
|
#9
PLANE BRNG, CON ROD
25G-11656-20-00
|
$4.55 | ||
|
Unavailable |
|||
|
#
PLANE BRNG, CON ROD
25G-11656-30-00
|
$9.99 | ||
|
Unavailable |
|||
|
#
PLANE BRNG, CON ROD
25G-11656-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#
PLANE BRNG, CON ROD
25G-11656-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#10
KEY, WOODRUFF
90280-16053-00
Superseded by 90280-05001-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
OIL SEAL, SD-TYPE
93102-30283-00
|
$11.49 | ||
|
Unavailable |
|||
|
#12
WEIGHT 1
1XX-11454-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#13
BOSS, BUFFER
25G-11496-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#14
SPRING, COMPRESSION
90501-21133-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DOWEL
93605-10090-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GEAR, BALANCE WT-40
25G-11531-00-00
|
$20.36 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-201G9-00
|
$6.99 | ||
|
Unavailable |
|||
|
#18
PIN, DOWEL
93603-19146-00
|
$1.77 | ||
|
Unavailable |
|||
