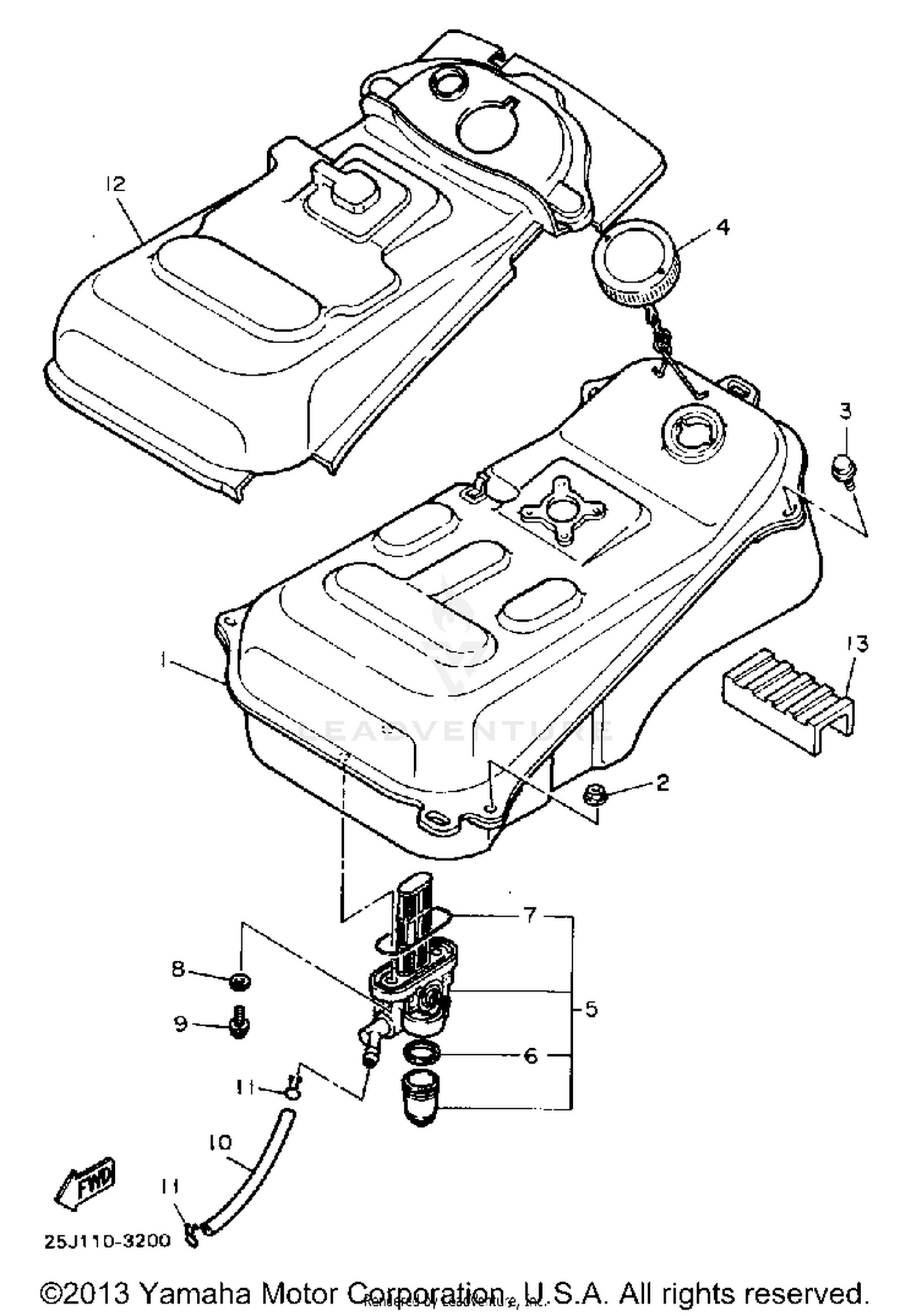

Fuel Tank Xc180l Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
25G-24110-00-00
|
$105.99 | ||
|
Unavailable |
|||
|
#2
NUT, FLANGE
95706-06500-00
Superseded by 95707-06500-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06018-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CAP ASSY
50M-24610-01-00
Superseded by 50M-24610-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FUEL COCK ASSEMBLY 1
25G-24500-01-00
|
$134.99 | ||
|
Unavailable |
|||
|
#6
GASKET
25G-24522-01-00
|
$9.99 | ||
|
Unavailable |
|||
|
#7
GASKET
2G2-24512-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW, SPECIAL SHAPE
90149-06008-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE (L166)
90445-13693-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CLIP
90467-11102-00
Superseded by 90467-11106-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT, RUBBER
25G-24198-00-00
|
$26.72 | ||
|
Unavailable |
|||
|
#13
DAMPER, LOCATING 1
25G-24181-00-00
|
$4.50 | ||
|
Unavailable |
|||
