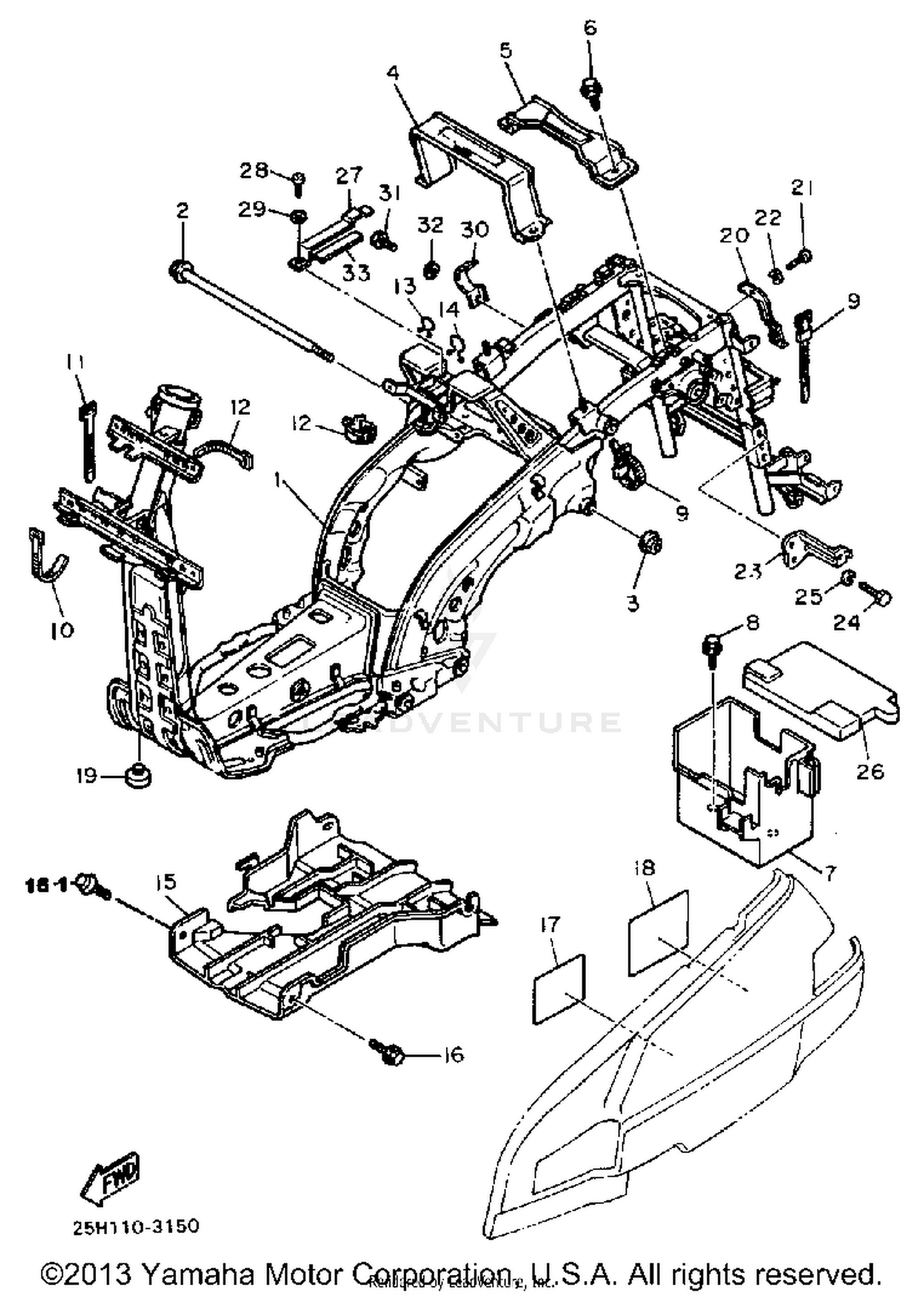

Frame Xc180lc Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, WITH WASHER
90119-06043-00
Superseded by 90119-06242-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
FRAME
25G-21110-00-00
|
$559.99 | ||
|
Unavailable |
|||
|
#2
BOLT, WASHER BASED
90105-14245-00
|
$9.30 | ||
|
Unavailable |
|||
|
#3
NUT, SELF-LOCKING
95601-14200-00
Superseded by 95607-14200-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, SEAT 1
25G-21341-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#5
BRACKET, SEAT 2
25G-21342-00-00
|
$8.58 | ||
|
Unavailable |
|||
|
#6
BOLT,FLANGE
95826-06010-00
Superseded by 95817-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOX, TOOL
25G-21171-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#8
BOLT, WITH WASHER
90119-06018-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BAND, SWITCH CORD
25G-83936-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, SWITCH CORD
437-83936-11-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, SWITCH CORD
437-83936-11-00
|
$5.00 | ||
|
Unavailable |
|||
|
#12
BAND, SWITCH CORD
437-83936-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-16039-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-23041-00
Superseded by 90464-25267-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PROTECTOR, ENGINE
25G-21471-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#16
BOLT, WITH WASHER
90119-06052-00
Superseded by 90119-06226-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, SPEC
25H-21683-52-00
|
$14.06 | ||
|
Unavailable |
|||
|
#18
PLATE, ROUTING 2
25H-21686-00-00
|
$18.14 | ||
|
Unavailable |
|||
|
#19
STOPPER, MAIN STAND
116-27114-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET
25H-2134V-00-00
|
$6.78 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, CANISTER
25H-2134X-01-00
|
$3.34 | ||
|
Unavailable |
|||
|
#24
BOLT (661)
97313-08012-00
Superseded by 97013-08012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, BATTERY
25G-82129-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
BAND, BATTERY
25G-82131-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.35 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
90201-061A5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOLDER
25G-2419A-00-00
|
$1.77 | ||
|
Unavailable |
|||
|
#31
BOLT
97013-06012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#33
PAD, BATTERY
53Y-82121-00-00
|
$2.15 | ||
|
Unavailable |
|||
