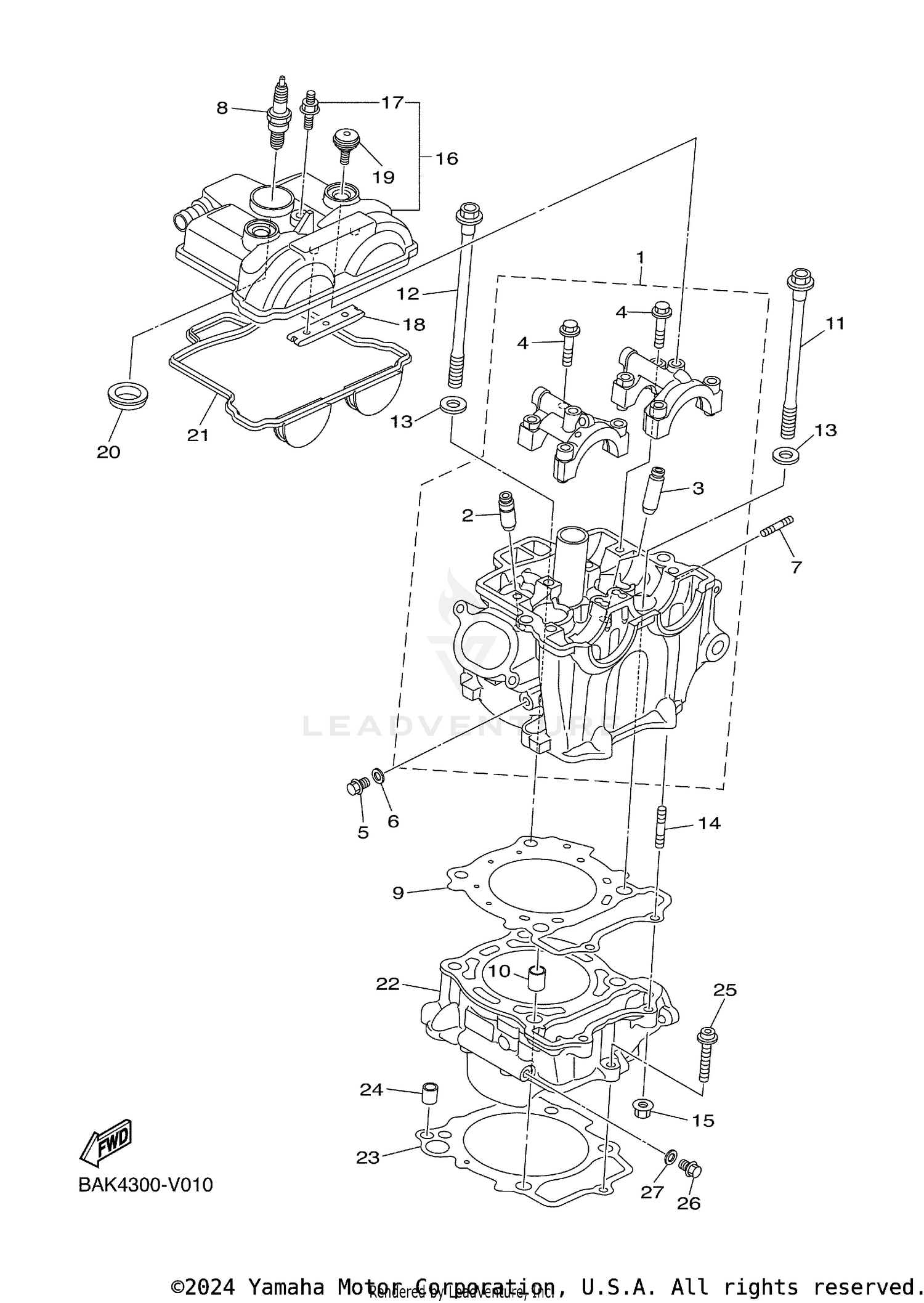

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
B7B-11101-19-00
|
$831.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
B7B-11133-10-00
|
$245.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 1
3D7-11133-10-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-06027-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE DEEP RE
95E32-06010-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, STUD
90116-06037-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, SPARK (NGK LMAR8E-J)
94701-00444-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, CYLINDER HEA
B7B-11181-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
93612-16254-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-09004-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-09002-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-096J9-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, STUD
90116-06037-00
|
$4.25 | ||
|
Unavailable |
|||
|
#15
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
COVER, CYLINDER HEAD
B7B-11190-00-00
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STUD
90116-06048-00
Superseded by 90116-06049-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE, STOPPER 2
5BE-12241-01-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, COVER HEAD
5UM-1119E-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, HEAD COVER 2
1SM-11194-00-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
GASKET, HEAD COVER 1
1SM-11193-00-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CYLINDER 1
B7B-11311-00-00
|
$540.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET, CYLINDER
B7B-11351-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, DOWEL
99530-10116-00
|
$4.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
90110-06380-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE DEEP RE
95E32-06010-00
|
$0.95 | ||
|
Unavailable |
|||
|
#27
GASKET
90430-06014-00
|
$8.60 | ||
|
Unavailable |
|||
