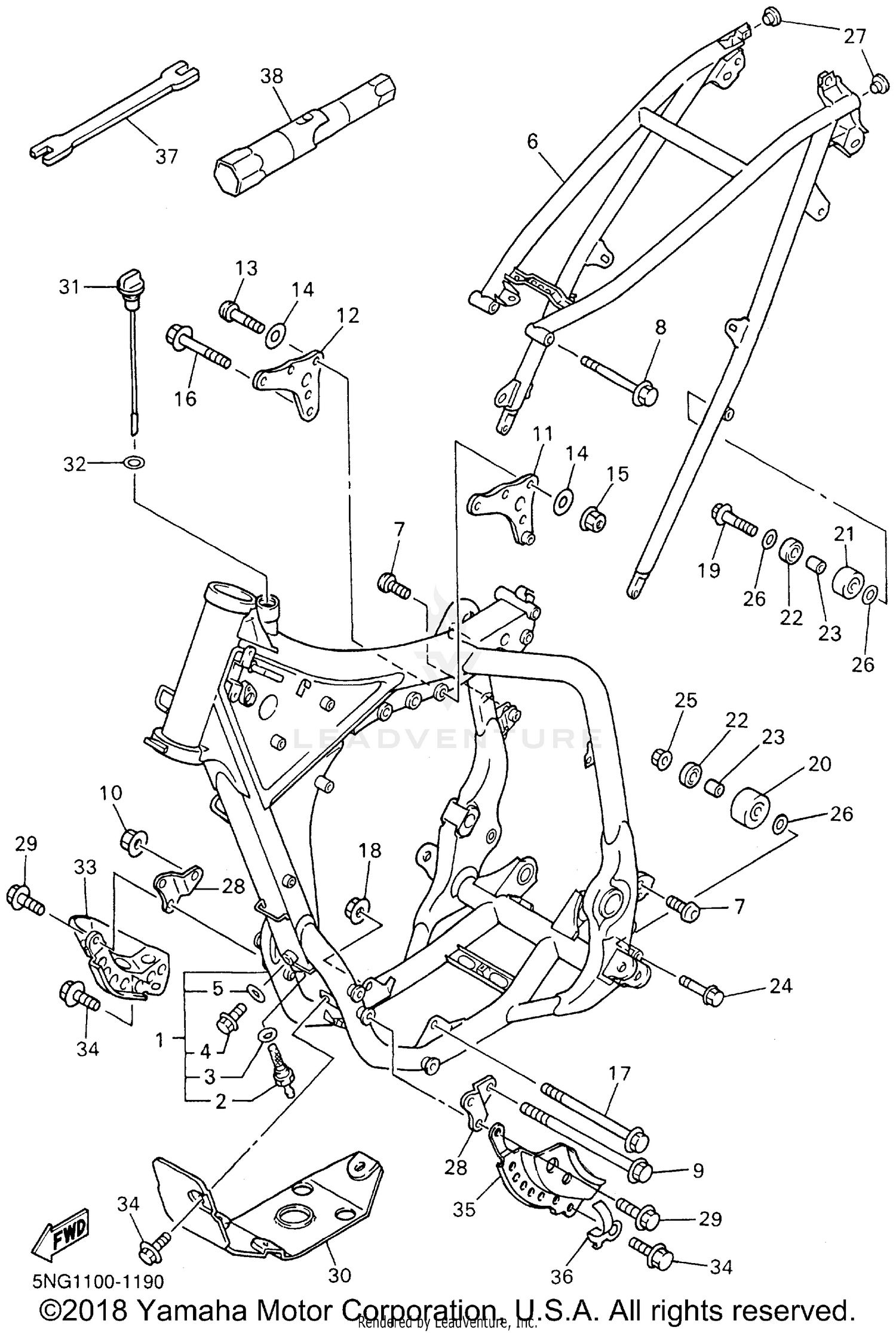

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
5NG-21101-00-P0
|
$1,920.99 | ||
|
Unavailable |
|||
|
#2
NET, FILTER
5BE-21756-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
90430-18130-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT, FLANGE
95827-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GASKET
90430-08119-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
REAR FRAME COMP.
5NG-21190-00-P0
|
$621.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
90110-08096-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WASHER BASED
90105-08099-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95817-10160-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BRACKET, REAR UPPER 1
5GR-21425-01-00
|
$47.99 | ||
|
Unavailable |
|||
|
#12
BRACKET, REAR UPPER 1
5BE-21425-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#13
BOLT, BUTTON HEAD
92017-08055-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-086P8-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
90185-08169-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95817-10050-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-10733-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
95027-08040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
TENSIONER
3JD-22178-10-00
Superseded by 3JD-22178-20-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
TENSIONER
4EW-22178-00-00
Superseded by 4EW-22178-01-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BEARING
93300-60804-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-086N4-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95027-08065-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT,FLANGE (JN5)
95707-08500-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-086P8-00
|
$5.49 | ||
|
Unavailable |
|||
|
#27
GROMMET
90480-17218-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRACKET, FRONT LOWER 1
5BE-21417-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT,FLANGE (JN5)
95817-08016-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
PROTECTOR, ENGINE
5BE-21471-00-00
|
$117.40 | ||
|
Unavailable |
|||
|
#31
PLUG, OIL LEVEL
5BE-15362-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING
93210-19123-00
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
GUARD, ENGINE 1
5BE-2147A-00-00
Superseded by 5TA-2147A-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
95027-08012-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
GUARD, ENGINE 1
5NG-2147A-10-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLAMP
5NG-21338-00-00
Superseded by 5NG-21338-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#37
WRENCH, HEXAGON
5ET-28166-00-00
Superseded by 5ET-28166-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOX, SPARK PLUG
5BE-2814F-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
