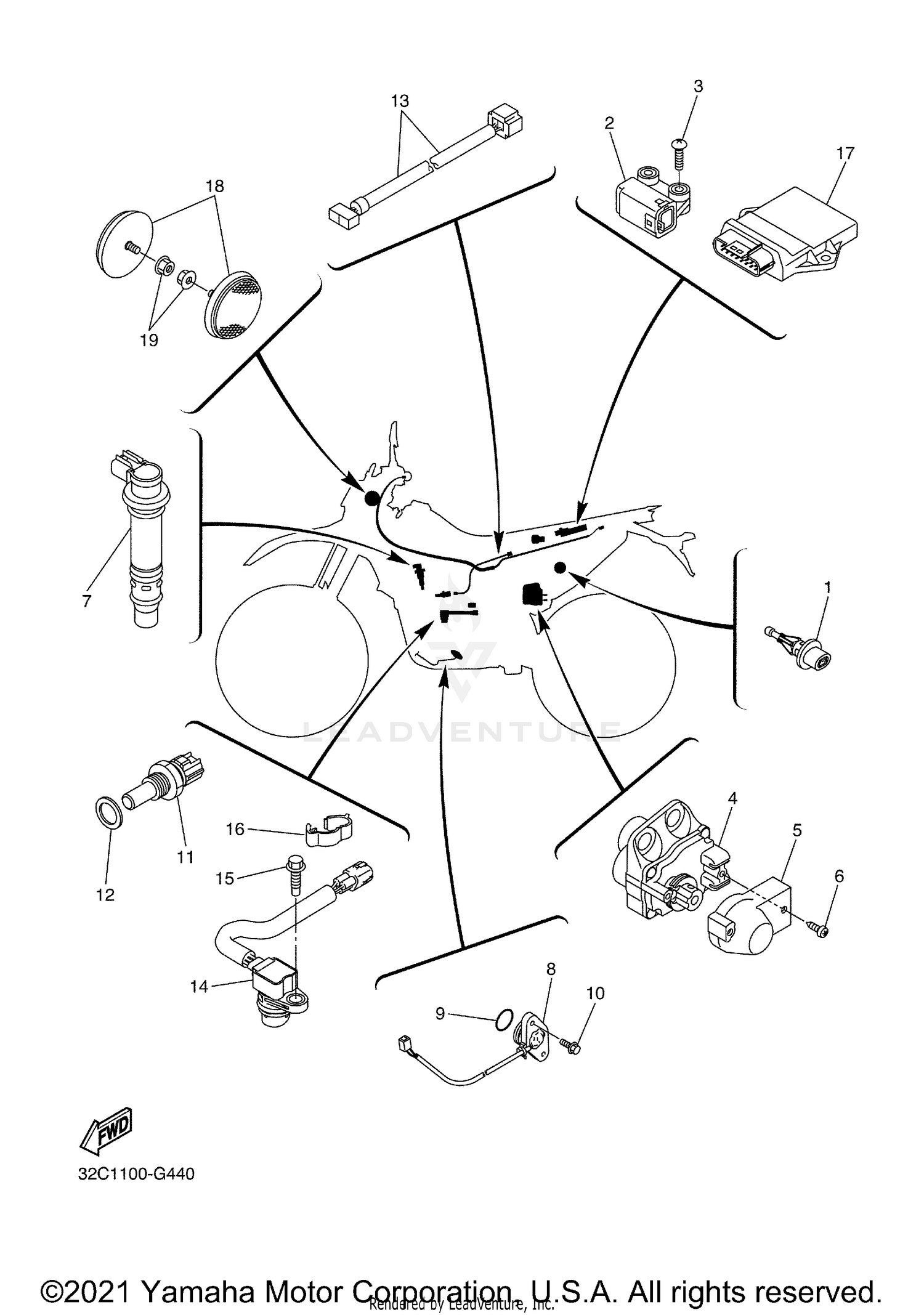

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SENSOR, AIR TEMPRATURE
5VU-85886-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SENSOR, LEAN ANGLE
5PS-82576-01-00
Superseded by 5PS-82576-02-00
|
$96.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SCREW, TAPPING
97702-40030-00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
SERVO MOTOR ASSY
2D1-85820-00-00
Superseded by 2D1-85820-01-00
|
$299.99 | ||
|
Unavailable |
|||
|
#5
COVER, SERVO MOTOR
5VY-85829-00-00
Superseded by 5VY-85829-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, TAPPING
97702-50514-00
Superseded by 97780-50514-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
IGNITION COIL ASSY
8ES-82310-00-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NEUTRAL SWITCH ASSY
32D-82540-00-00
Superseded by 99999-03969-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-21001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90119-05017-00
Superseded by 90110-05038-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
THERMOSENSOR ASSY
5PS-85790-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-12202-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WIRE, SUB LEAD
3D7-82509-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENSOR, SPEED
3D7-83755-00-00
Superseded by 3D7-83755-01-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95022-06014-00
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLAMP
90464-16003-00
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
ENGINE CONTROL UNIT ASSY
32C-8591A-00-00
Superseded by 32C-8591A-01-00
|
$906.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
REFLECTOR, FRONT 1
2EK-85111-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
