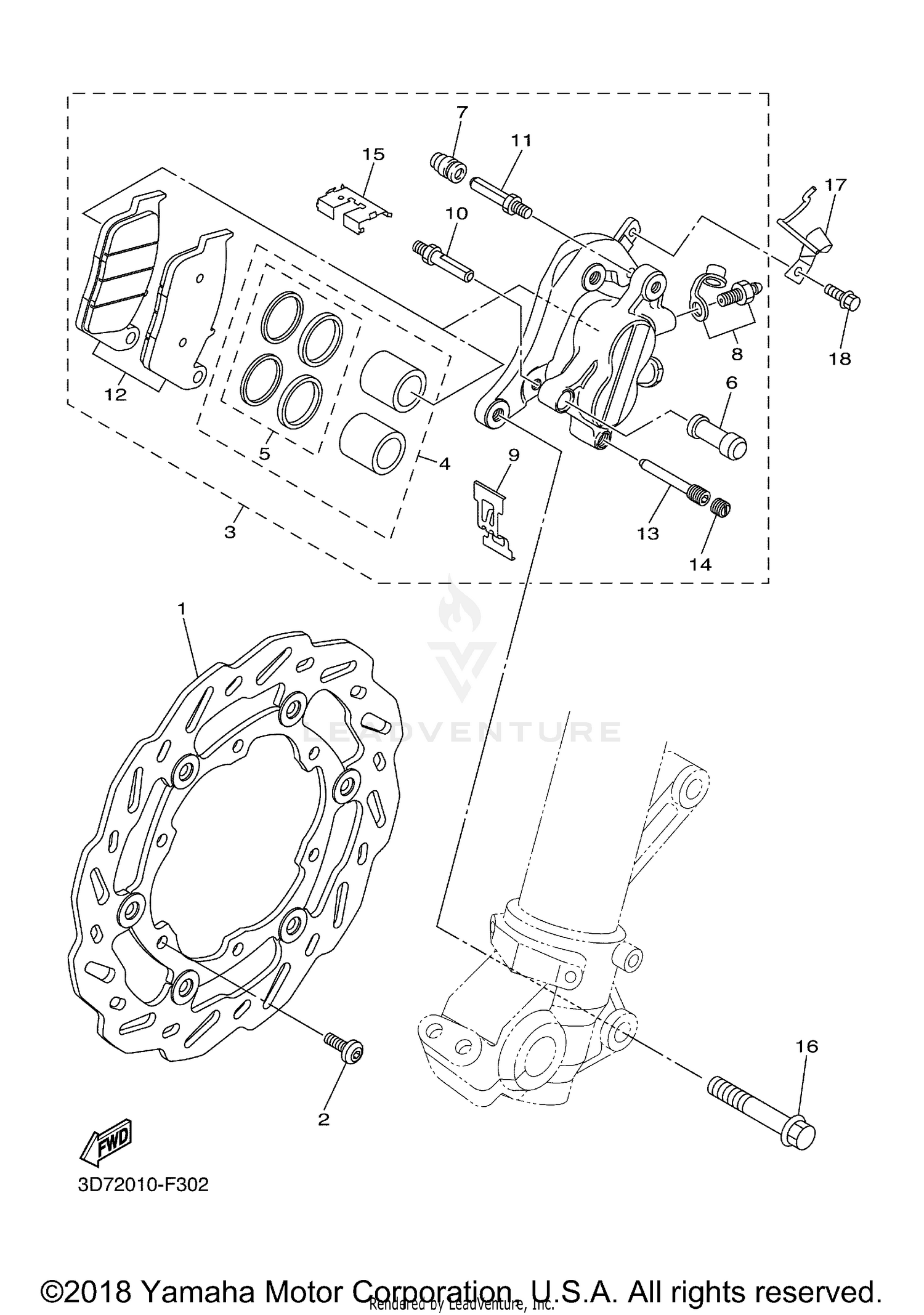

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISK BRAKE ASSY
3D7-2581T-11-00
Superseded by 3D7-2581T-12-00
|
$237.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,HEX. SOCKET BUT
90111-08052-00
Superseded by 90111-08053-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY (LEFT)
3D7-2580T-10-00
|
$382.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
3D7-W0057-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
3JD-W0047-00-00
Superseded by 3JD-25803-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT 2
1UY-25937-51-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOOT, CALIPER
3JD-25917-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, RETURN
4TU-25977-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, SLIDE
3SP-25914-51-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
3D7-25926-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRAKE PAD KIT
3D7-W0045-10-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN 2
4TU-25744-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG
5DH-25916-00-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
RETAINER, CALIPER
3D7-25849-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-08158-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, BRAKE HOSE 1
3D7-25875-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95027-06010-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
