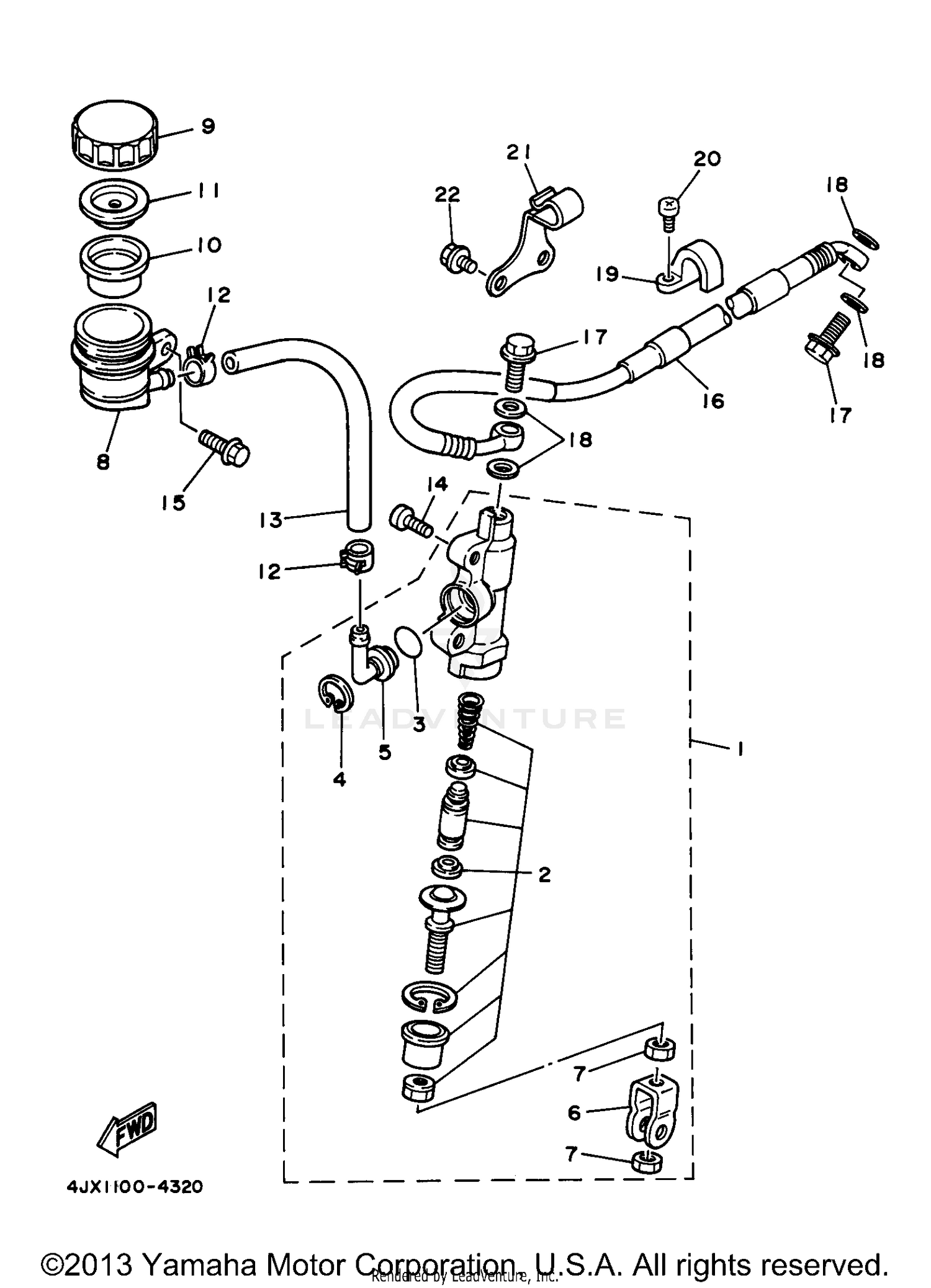

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RR. MASTER CYLINDER ASSY.
3SP-2583V-00-00
|
$220.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
4SS-W0042-50-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CIRCLIP
2VN-25866-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT
2VN-2582A-50-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT
3SP-27222-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
4SS-27218-00-00
Superseded by 95317-08700-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
TANK, RESERVOIR
4EW-25894-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, RESERVOIR
3XP-25852-50-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, DIAPHRAGM
2VN-25854-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH,DIAPHRAGM
2VN-25855-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-11044-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE
90445-137H9-00
Superseded by 90445-135H9-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BUTTON HEAD
92014-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HOSE,BRAKE 2
4JX-25873-00-00
Superseded by 99999-03105-00
|
$157.99 | ||
|
Unavailable |
|||
|
#17
BOLT, UNION
90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, BRAKE HOSE 2
2VM-25876-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING
97780-50610-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90465-12362-00
|
$22.99 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE
95027-06008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
