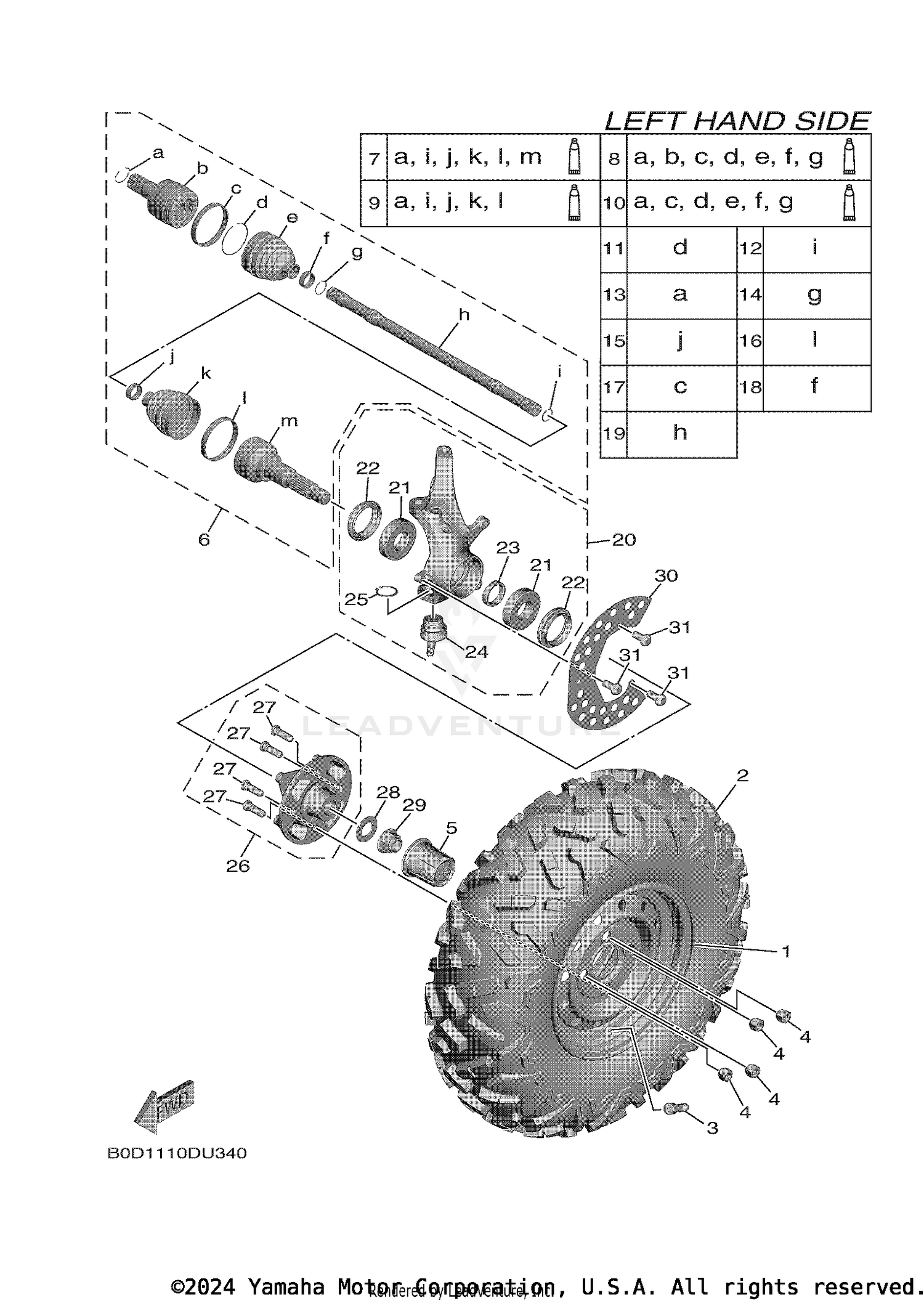

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL COMP.
1XD-F5180-00-00
|
$152.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (26X8.00-12 MU75 4PR TL)
94108-12824-00
|
$201.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-12262-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, WHEEL
2MB-F512A-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
DRIVE SHAFT ASSY
BG4-2518F-00-00
Superseded by BG4-2518F-02-00
|
$209.99 | ||
|
Unavailable |
|||
|
#7
. .BALL JOINT SET
BG4-2510F-00-00
Superseded by BG4-2510F-01-00
|
$399.99 | ||
|
Unavailable |
|||
|
#8
. .DOUBLE OFF SET JOINT
BG4-2510J-00-00
Superseded by BG4-2510J-01-00
|
$384.99 | ||
|
Unavailable |
|||
|
#9
BOOT SET (BALL JOI
BG4-2510G-00-00
Superseded by BG4-2510G-02-00
|
$50.99 | ||
|
Unavailable |
|||
|
#10
. .BOOT SET(DOUBLE OFFSET JOINT
BG4-2510H-00-00
Superseded by BG4-2510H-01-00
|
$64.99 | ||
|
Unavailable |
|||
|
#11
CIRCLIP
BG4-25182-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
2HC-2512H-00-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, SPRING
16B-2536E-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SNAP RING
16B-2512J-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#15
BOOT BAND (BALL JOINT)
2HC-2510U-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOOT BAND (SMALL)
BG4-2512G-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT BAND(DOUBLE OFFSET JOINT)
BG4-2511H-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOOT BAND (BALL JOINT)
BG4-2511G-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT
BG4-2518E-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
STEERING KNUCKLE ASSY (LEFT)
1XD-F3501-00-00
|
$260.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING
93306-20725-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93106-50002-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-35007-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BALL JOINT 2
1XD-23579-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP
99009-32400-00
Superseded by 93410-32075-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
HUB ASSY 2
2MB-F510D-02-00
Superseded by 2MB-F510D-04-00
|
$100.99 | ||
|
Unavailable |
|||
|
#27
BOLT, SERRATION
90114-12005-00
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-25023-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
90179-24006-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
RING, WHEEL 1
1XD-F514A-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, BUTTON HEAD
92012-06012-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
