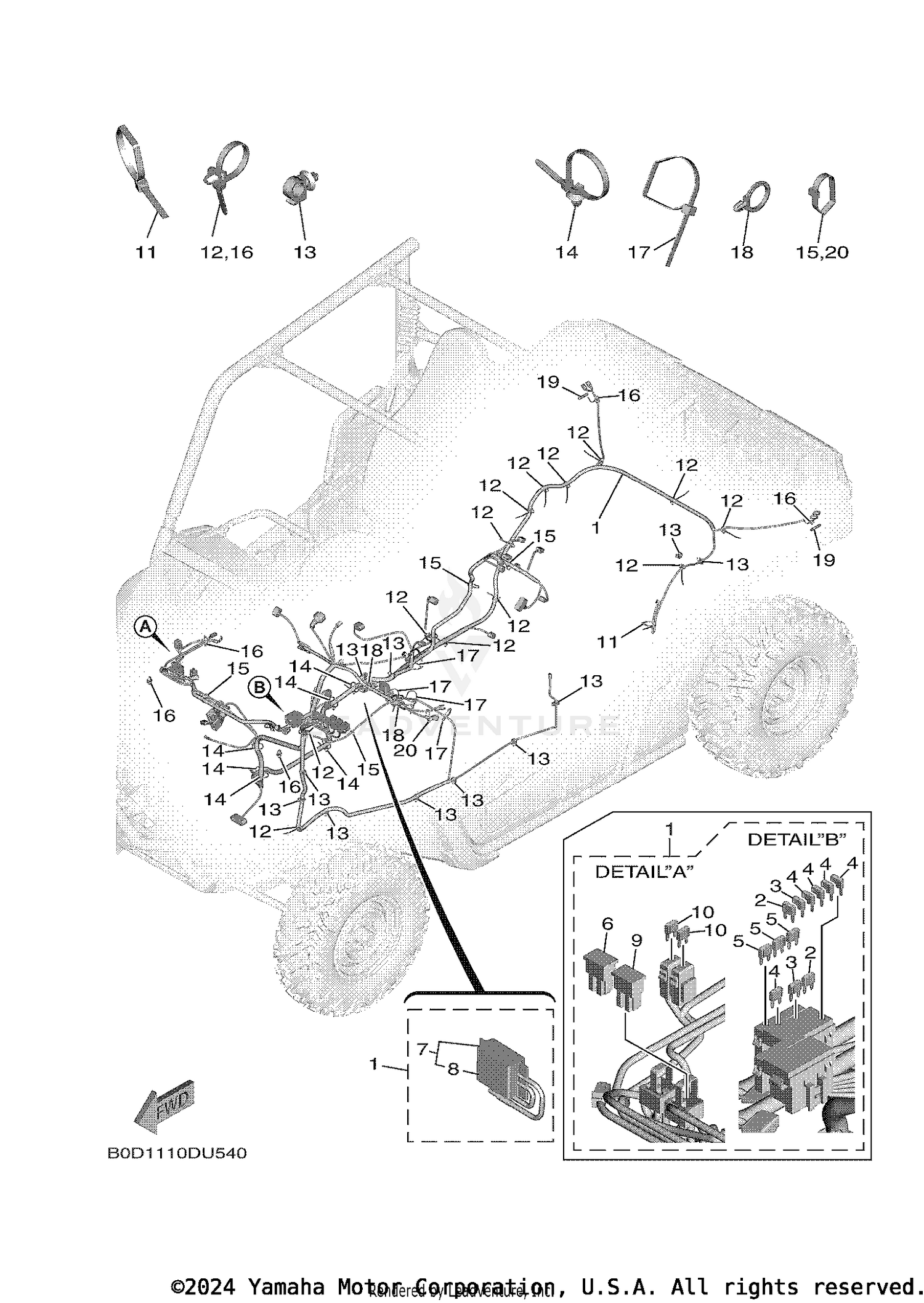

Electrical 3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRE HARNESS ASSY
B8K-82590-00-00
Superseded by B8K-82590-01-00
|
$1,270.99 | ||
|
Unavailable |
|||
|
#2
FUSE (30A-BL)
5JJ-82151-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUSE (7.5A-BL)
5JJ-82151-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
SLOW BLOW FUSE
5PS-82151-00-00
Superseded by JR9-82151-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCUIT BREAKER ASSY
5B4-82180-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
THERMO SWITCH ASSY
5B4-82560-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE (50A)
5JW-82151-10-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
FUSE (20A-BL)
5JJ-82151-20-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90464-48800-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
5B4-F1338-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-12830-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
1NS-F1338-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-31827-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
5B4-F1338-00-00
|
$3.60 | ||
|
Unavailable |
|||
|
#17
CLAMP
90464-40825-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-19815-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
MOLD, FUEL TANK
5VN-24188-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90464-31827-00
|
$3.70 | ||
|
Unavailable |
|||
