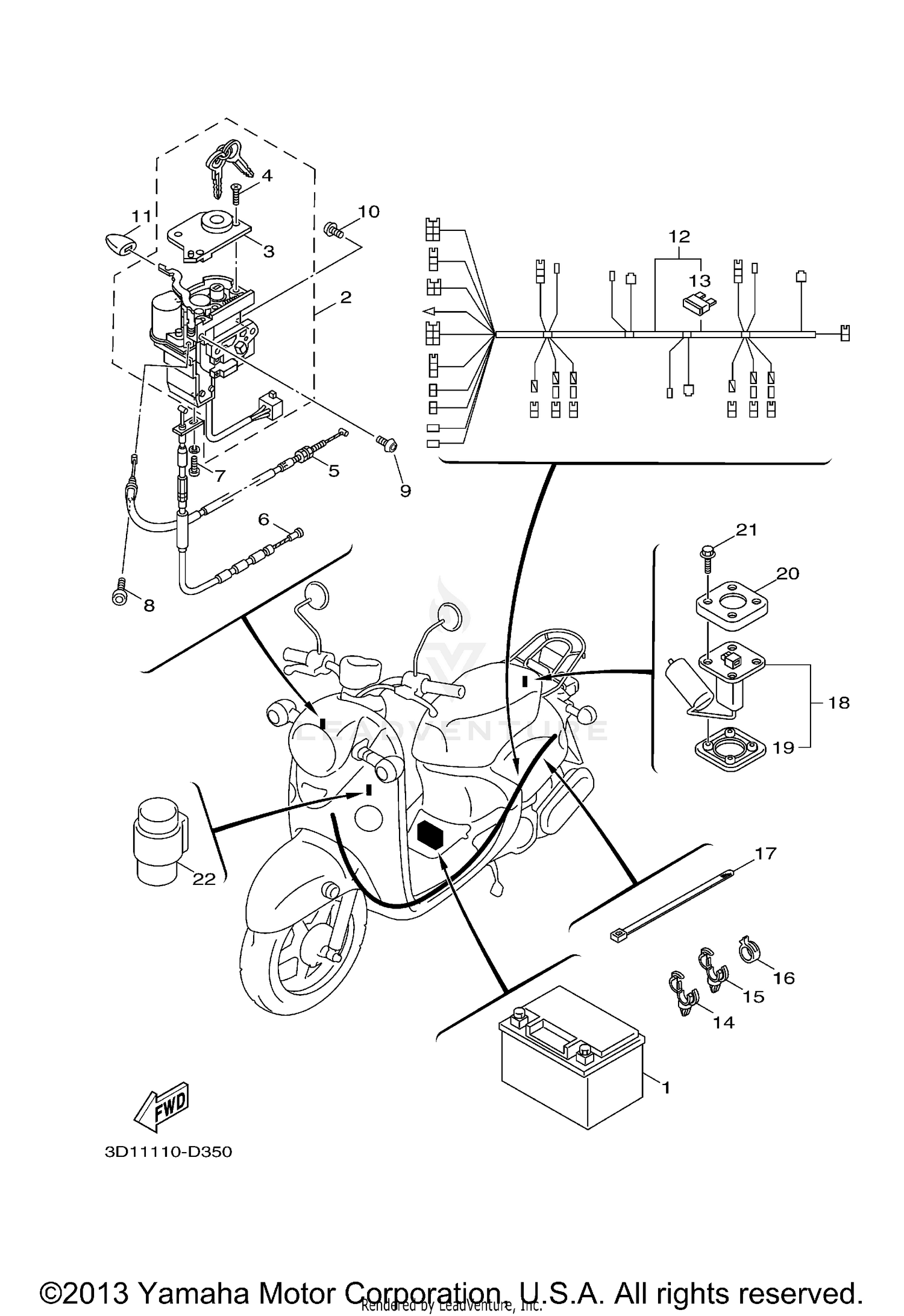

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
YTX5LBS YUASA BATTE
BTG-GTX5L-BS-00
Superseded by YTX-5LBS0-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
KEY SET
5ST-82020-09-00
Superseded by 5ST-WH202-01-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CASE, UNIT 1
5ST-F831B-00-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, FLAT HEAD
98707-04012-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CABLE, CONTROL 1
5ST-F637E-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, SEAT LOCK
5ST-F478E-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91317-05008-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW
90149-06813-00
|
$0.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
90149-06814-00
|
$0.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
KNOB, 1
5SU-F836X-00-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
WIRE HARNESS ASSY
3D1-H2590-00-00
Superseded by 3D1-H2590-01-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUSE (7.5A)
5ML-H2151-20-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-20803-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-20803-00
|
$1.15 | ||
|
Unavailable |
|||
|
#16
CLAMP
90464-25801-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90464-12812-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENDER UNIT ASSY
5ST-X8575-00-00
Superseded by 5ST-XH575-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, SENDER UNIT
4US-85753-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
RETAINER
5SU-H5757-00-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, WITH WASHER
90119-05071-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
FLASHER RELAY ASSY
5CA-H3350-10-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
