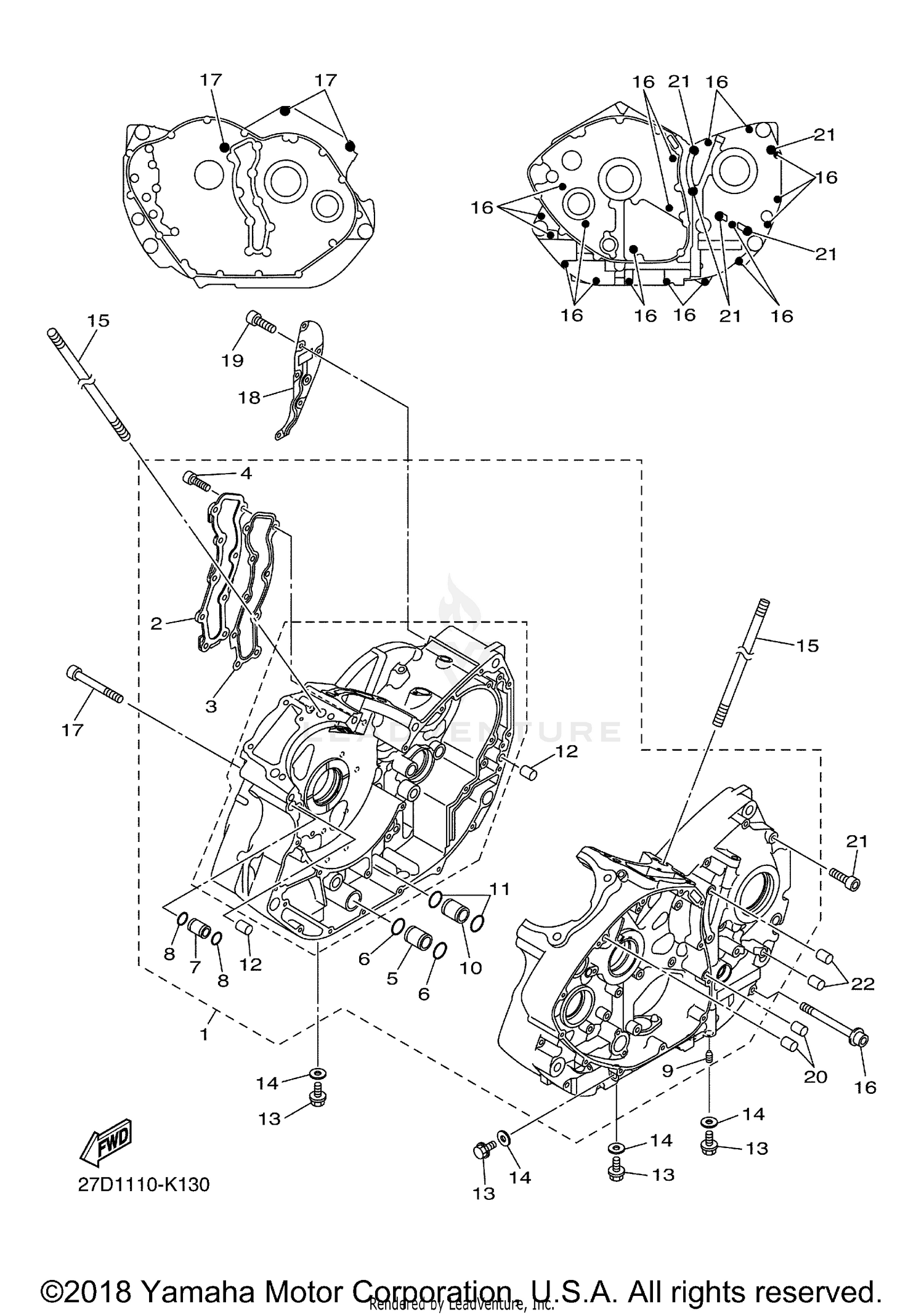

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
3D8-15100-28-00
|
$1,688.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, CRANKCASE 3
3D8-15431-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CRANKCASE COVER 3
3D8-15462-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
90110-06174-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
NOZZLE ASSY., 2
3D8-15154-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-18319-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NOZZLE 1
1D7-15138-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-10003-00
Superseded by 93210-10001-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
NOZZLE 1
2H7-15138-00-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
NOZZLE 3
3D8-15155-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-22164-00
Superseded by 93210-22298-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PIN, DOWEL
99530-10116-00
|
$4.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE
95022-10016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, UNION
90430-10171-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD
90116-12011-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06144-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
91314-10110-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEPERATOR, OIL
3D8-15368-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
91312-08035-00
Superseded by 91317-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, DOWEL
99590-10114-00
|
$5.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
