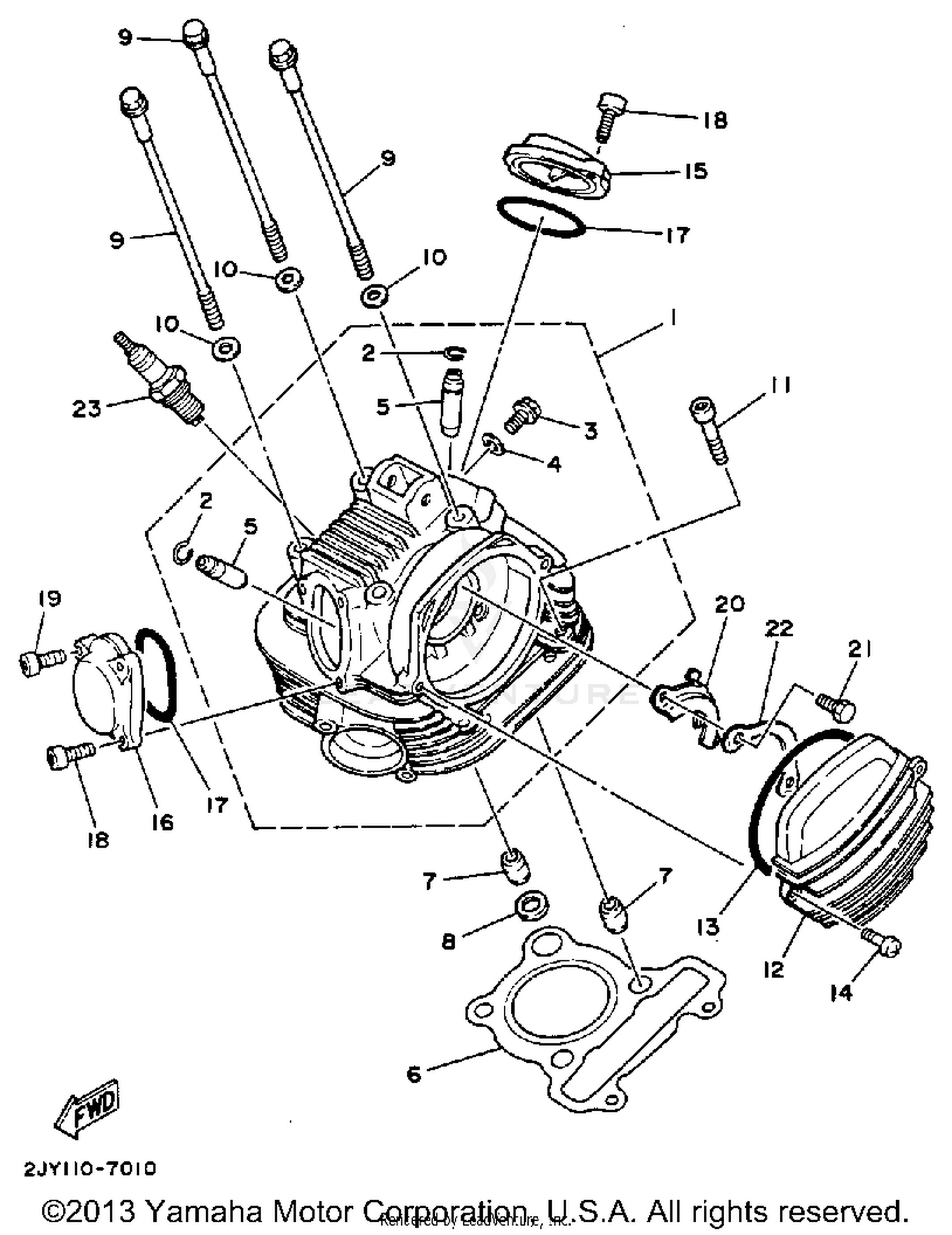

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
15A-11110-01-00
Superseded by 15A-11110-04-00
|
$736.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CIRCLIP
93440-10085-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, HEXAGON
90153-06045-00
Superseded by 90153-06029-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GUIDE, VALVE 1
5H0-11133-10-00
Superseded by 5H0-11133-11-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD 1
1NU-11181-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-14131-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-08195-00
Superseded by 90105-08160-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-080L7-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91316-08045-00
Superseded by 91317-08045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, CYLINDER HEAD SIDE 3
15A-11185-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93211-05471-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW,PAN HEAD
98516-06020-00
Superseded by 98517-06020-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
COVER, CYLINDER HEAD SIDE 2
15A-11186-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, CYLINDER HEAD SIDE 3
15A-11187-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-57634-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT
91316-06018-00
Superseded by 91317-06018-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90109-06717-00
Superseded by 91317-06018-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
PLATE
5H0-1111F-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
97013-06012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, LOCK
90215-06184-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
D8EA NGK SPLUG 10P
NGK-D8EA0-00-00
Superseded by D8E-A0000-00-00
|
$4.40 | ||
|
Unavailable |
|||
