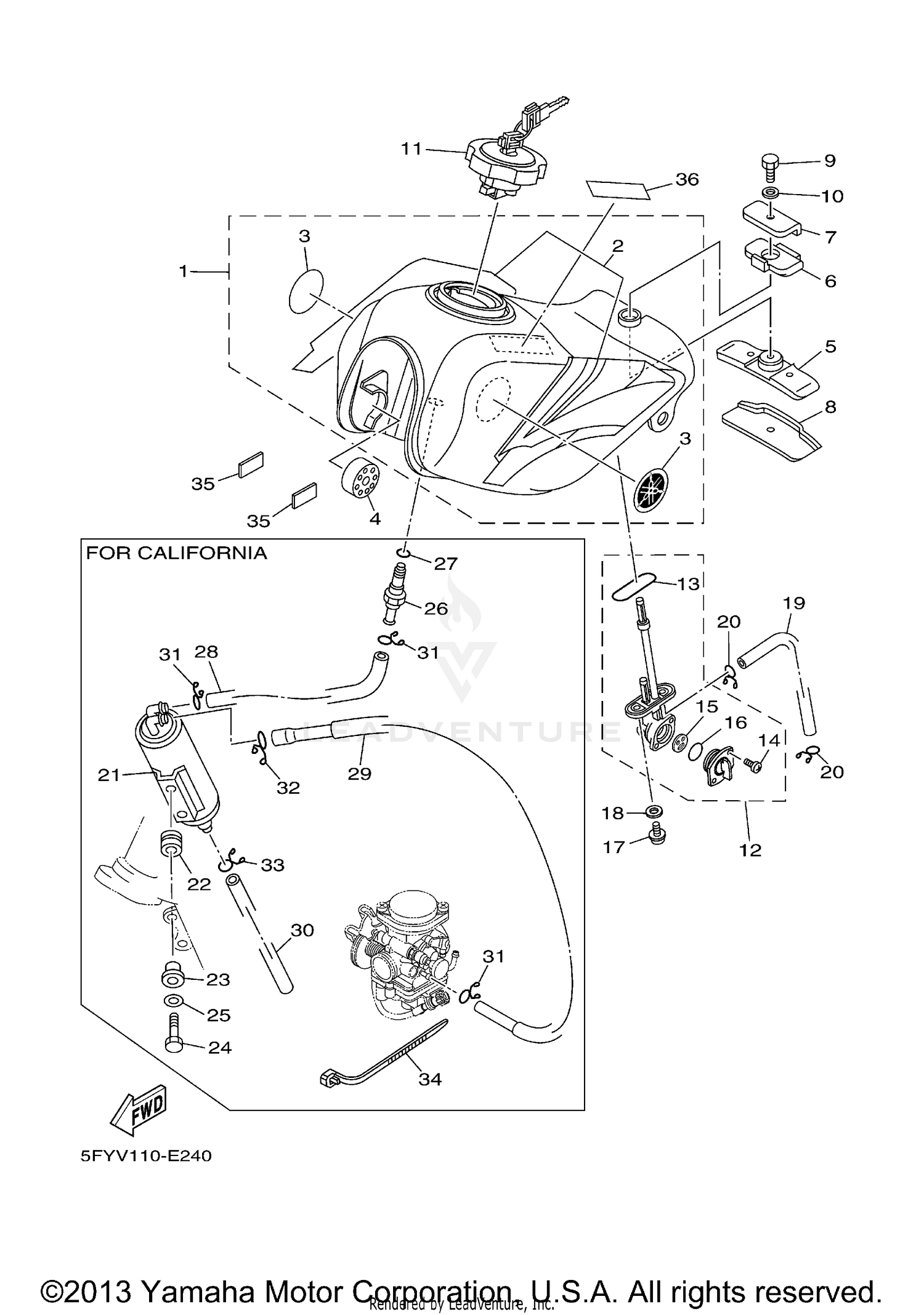

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5RS-Y2410-10-07
|
$658.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK COMP.
5RS-Y2410-30-05
|
$908.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRAPHIC SET
5FY-24240-60-00
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUNING FORK MARK
5VX-2411B-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 1
4L0-24181-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, LOCATING 2
30X-24182-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 3
30X-24183-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL
30X-24186-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPECIAL
30X-24187-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97007-06012-00
Superseded by 97017-06012-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CAP ASSY
11H-24602-03-00
Superseded by 11H-24602-10-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CAP ASSY
51K-24602-01-00
Superseded by 51K-24602-10-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUEL COCK ASSY 1
23F-24500-11-00
Superseded by 23F-24500-20-00
|
$45.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING
4X8-24512-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE PACKING
3AC-24523-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL, COCK
3AJ-24534-01-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HOSE (L110)
90445-10007-00
Superseded by 90445-10752-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CANISTER ASSY
4BE-24170-00-00
|
$330.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROMMET
90480-15342-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-063G3-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
Unavailable |
|||
|
#26
ROLL OVER VALVE ASSY
20K-24180-00-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-10166-00
Superseded by 93210-11453-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
HOSE
90445-10017-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE
90445-10018-00
Superseded by 90445-10045-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE
90445-11M27-00
Superseded by 90445-117F2-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#32
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
CLIP
90467-11106-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#35
PROTECTOR, FUEL TANK
2JX-24141-00-00
Superseded by 18A-21778-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
LABEL, CAUTION
5GK-2118K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
