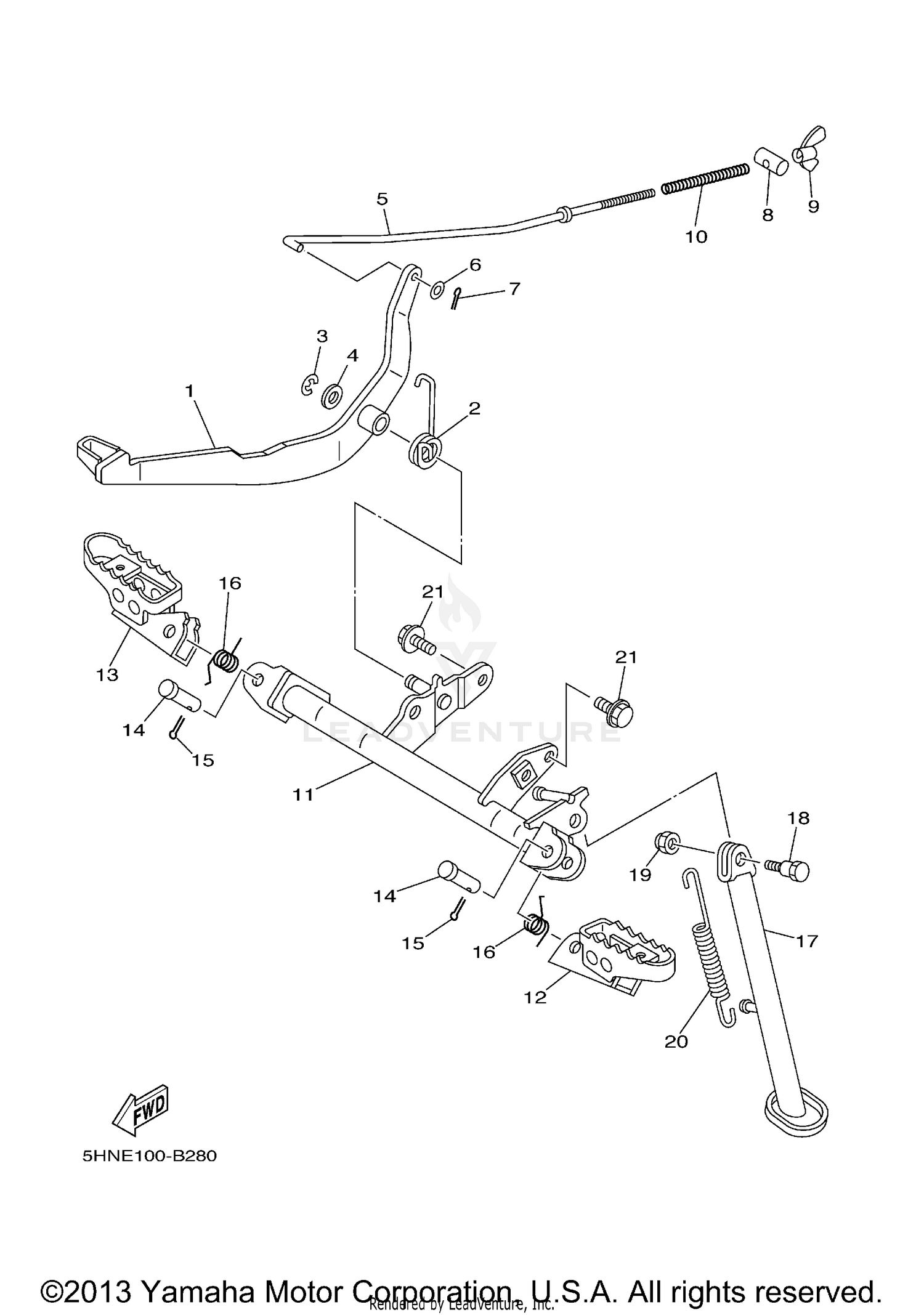

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
5HN-27211-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, TORSION
90508-29578-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP (E) (99001-09600-00)
99001-09600-00
Superseded by 99080-09600-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92907-12600-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, BRAKE
5HN-27231-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PIN
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, WING
90175-06013-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION
90501-10245-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
FOOTREST 1
5HN-27411-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FOOTREST 1
3LD-27411-01-00
Superseded by 3LD-27411-10-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FOOTREST 2
3LD-27421-01-00
Superseded by 3LD-27421-10-00
|
$52.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PIN, CLEVIS
90240-10002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SPRING, TORSION
90508-20007-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAND, SIDE
5HN-27311-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90109-08009-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SELF-LOCKING
90185-08055-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, TENSION
90506-28100-00
Superseded by 90506-26270-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE
90105-083A2-00
Superseded by 95817-08020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
