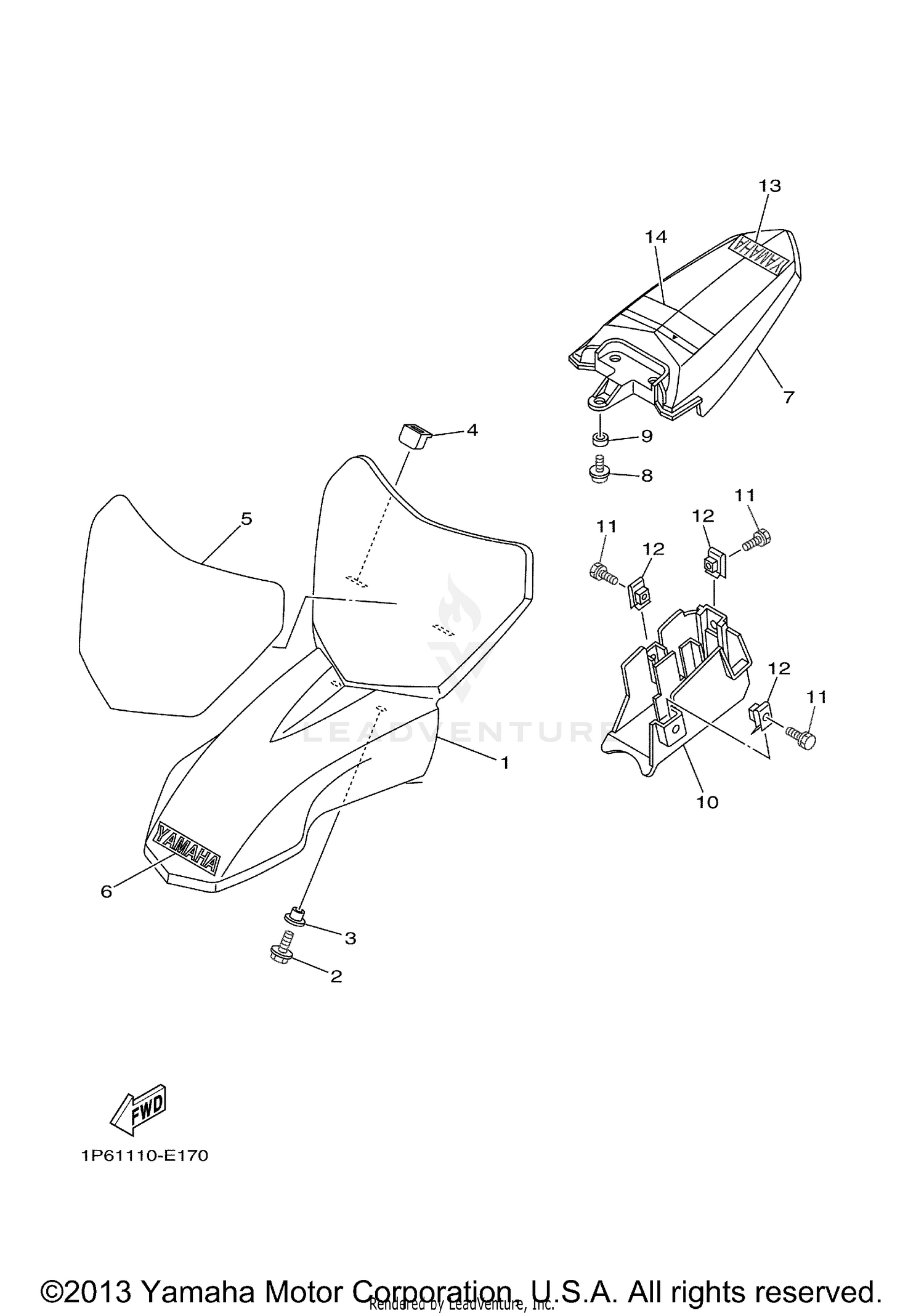

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
1P6-F1511-00-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
BOLT, FLANGE
9580N-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
COLLAR
1P6-F1544-00-00
Superseded by 90387-07818-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-16185-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRAPHIC 1
1P6-F1569-00-00
Superseded by 1P6-F1569-10-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
EMBLEM, YAMAHA
1P6-F153E-00-00
Superseded by 1P6-F153E-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, REAR
1P6-F1611-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, WITH WASHER
90159-06830-00
Superseded by 90159-06182-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-07808-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOX
1P6-F160E-00-00
Superseded by 1P6-F160E-01-00
|
$24.99 | ||
|
Unavailable |
|||
|
#11
BOLT, WITH WASHER
9750N-06514-00
Superseded by 97502-06514-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPRING
90183-06023-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
EMBLEM, YAMAHA
1P6-F153E-00-00
Superseded by 1P6-F153E-10-00
|
$12.99 | ||
|
Unavailable |
|||
|
#14
LABEL, CAUTION
3PT-2118K-A0-00
Superseded by 3PT-2118K-A2-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
