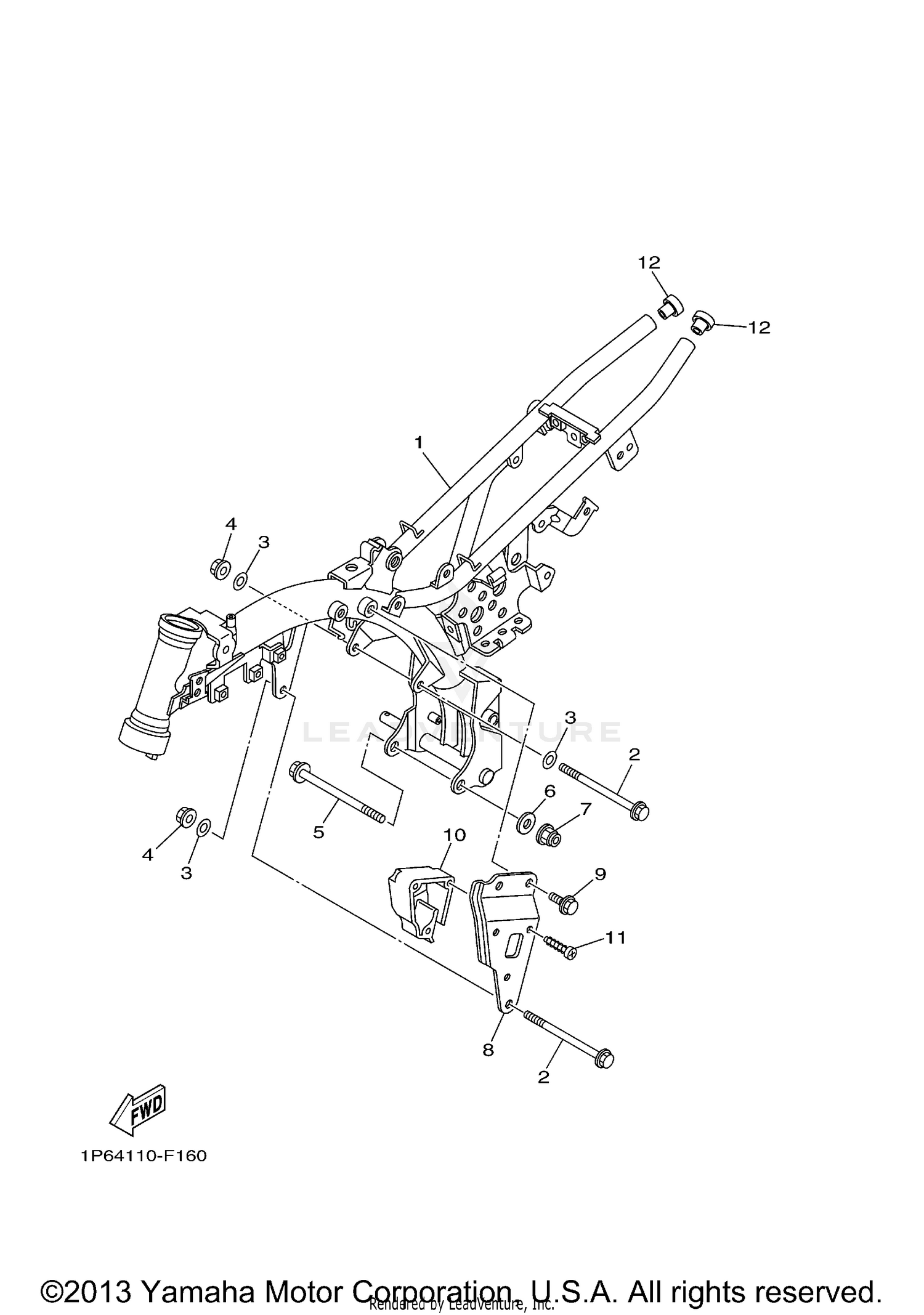

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
1P6-F1110-20-00
|
$390.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
90105-08097-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
92907-08200-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-10123-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLAIN
92907-10200-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
STAY, ENGINE 7
1P6-F1387-00-00
Superseded by 1P6-F1387-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,FLANGE (JN5)
9581N-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
COVER
1P6-F117F-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, TAPPING
97707-50516-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG
90338-16802-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
