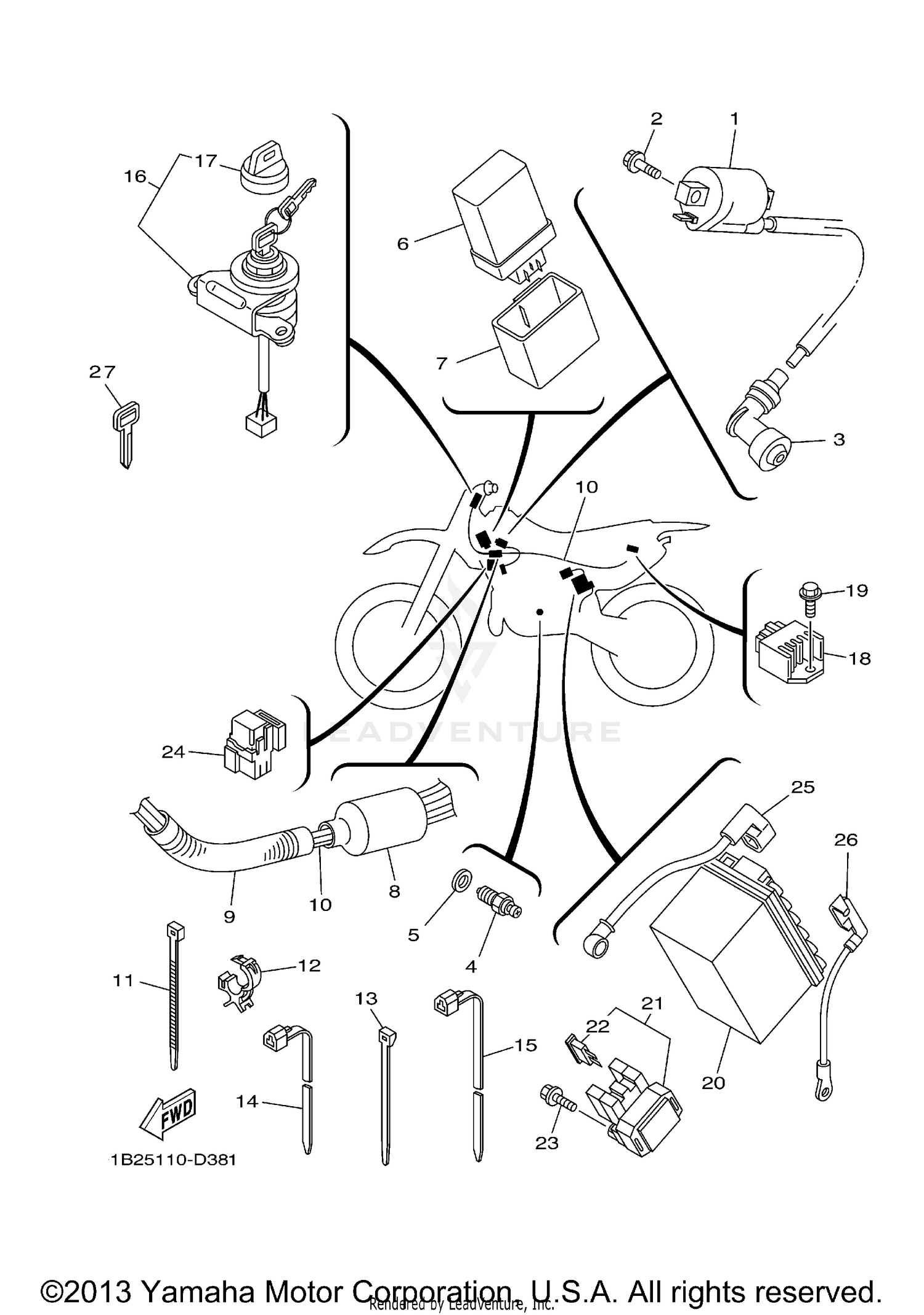

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSY
4KJ-82310-10-00
Superseded by 3KJ-82310-14-00
|
$41.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
9502M-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PLUG CAP ASSY
4BP-82370-00-00
Superseded by 4BP-82370-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEUTRAL SWITCH ASSY
4KM-82540-00-00
Superseded by 4GY-82540-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
C.D.I. UNIT ASSY
5HP-85540-00-00
Superseded by 5HP-85540-01-00
|
$237.99 | ||
|
Unavailable |
|||
|
#7
BAND
1B2-H5546-00-00
Superseded by 5HP-85546-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, CONNECTER
1B2-H2599-00-00
Superseded by 8Y0-82599-00-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, WITH SPRING (L=130)
90447-19004-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WIRE HARNESS ASSY
1B2-H2590-10-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90464-15192-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND
90465-13152-00
Superseded by 1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-13077-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
MAIN SWITCH ASSY
5HP-82510-00-00
Superseded by 5HP-82510-01-00
|
$131.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CAP, KEY
3HN-82579-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
RECTIFIER & REGULATOR ASSY
5HH-H1960-00-00
Superseded by 4CK-81960-01-00
|
$217.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
9502M-06012-00
Superseded by 95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
GTX4LBS GS BATTERY
3UC-82100-11-00
Superseded by GTX-4LBS0-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
STARTER RELAY ASSY (RC19-028)
5HH-81940-01-00
Superseded by 5HH-81940-02-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE (10A-BL)
42X-82151-00-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE
9502M-06008-00
Superseded by 95027-06008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RELAY ASSY (8DM-00)
8DM-81950-00-00
|
$47.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WIRE, PLUS LEAD
1B2-H2115-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WIRE, MINUS LEAD
1B2-H2116-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BLANK KEY (B-TYPE)
90890-56002-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#
BLANK KEY (A-TYPE)
90890-56001-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
