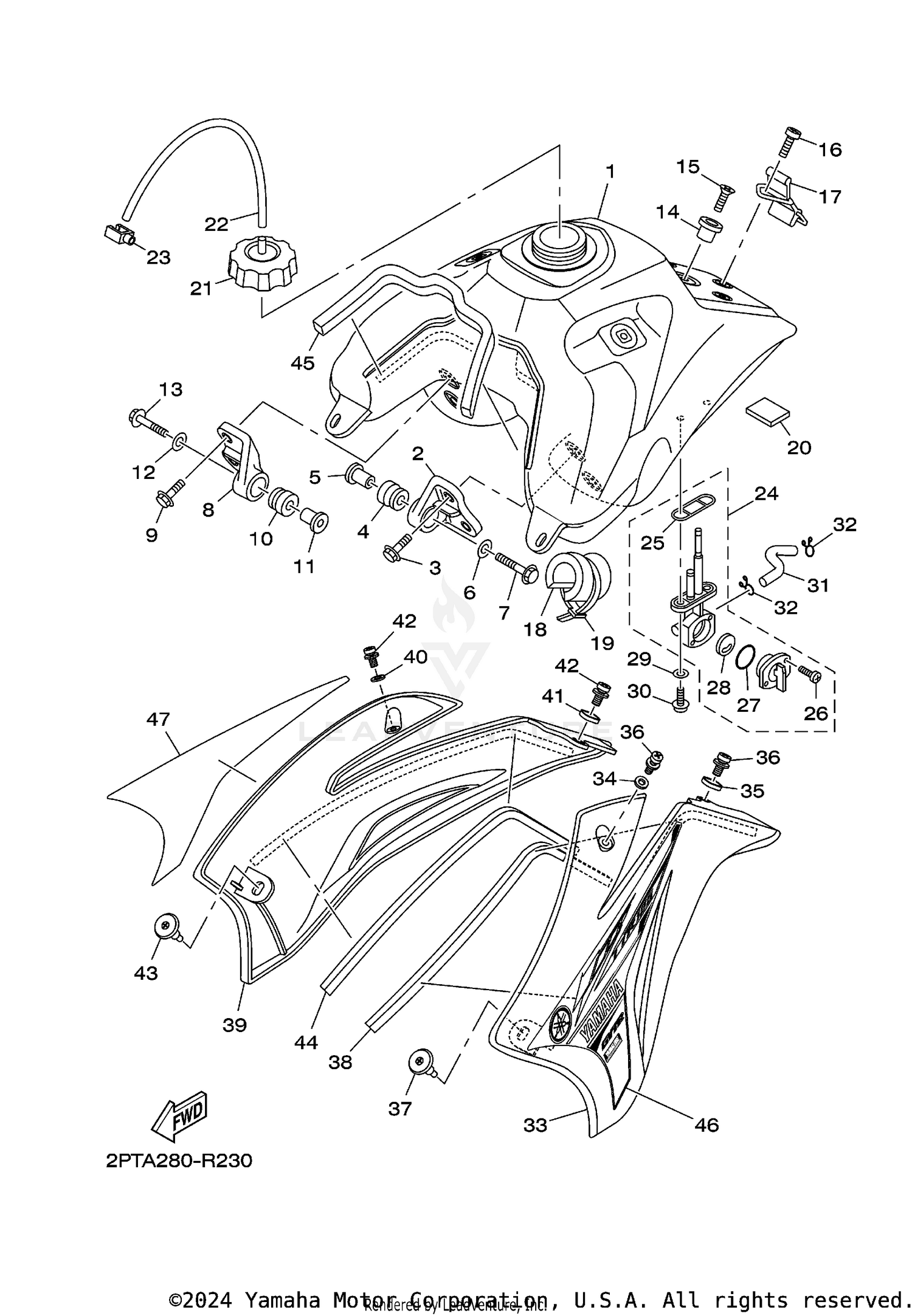

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
1B2-24110-10-00
Superseded by 1B2-24110-11-00
|
$386.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TANK BRACKET ASSY
1B2-F4104-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
9582M-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
GROMMET
90480-18549-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER, SPECIAL
1B2-F4186-00-00
Superseded by 3JD-24186-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT,FLANGE
9582M-06030-00
Superseded by 95817-06030-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
TANK BRACKET ASSY 2
1B2-F4105-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
9582M-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Unavailable |
|||
|
#10
GROMMET
90480-18549-00
|
$11.49 | ||
|
Unavailable |
|||
|
#11
WASHER, SPECIAL
1B2-F4186-00-00
Superseded by 3JD-24186-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$6.49 | ||
|
Unavailable |
|||
|
#13
BOLT,FLANGE
9582M-06030-00
Superseded by 95817-06030-00
|
$4.65 | ||
|
Unavailable |
|||
|
#14
BRACKET, SEAT
1B2-F412F-00-00
Superseded by 4EW-2412F-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SCREW, FLAT HEAD
9870M-06020-00
Superseded by 98707-06020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, BIND
9890M-06016-00
Superseded by 98907-06016-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND, TANK FITTING 1
1B2-F4173-00-00
Superseded by 3SP-24173-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, SIDE COVER
1B2-F4145-00-00
Superseded by 1B2-F4145-01-00
|
$1.40 | ||
|
Unavailable |
|||
|
#19
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER 1
1B2-F8415-00-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP ASSY
2FJ-24610-10-00
Superseded by 2FJ-24610-20-00
|
$74.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PIPE, BREATHER
5B6-21826-10-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90464-13003-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUEL COCK ASSY 1
4X8-24500-10-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
4X8-24512-10-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAL, COCK
3AJ-24534-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
VALVE PACKING
3AC-24523-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
HOSE
90445-10041-00
Superseded by 90445-10829-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-09W06-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SCOOP, AIR 1
1B2-F137W-10-00
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-10W66-00
Superseded by 90387-060T4-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
COLLAR
1B2-F1749-00-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, WITH WASHER
90159-06182-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
RIVET
90269-07076-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
DAMPER, PLATE 2
1B2-F414H-00-00
Superseded by 1S4-2414H-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCOOP, AIR 2
1B2-F137X-10-00
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
COLLAR
90387-10W66-00
Superseded by 90387-060T4-00
|
$11.49 | ||
|
Unavailable |
|||
|
#41
COLLAR
1B2-F1749-00-00
|
$1.15 | ||
|
Unavailable |
|||
|
#42
SCREW, WITH WASHER
90159-06182-00
|
$10.49 | ||
|
Unavailable |
|||
|
#43
RIVET
90269-07076-00
|
$8.49 | ||
|
Unavailable |
|||
|
#44
DAMPER, PLATE 2
1B2-F414H-00-00
Superseded by 1S4-2414H-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#45
DAMPER, PLATE 2
1B2-F414J-00-00
Superseded by 1S4-2414H-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#46
GRAPHIC 1
2PT-F137N-30-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
GRAPHIC 2
2PT-F137P-30-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
