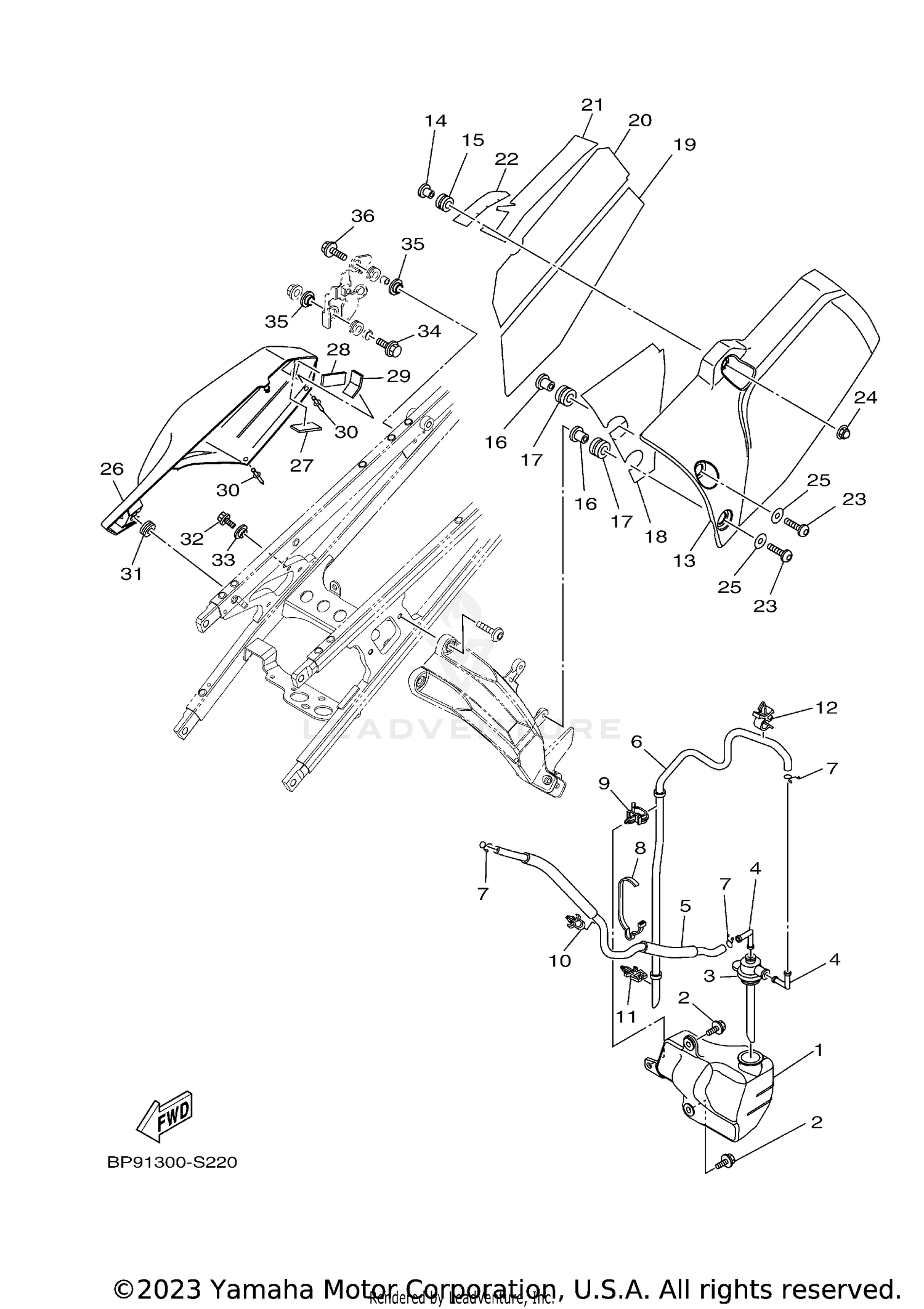

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, RECOVERY
23P-21871-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, WITH WASHER
90119-06137-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP
23P-21875-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
ELBOW
26H-21828-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE 1
23P-21816-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, OVERFLOW
23P-21877-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
90464-07M40-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90464-14M55-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90464-08008-00
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90464-07M56-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90464-09129-00
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
PROTECTOR, MUFFLER 1
2BS-14718-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-087L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-12581-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-10102-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-01025-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAT
2BS-1475P-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAT
2BS-1476P-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAT
2BS-1477P-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAT 5
2BS-1479P-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAT, 6
2BS-1471P-00-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT, CROWN
90176-06047-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-06112-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, SIDE 2
2KB-21721-00-P0
|
$255.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAT, BATTERY
1S3-82122-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER 3
14B-28237-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER 4
3D7-1442H-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
RIVET
90269-06081-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
GROMMET
90480-12325-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
95802-08016-00
Superseded by 95814-08016-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
COLLAR
90387-08079-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
95802-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
COLLAR
90387-06066-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE
95802-06025-00
Superseded by 95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
