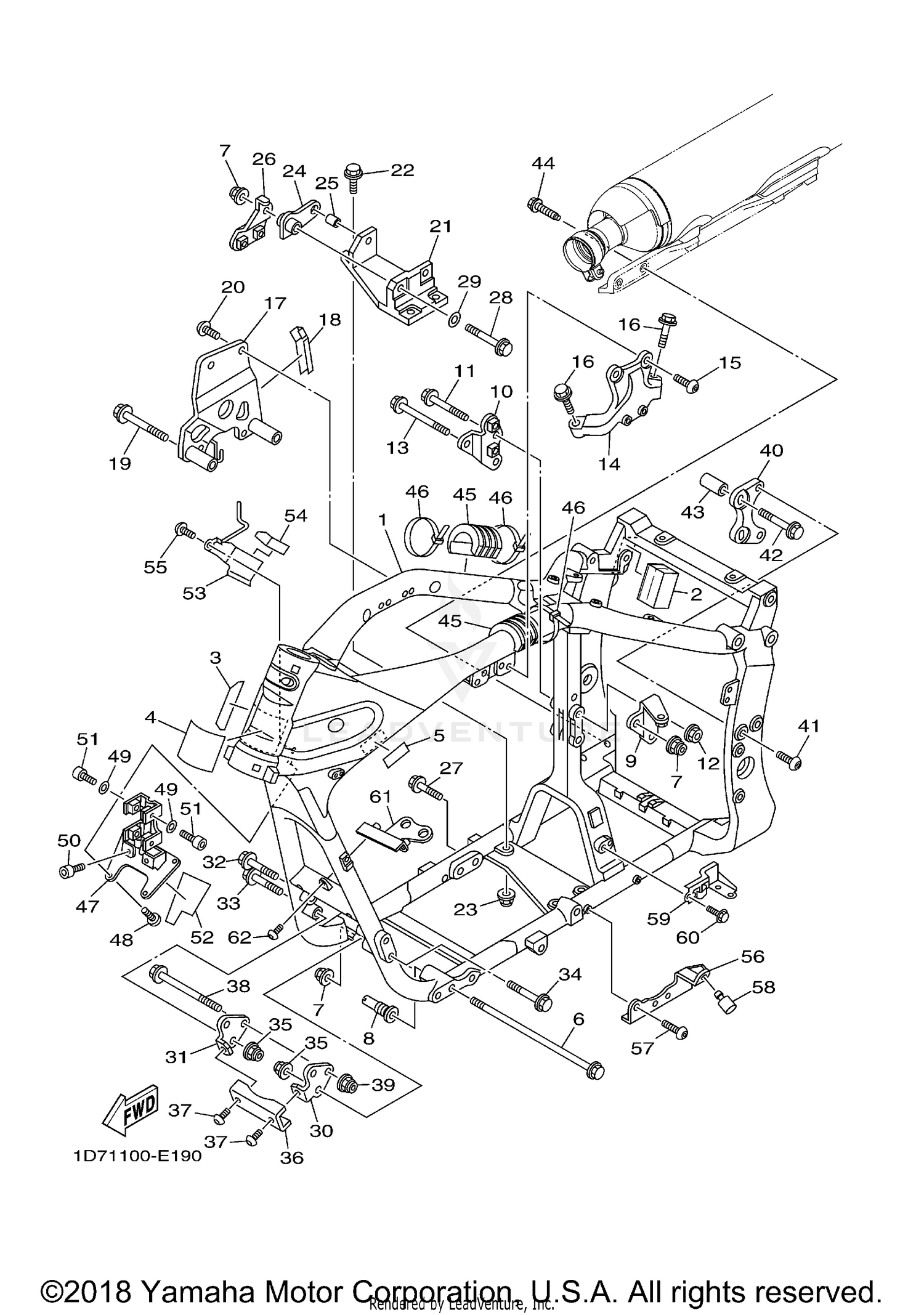

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
1D7-21110-00-00
Superseded by 1D7-21110-01-00
|
$3,044.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER, LOCATING 2
1D7-21779-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, FUEL TANK
1D7-24141-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL
1D7-2639G-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL
5PX-21268-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-126A6-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
95607-12200-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, ENGINE ADJUSTING
5PX-21495-00-00
Superseded by 5PX-21495-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, ENGINE 1
1D7-21315-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, ENGINE 3
5PX-21316-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-10170-00
Superseded by 90105-10737-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-12309-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, ENGINE 3
1D7-21317-00-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. SOCKET BUTTON
90111-10003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-12041-00
Superseded by 90105-12018-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY, ENGINE 6
1D7-21319-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL
1D7-21669-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-12025-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX. SOCKET BUTTON
90111-10003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#21
STAY, ENGINE 4
1D7-21318-00-00
Superseded by 1D7-21318-01-00
|
$278.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95817-10030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
Unavailable |
|||
|
#24
STAY 1
1D7-2142G-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-12033-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
STAY, ENGINE 7
1D7-21387-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, WASHER BASED
95817-10045-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90101-12025-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-126A7-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
STAY 2
1D7-2142H-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#31
STAY 3
1D7-2142J-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE
90105-10049-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
90105-10060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
90105-10167-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, SELF-LOCKING
90185-10008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRACKET, MEMBER 1
1D7-2115L-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, BUTTON HEAD
90111-08039-00
Superseded by 92014-08020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE
90105-12016-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, SELF-LOCKING
90185-12002-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
STAY 1
1D7-2137F-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, HEX. SOCKET BUTTON
90111-10009-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
95817-10075-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
COLLAR
1D7-21116-00-00
Superseded by 1D7-21116-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE
90105-10165-00
Superseded by 90105-10166-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
DAMPER, LOCATING 3
4YR-24183-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLAMP
3MA-82591-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BRACKET, COIL
1D7-21359-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, BUTTON HEAD
92017-06014-00
|
$4.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
WASHER, PLATE
90201-06045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
BOLT, HEXAGON SOCKET HEAD
91380-06020-00
Superseded by 90110-06114-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
DAMPER
1D7-2139X-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#53
HOLDER, WIRE 2
1D7-21598-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
SEAL
1D7-21269-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT, HEX. SOCKET BUTTON
90111-06010-00
Superseded by 90111-06146-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#56
BRACKET, HORN
1D7-21343-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT, BUTTON HEAD
90111-08027-00
Superseded by 92012-08020-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#58
STOPPER, MAIN STAND
1D7-27114-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
BRACKET, SWITCH
1D7-21453-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#61
STAY, OIL COOLER
1D7-2136H-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
BOLT, BUTTON HEAD
92017-06020-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
