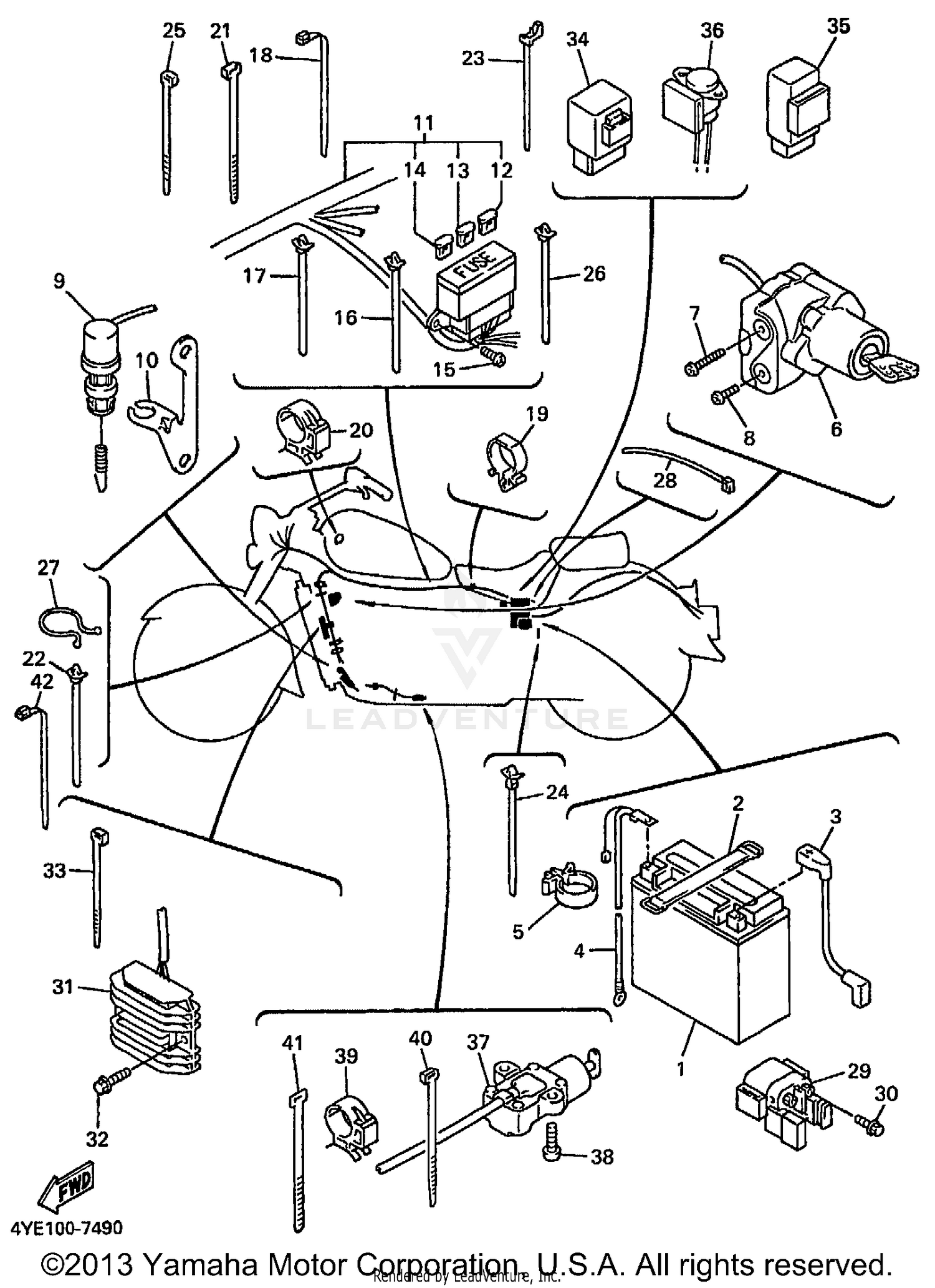

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
YTX20LBS YUASA BATT
4SH-82100-21-00
Superseded by YTX-20LBS-00-00
|
$165.99 | ||
|
Unavailable |
|||
|
#2
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE, PLUS LEAD
4NK-82115-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE, MINUS LEAD
4NK-82116-00-00
Superseded by 4JH-82116-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
90464-13133-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
MAIN SWITCH ASSY
4YE-82510-01-00
Superseded by 4YE-82510-02-00
|
$329.99 | ||
|
Unavailable |
|||
|
#7
BOLT
91317-06055-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91317-06014-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
STOP SWITCH ASSY
4NK-82530-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#10
STAY, STOP SWITCH
4NK-82539-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#11
WIRE HARNESS ASSEMBLY
4YE-82590-00-00
|
$188.99 | ||
|
Unavailable |
|||
|
#12
FUSE (10A-BL)
42X-82151-00-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
FUSE (15A-BL)
36Y-82151-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUSE (5A-BL)
1NL-82151-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SCREW, BIND
98907-06012-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90464-12089-00
Superseded by 90464-10112-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLAMP
90464-12089-00
Superseded by 90464-10112-00
|
$9.49 | ||
|
Unavailable |
|||
|
#18
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-24230-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90464-10190-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90464-12089-00
Superseded by 90464-10112-00
|
$9.49 | ||
|
Unavailable |
|||
|
#23
CLAMP
90464-15200-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
90464-10112-00
|
$9.49 | ||
|
Unavailable |
|||
|
#25
CLAMP
90464-16061-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90464-12036-00
Superseded by 90464-10112-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
CLAMP
90464-30040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90464-16061-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
STARTER RELAY ASSY (RC19-005)
4BH-81940-00-00
Superseded by 4BH-81940-02-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
95027-06008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
RECTIFIER/REG ASY
3LS-81960-01-00
Superseded by 3VD-81960-01-00
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BAND, SWITCH CORD
90464-12045-00
Superseded by 25G-83936-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
RELAY ASSY
3EN-81950-00-00
Superseded by 3EN-81950-02-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
RELAY ASSY (1UY-92)
1UY-81950-92-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
THERMOSWITCH ASSY
3BT-82560-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SWITCH, SIDE STAND
3LD-82566-50-00
Superseded by 3LD-82566-51-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP
90464-10190-00
|
$10.49 | ||
|
Unavailable |
|||
|
#40
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#41
BAND, SWITCH CORD
90464-12045-00
Superseded by 25G-83936-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#42
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Unavailable |
|||
