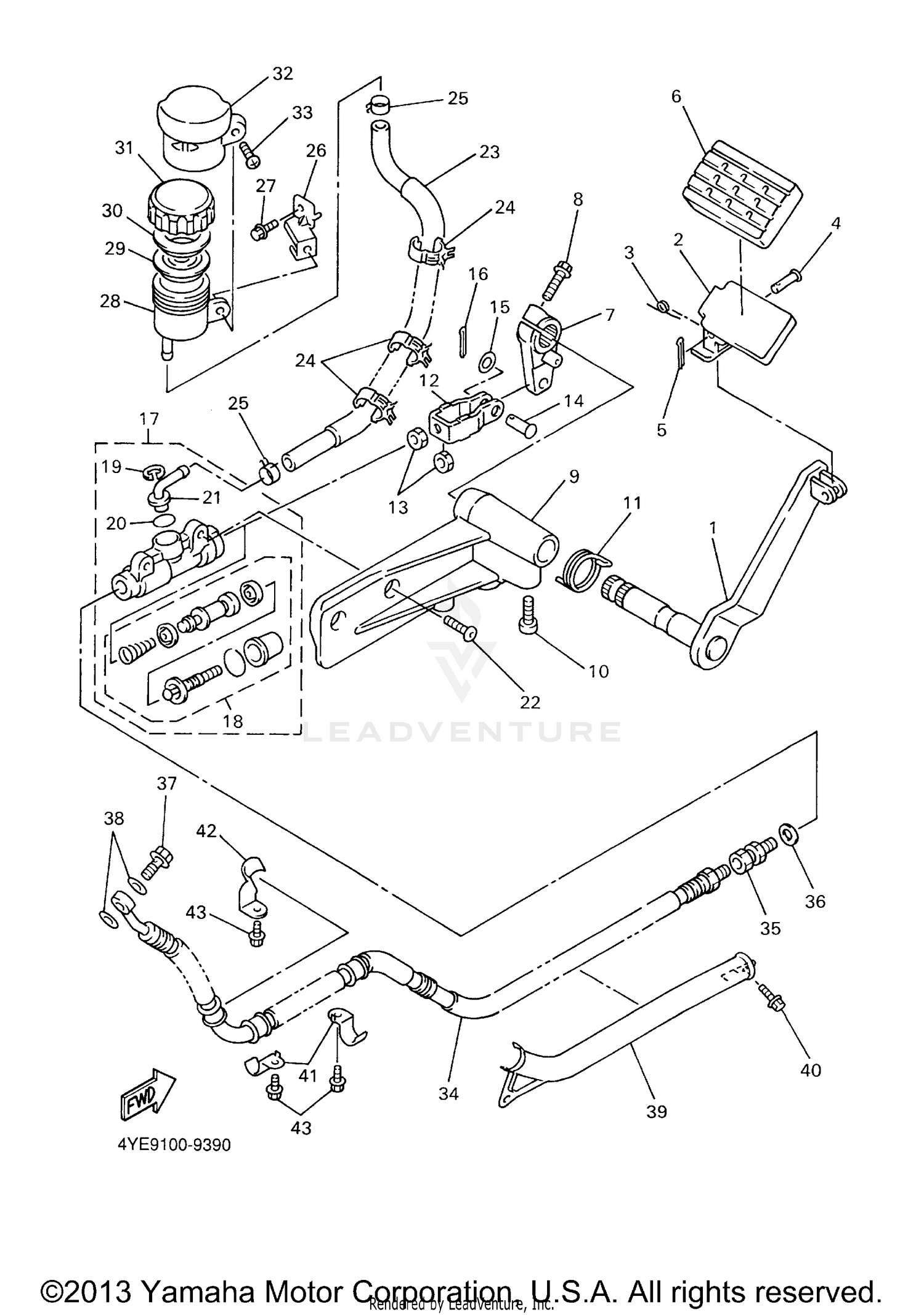

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
4NK-27211-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PEDAL, BRAKE
4NK-27242-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TORSION
90508-186B1-00
Superseded by 90508-18023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
91701-06022-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CAP
4NK-27285-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER
4NK-27262-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BRACKET 4
4NK-2741L-00-00
Superseded by 4NK-2741L-01-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91317-08014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, SIDE STAND
4NK-27316-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT
4NK-27222-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
95307-08700-00
Superseded by 95317-08700-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, CLEVIS
90240-08013-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-08083-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, COTTER
91401-16012-00
Superseded by 91490-16020-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
REAR MASTER CYLINDER ASSY.
4NK-2583V-00-00
|
$221.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CYLINDER KIT, MASTER
1FK-W0042-50-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
2VN-25866-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
JOINT
3LD-2582A-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, BUTTON HEAD
92014-08020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE, RESERVOIR
4NK-25895-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#24
CLAMP
90464-20191-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-14057-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BRACKET, RESERVE TANK
4NK-21228-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
95027-06010-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
TANK, RESERVOIR
31A-25894-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
DIAPHRAGM, RESERVOIR
360-25854-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP, RESERVOIR
2KF-25852-50-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER, RESERVOIR TANK
4NK-25888-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, BUTTON HEAD
92014-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE, BRAKE 4
4NK-2581J-02-00
|
$95.99 | ||
|
Unavailable |
|||
|
#35
JOINT
3LC-25885-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BOLT, UNION
90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Unavailable |
|||
|
#39
HOLDER, BRAKE HOSE
4NK-25887-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (SMALL HEAD)
95024-06012-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOLDER, BRAKE HOSE 2
3XV-25876-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
HOLDER, BRAKE HOSE 2
4NK-25876-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$10.49 | ||
|
