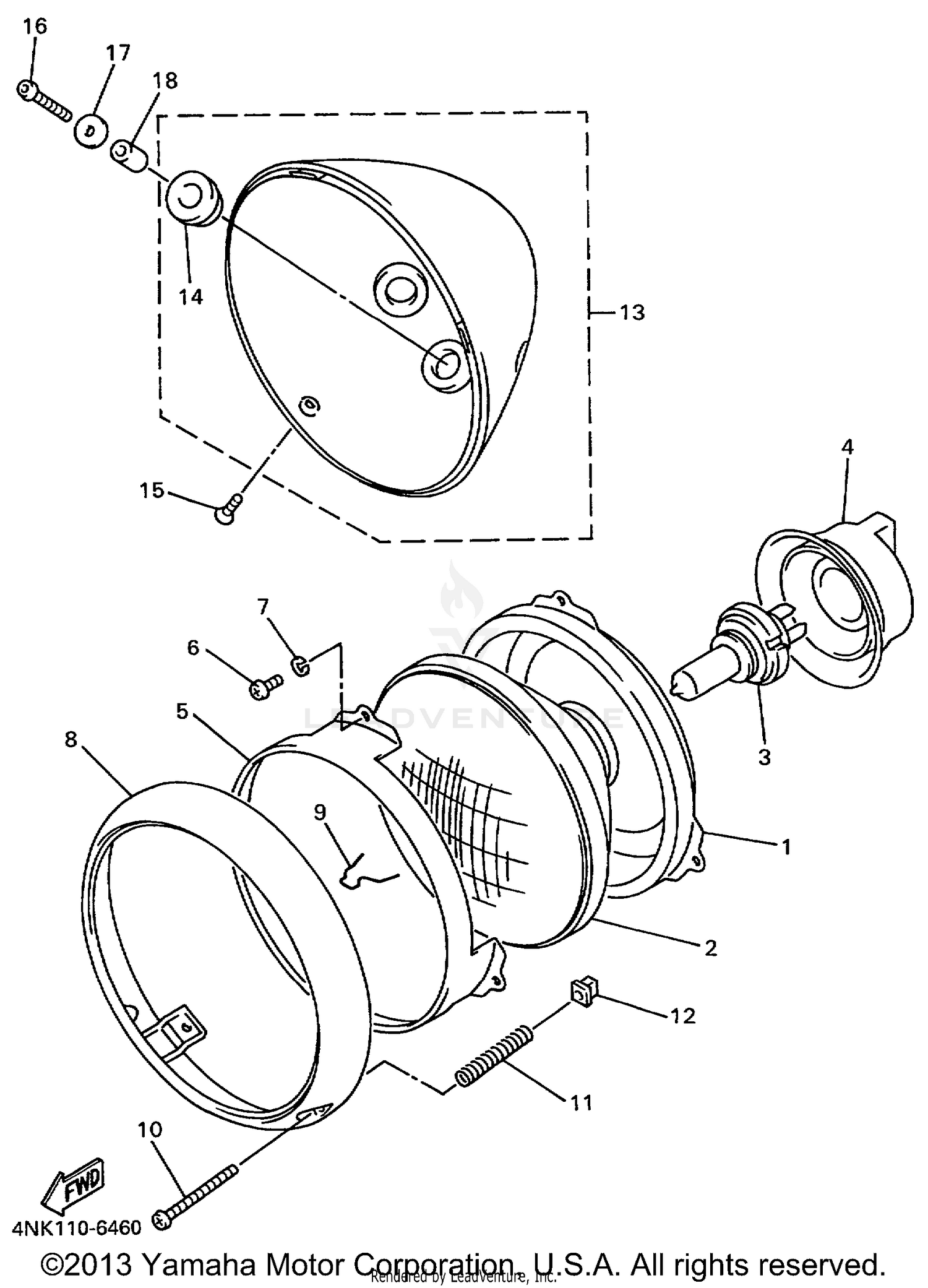

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING, MOUNTING
4NK-84394-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS ASSY
4NK-84320-00-00
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB, HEADLIGHT (12V-60/55W)
5V2-84314-00-XX
Superseded by 8V0-84314-10-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SOCKET
3SX-84397-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, RETAINING
2F9-84395-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98502-04008-00
Superseded by 98580-04008-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
RIM, HEADLIGHT
4NK-84315-00-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, SET
290-84124-21-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, ADJUSTING
341-84331-60-00
Superseded by 90157-04001-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPRING, SCREW
1A0-84332-60-00
Superseded by 447-84332-60-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, ADJUSTING
198-84334-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BODY ASSY
4NK-84330-00-00
Superseded by 5BN-84330-00-00
|
$228.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, HEADLIGHT 1
42X-84366-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, FLAT HEAD
98704-05012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, BUTTON HEAD
92017-06025-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-060A3-00
Superseded by 90201-06086-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-0610J-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
