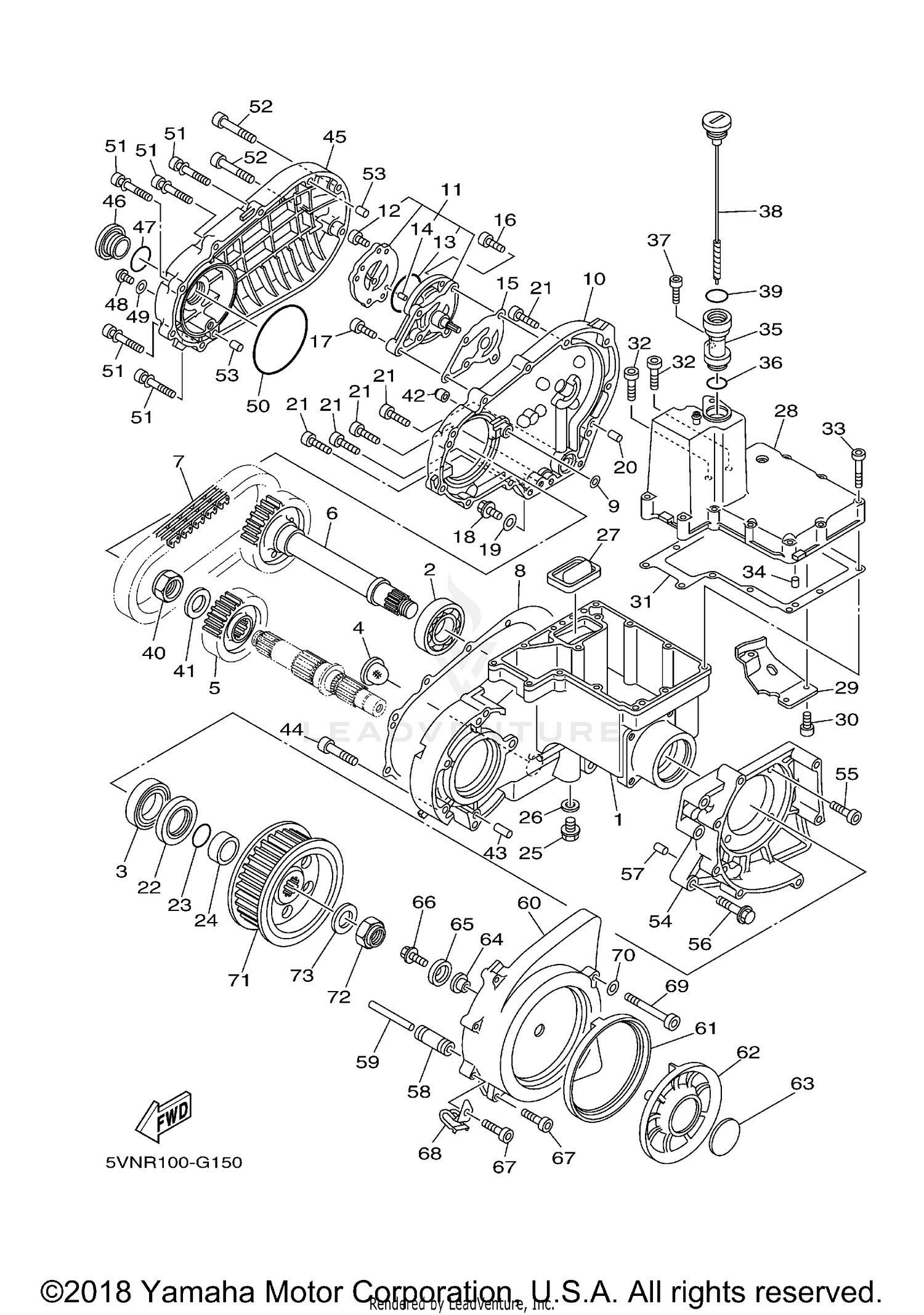

Middle Drive Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, TRANSFER 1
5VN-17541-00-00
|
$824.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-00907-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-20601-00
Superseded by 93306-20627-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLEANER
4WM-13286-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPROCKET, CHAIN DRIVE
4WM-17682-00-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
MIDDLE DRIVEN SHAFT ASSY
5VN-1755A-00-00
|
$624.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAIN, PRIMARY
4WM-16139-00-00
Superseded by 4WM-16139-01-00
|
$313.99 | ||
|
Unavailable |
|||
|
#8
GASKET 1
5PX-17929-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET 2
4WM-17931-00-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CASE, TRANSFER 2
5PX-17542-00-00
|
$423.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL PUMP ASSY
5PX-13100-00-00
|
$311.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90110-06168-00
Superseded by 91312-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93210-48214-00
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL
93603-07073-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, PUMP CASE
4WM-13116-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90110-06047-00
Superseded by 90110-06138-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90110-06039-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE
95814-08016-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
GASKET
90430-08119-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL
99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93102-40330-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-27672-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-304K7-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUG, STRAIGHT SCREW
90340-14132-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET
214-11198-01-00
|
$3.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
STRAINER 2
4WM-13421-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAP
5MB-17631-10-00
|
$307.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE, CAP
4WM-1763A-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
90110-06004-00
Superseded by 91317-06014-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
GASKET, 3
4WM-17932-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
91317-06030-00
Superseded by 90110-06138-00
|
$6.49 | ||
|
Unavailable |
|||
|
#33
BOLT, HEX. SOCKET HEAD
91317-06040-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN, DOWEL
99530-10114-00
|
$2.65 | ||
|
Unavailable |
|||
|
#35
JOINT
5MB-13132-10-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
O-RING
93210-23326-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BOLT, HEXAGON SOCKET HEAD
91317-06025-00
|
$2.65 | ||
|
Unavailable |
|||
|
#38
PLUG, OIL LEVEL
4WM-15362-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
O-RING
93210-27370-00
Superseded by 93210-27778-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
NUT
90179-22006-00
Superseded by 90179-22018-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, CONICAL SPRING
90208-22002-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT
90179-08004-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
PIN, DOWEL
99530-10114-00
|
$2.65 | ||
|
Unavailable |
|||
|
#44
BOLT, HEXAGON SOCKET HEAD
91314-08050-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#45
COVER
4WM-15779-00-00
|
$433.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
PLUG, STRAIGHT SCREW
90340-32140-00
Superseded by 90340-32116-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
O-RING
93210-32172-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
BOLT, BUTTON HEAD
92014-06010-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
GASKET
90430-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
O-RING
93210-92448-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, HEXAGON SOCKET HEAD
90110-06312-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT, HEXAGON SOCKET HEAD
91314-08055-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#53
PIN, DOWEL
99530-10114-00
|
$2.65 | ||
|
Unavailable |
|||
|
#54
STAY
5VN-17613-00-00
|
$198.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT
90110-08155-00
Superseded by 91317-08030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT, FLANGE
95817-10050-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
PIN
99480-10018-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
SLIDER
4WM-17653-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
PIN, DOWEL
93606-76259-00
Superseded by 93606-76002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
COVER
5VN-17076-00-00
|
$280.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
RING, RUBBER
4WM-15449-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
PLATE 1
4WM-17665-01-00
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
PLATE 2
4WM-17675-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
GROMMET
4H7-15486-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
WASHER
90209-06096-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
BOLT, FLANGE
95807-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#67
BOLT, HEXAGON SOCKET HEAD
90110-06140-00
Superseded by 91314-06035-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#68
CLAMP
90462-06003-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#69
BOLT, HEXAGON SOCKET HEAD
90110-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
WASHER, PLATE
90201-08035-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#71
PULLEY, BELT
5VN-17651-00-00
|
$332.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
NUT
90179-22006-00
Superseded by 90179-22018-00
|
$31.99 | ||
|
Unavailable |
|||
|
#73
WASHER, CONICAL SPRING
90208-22002-00
|
$22.99 | ||
|
Unavailable |
|||
