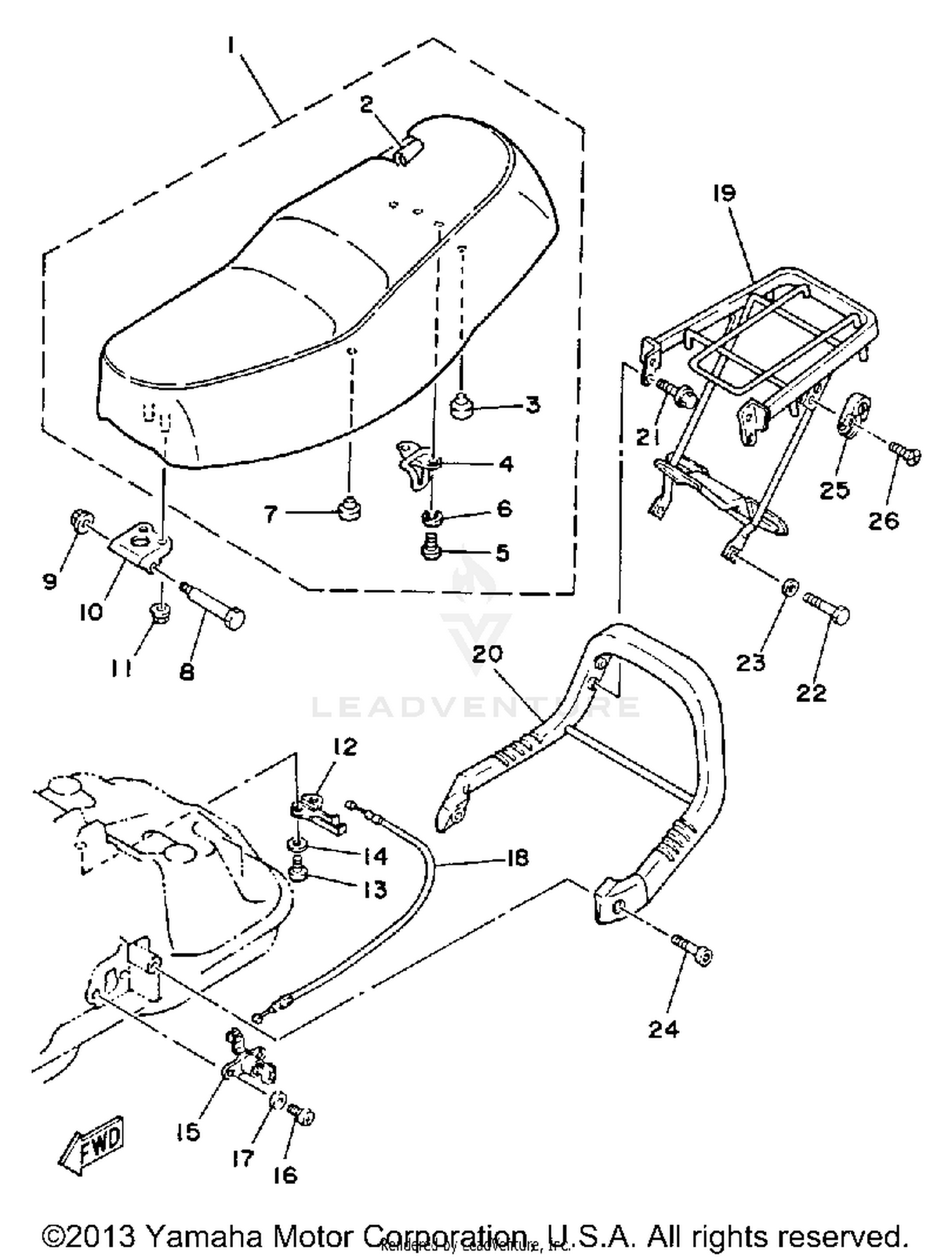

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSY
3EK-24730-30-00
|
$448.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SEAT
50M-24731-30-00
|
$171.99 | ||
|
Unavailable |
|||
|
#3
DAMPER, SEAT
4G0-24723-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#4
BRACKET, SEAT
50W-24728-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
PAD, SEAT
1L9-24741-00-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT
90109-06504-00
|
$5.49 | ||
|
Unavailable |
|||
|
#9
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
HINGE, SEAT
2T4-24726-10-00
|
$11.99 | ||
|
Unavailable |
|||
|
#11
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
Unavailable |
|||
|
#12
SEAT LOCK ASSY
50W-W247E-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SEAT LOCK ASSY
3CK-W2470-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$9.49 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Unavailable |
|||
|
#18
WIRE, SEAT HOOK
50W-2478E-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#19
CARRIER, REAR
50M-24842-00-00
|
$143.99 | ||
|
Unavailable |
|||
|
#20
STAY, REAR
50W-24819-00-00
|
$319.99 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
95811-06010-00
Superseded by 95812-06010-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, HEX. SOCKET HEAD
91316-08050-00
Superseded by 91317-08050-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HELMET HANGER ASSY
55E-21308-00-00
Superseded by 5H0-21308-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, FLAT HEAD
98701-06016-00
Superseded by 98704-06016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
