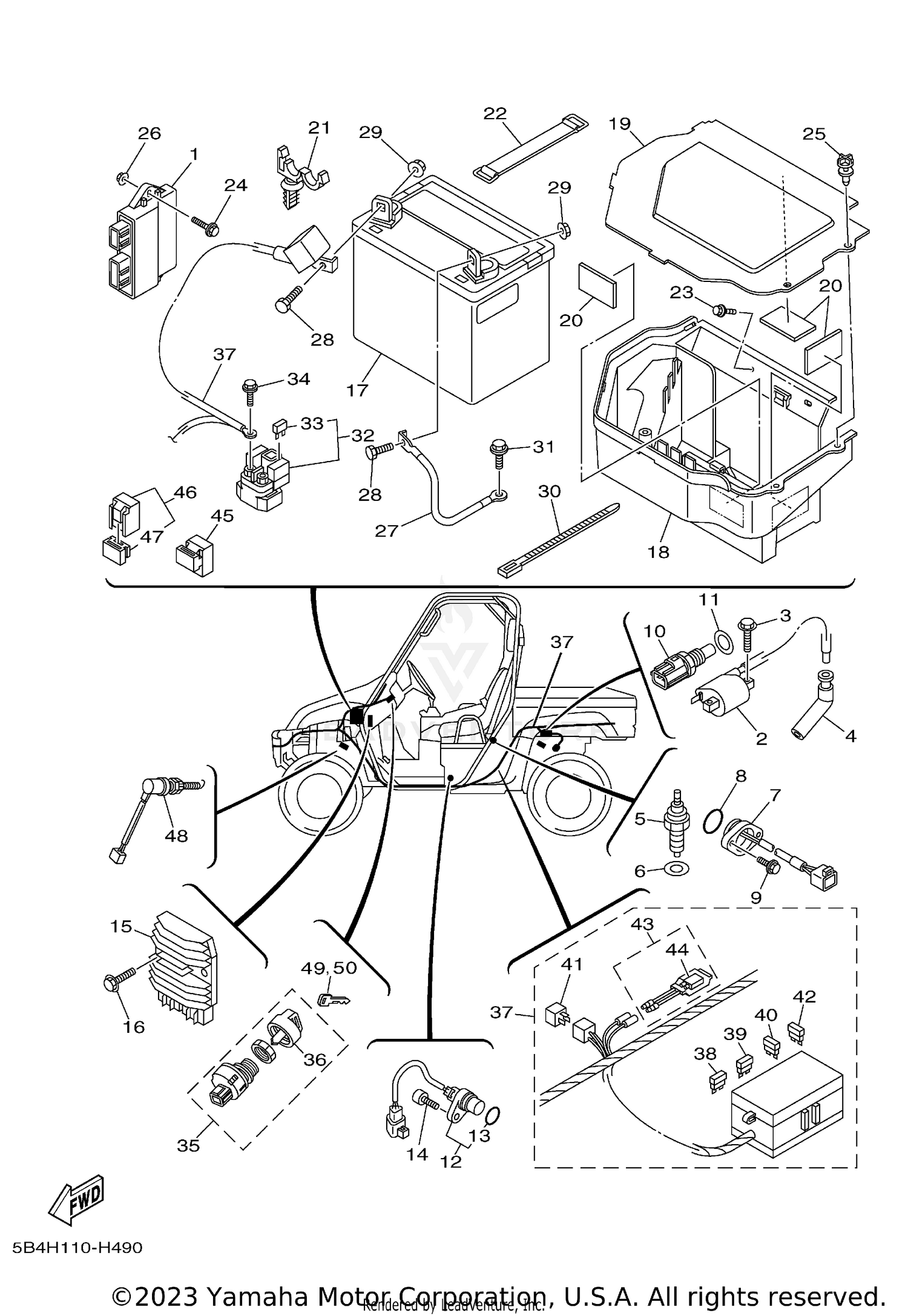

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CONTROL UNIT ASSY
5B4-8591A-01-00
|
$1,320.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
IGNITION COIL ASSY
5YU-82310-10-00
Superseded by 5YU-H2310-14-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON DEEP R
97002-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG CAP ASSY
5B4-82370-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NEUTRAL SWITCH ASSY
3B4-82540-01-00
Superseded by 3B4-82540-03-00
|
$82.99 | ||
|
Unavailable |
|||
|
#8
O-RING
93210-29196-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-06137-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
THERMOSENSOR ASSY
8CC-85790-01-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-12202-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR, SPEED
3B4-83755-00-00
Superseded by 3B4-83755-01-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
4D9-81168-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
RECTIFIER & REGULATOR ASSY
1D7-81960-00-00
Superseded by 1D7-81960-01-00
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06833-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
BATTERY ASSY (GS U1L-11)
5UG-H2100-00-00
Superseded by 11U-1LD00-00-00
|
$139.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOX, BATTERY 1
5B4-H212B-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, BATTERY
5B4-H2129-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER, SIDE COVER
4XE-F4145-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90464-12830-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, BATTERY
3L8-82131-01-00
Superseded by 22F-82131-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SPECIAL 1
90119-06868-00
Superseded by JW1-K6179-01-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE
95812-06025-00
Superseded by 95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#25
RIVET
5UG-F3483-00-00
Superseded by 5UG-F3483-01-00
|
$3.99 | ||
|
Unavailable |
|||
|
#26
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WIRE, MINUS LEAD
5B4-H2116-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
97080-08020-00
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
90179-08015-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-31827-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95822-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
STARTER RELAY ASSY (RC19-080A)
5B4-81940-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
FUSE (10A-BL)
42X-82151-00-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BOLT, FLANGE
95022-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
MAIN SWITCH ASSY
5UG-H2510-00-00
Superseded by 1XD-H2510-11-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CAP, KEY
5UG-H2579-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
WIRE HARNESS ASSY
5B4-82590-20-00
|
$1,048.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#39
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#40
SLOW BLOW FUSE
5PS-82151-00-00
Superseded by JR9-82151-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
DIODE ASSY
4WA-81980-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
FUSE (25A-BL)
5JJ-82151-70-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
CIRCUIT BREAKER ASSY
5B4-82180-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
THERMO SWITCH ASSY
5B4-82560-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
RELAY ASSY (G8HN-1C4T-DJ-Y52)
5DM-81950-00-00
Superseded by 5DM-81950-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
RELAY ASSY (5EA-02)
5EA-81950-20-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
HOLDER, RELAY
5EA-81952-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
STOP SWITCH ASSY
4KB-82530-10-00
Superseded by 4KB-82530-11-00
|
$56.99 | ||
|
Unavailable |
|||
|
#49
ATV KEY BLANK (TYPE-A)
90890-56001-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
ATV KEY BLANK (TYPE-B)
90890-56002-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
