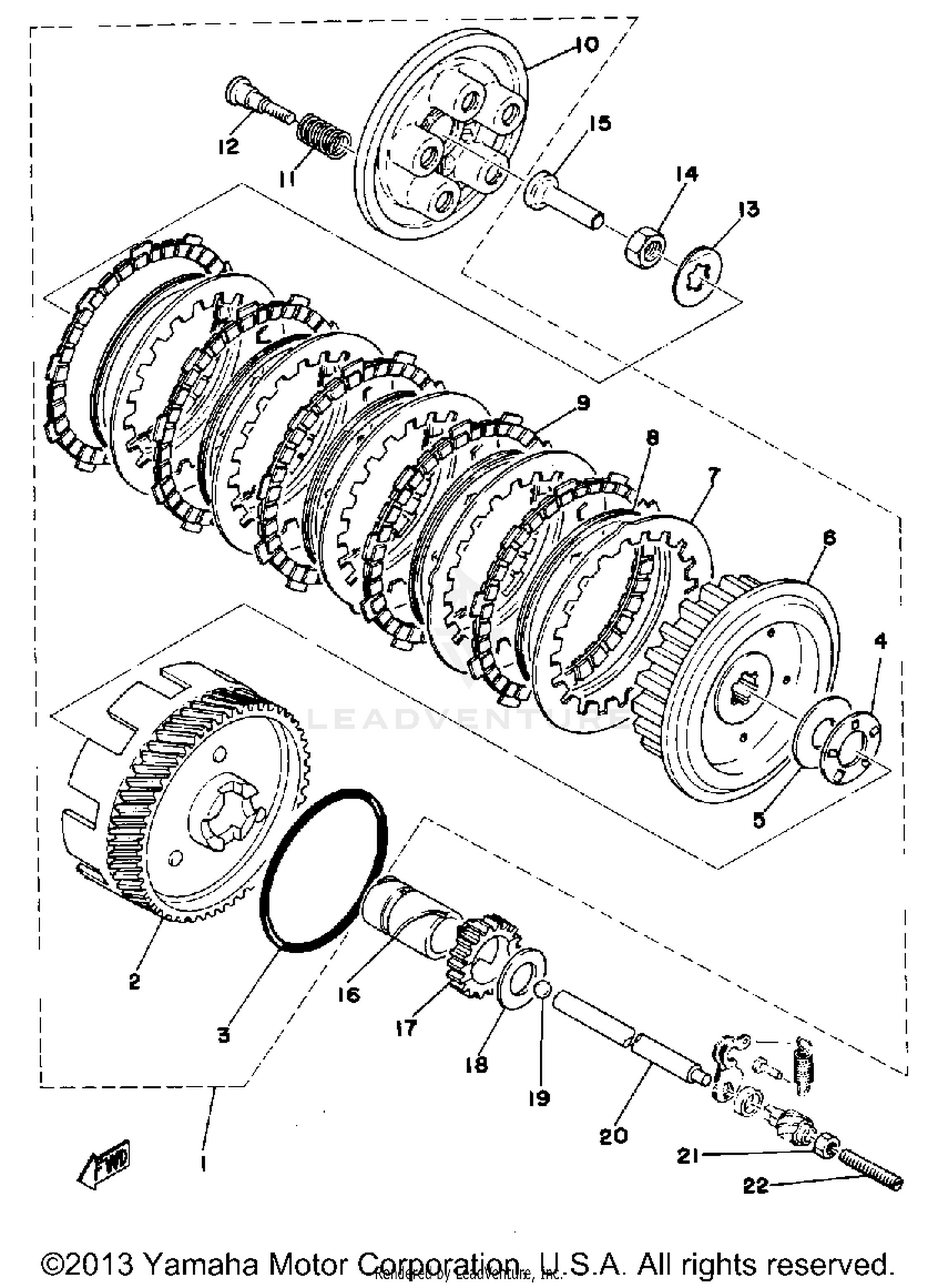

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
17-41630-16-00
|
|||
|
Unavailable |
|||
|
#2
UNAVAILABLE IN PRICE BOOK
17-41610-50-10
|
|||
|
Unavailable |
|||
|
#3
O-RING
93210-85075-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BEARING, FLAT #41
93341-22603-00
|
$14.49 | ||
|
Unavailable |
|||
|
#5
PLATE, THRUST 1
174-16154-00-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOSS, CLUTCH
174-16371-01-00
|
$75.99 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH 1
336-16324-00-00
Superseded by 336-16324-10-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, CUSHION
137-16367-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, FRICTION
132-16321-01-00
Superseded by 3HA-16321-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, PRESSURE 1
132-16351-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-20122-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, SPECL SHAPE
90149-05147-00
|
$1.10 | ||
|
Unavailable |
|||
|
#13
WASHER, LOCK
90215-16020-00
Superseded by 90215-16127-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90179-16018-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
ROD, PUSH 1
174-16356-00-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
COLLAR (174-16181-00)
90387-20439-00
|
$22.99 | ||
|
Unavailable |
|||
|
#17
GEAR, KICK PINION
251-15631-01-00
|
$40.99 | ||
|
Unavailable |
|||
|
#18
PLATE, THRUST 2
174-16164-00-00
|
$4.10 | ||
|
Unavailable |
|||
|
#19
BALL
93505-16006-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
ROD, PUSH 2
237-16357-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#21
NUT
95380-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SET
90113-06013-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
