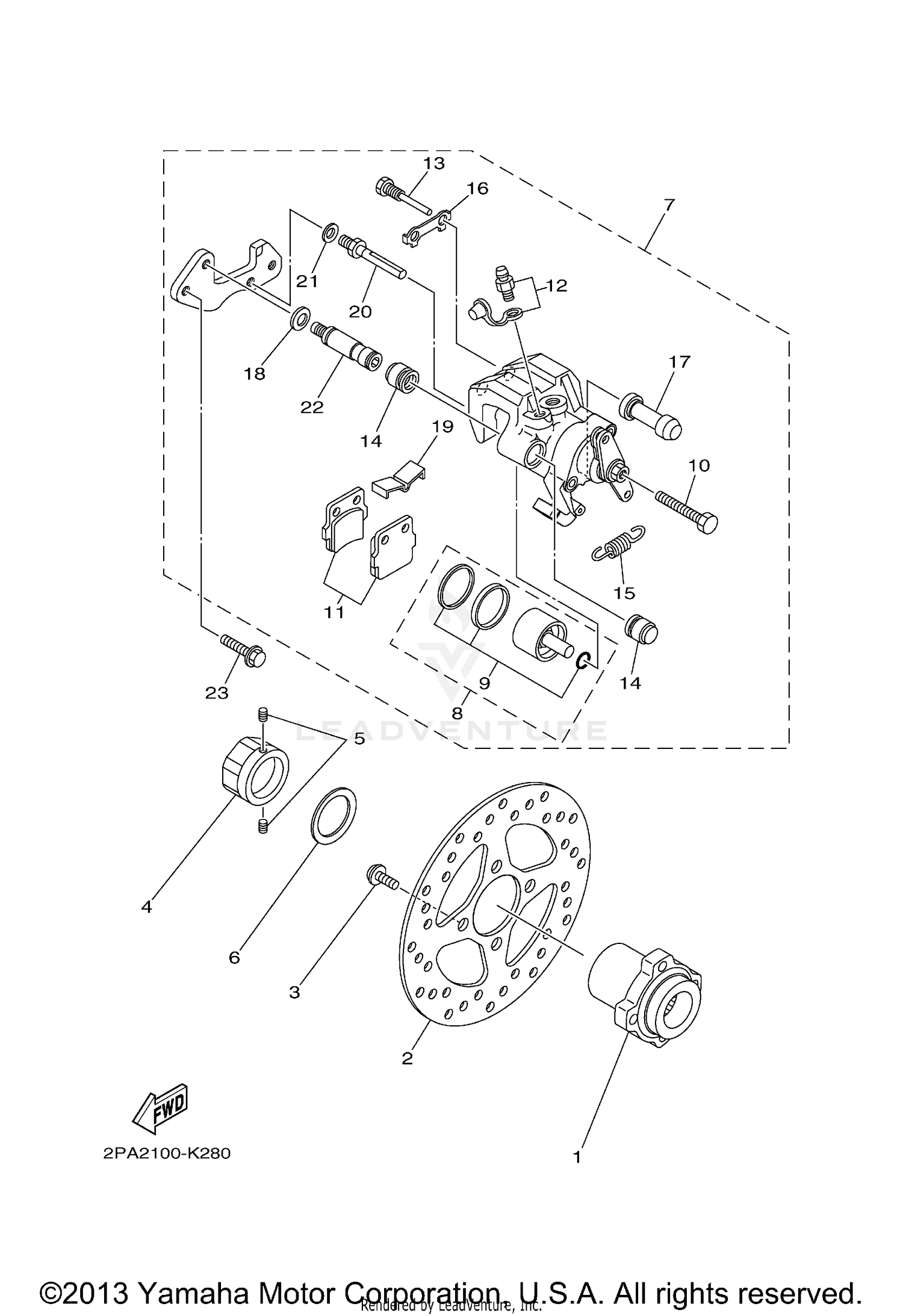

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, DISC
5YT-25712-00-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DISK, REAR BRAKE 2
4D3-2582W-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,HEX. SOCKET BUT
90109-081F0-00
Superseded by 90111-08053-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90170-33010-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SET
90113-06055-00
Superseded by 90113-06039-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, CONICAL SPRING
90208-34001-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CALIPER ASSY, REAR 2
5YT-2580W-10-00
|
$493.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON ASSY, CALIPER
5LP-W0057-50-00
Superseded by 1UY-W0057-50-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CALIPER SEAL KIT
5LP-W0047-50-00
Superseded by 1UY-W0047-50-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ADJUST BOLT
1UY-25972-51-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PLATE, ANSI SVIA
4D3-W0046-50-00
Superseded by 4D3-W0046-51-00
|
$50.99 | ||
|
Unavailable |
|||
|
#12
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, PAD
1UY-25924-51-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOOT, CALIPER
1UY-25917-51-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, RETURN
5YT-25977-50-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PAD PIN
1UY-25933-51-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT 2
1UY-25937-51-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SPRING, PAD
1UY-25934-51-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SUPPORT, PAD
1UY-25919-51-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
1UY-25926-51-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
1UY-25938-51-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PIN, SLIDE
1UY-25914-51-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
90105-08183-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
