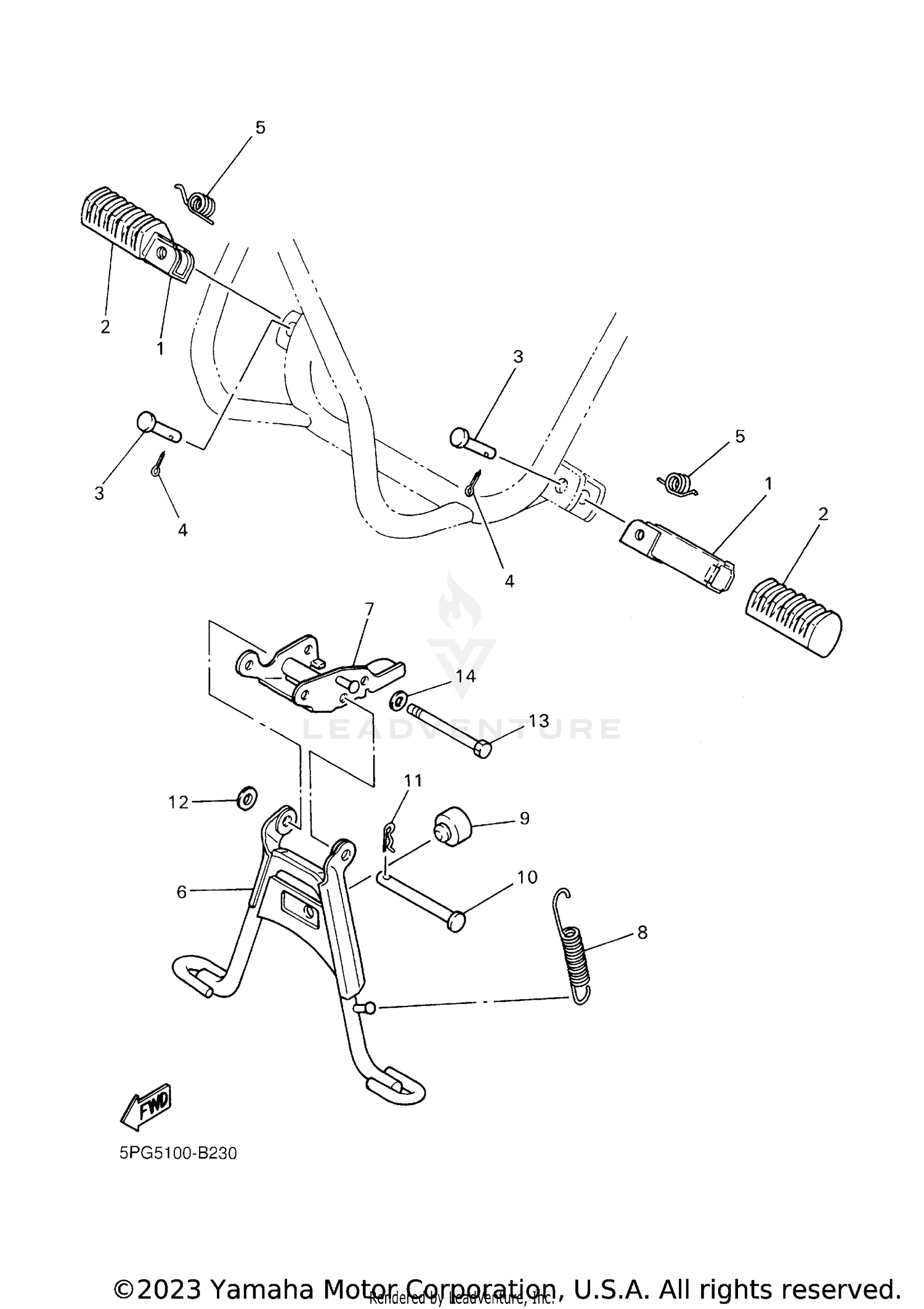

Stand & Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOOTREST 2
214-27421-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, FOOTREST
4X4-27413-00-00
|
$25.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PIN
90240-08084-00
Superseded by 91701-08038-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-20023-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAND, MAIN
4X4-27111-00-33
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, MAIN STAND
3L5-27151-02-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-29052-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
STOPPER, MAIN STAND
4X4-27114-00-00
Superseded by 116-27114-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, CLEVIS
91701-08078-00
Superseded by 90240-08121-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
90468-12006-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER, PLATE
92907-08600-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, HEX. SOCKET HEAD
91317-06070-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
