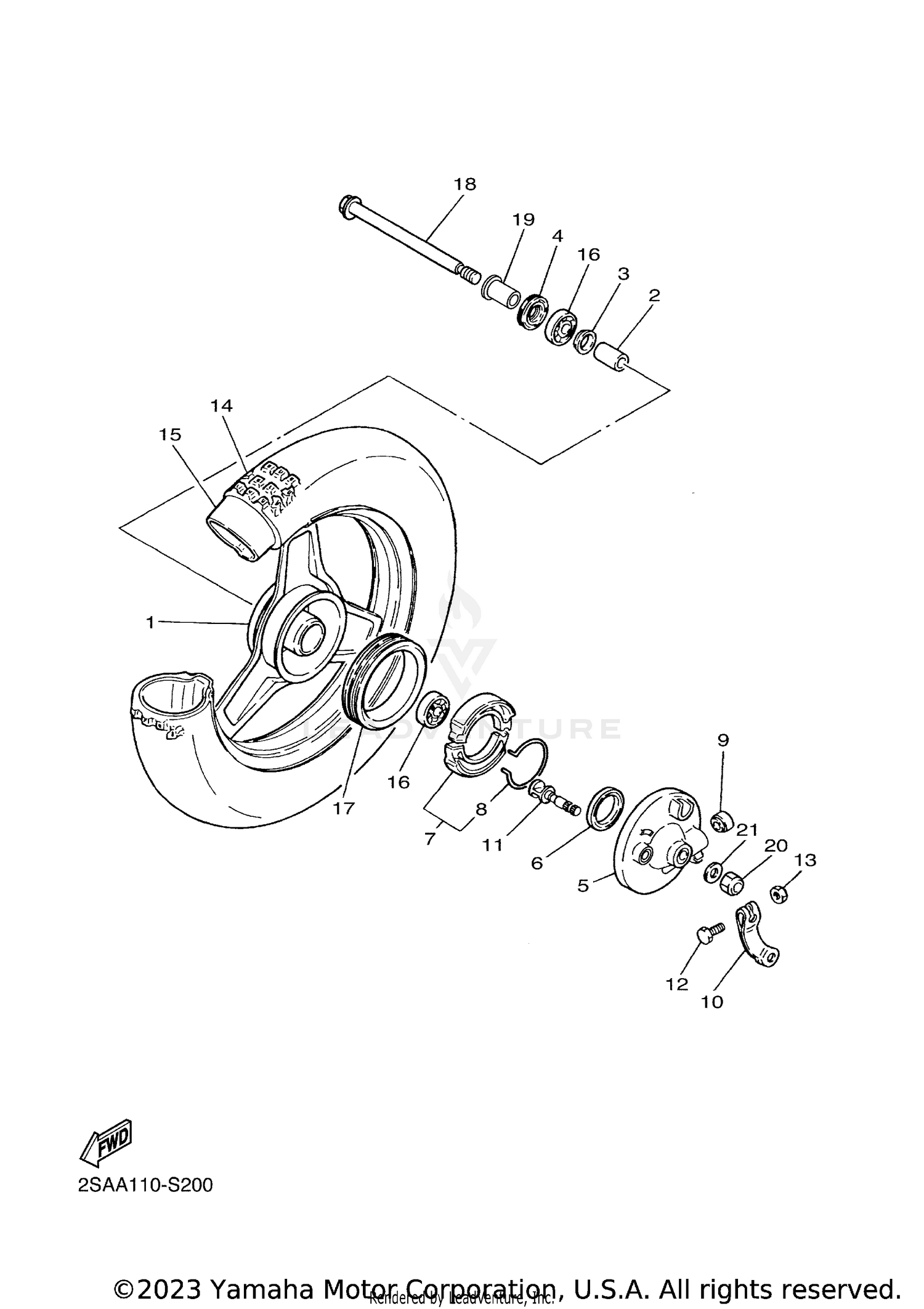

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL COMP.
5M0-25180-00-P1
Superseded by 5M0-25180-01-P1
|
$267.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER
90560-10173-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER 2
2E9-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-17015-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, BRAKE SHOE
2SA-25121-01-98
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93109-34057-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRAKE SHOE KIT
3PT-W253A-10-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, RETURN
2E9-25133-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, TAPER
90336-15033-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, CAMSHAFT 1
2T4-25155-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAMSHAFT
2E9-25151-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97007-05020-00
Superseded by 97027-05020-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT
95307-05600-00
Superseded by 95317-05600-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
TIRE (BRIDGESTONE 2.50-10 4PM29
94125-10651-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
TIRE (INOUE 2.50-10)
94125-10650-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE (2.50/2.75-10)
94225-10172-00
Superseded by 94225-10270-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE (INOUE 2.50/2.75-10)
94225-10270-00
|
$31.99 | ||
|
Unavailable |
|||
|
#16
BEARING
93306-20006-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING 1
2T4-25185-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-10300-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-10112-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SELF-LOCKING
90185-10091-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92903-10200-00
Superseded by 92990-10200-00
|
$3.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
